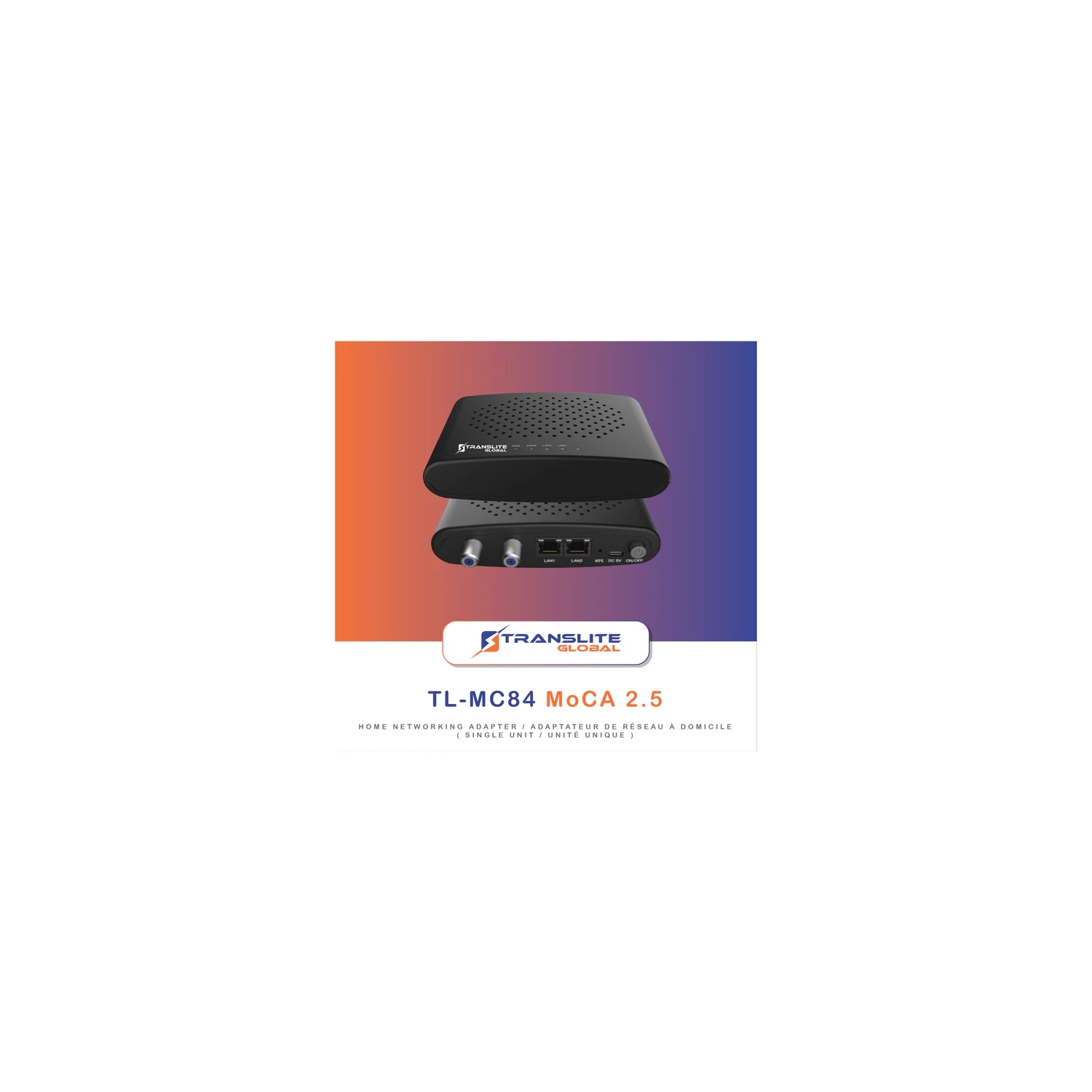

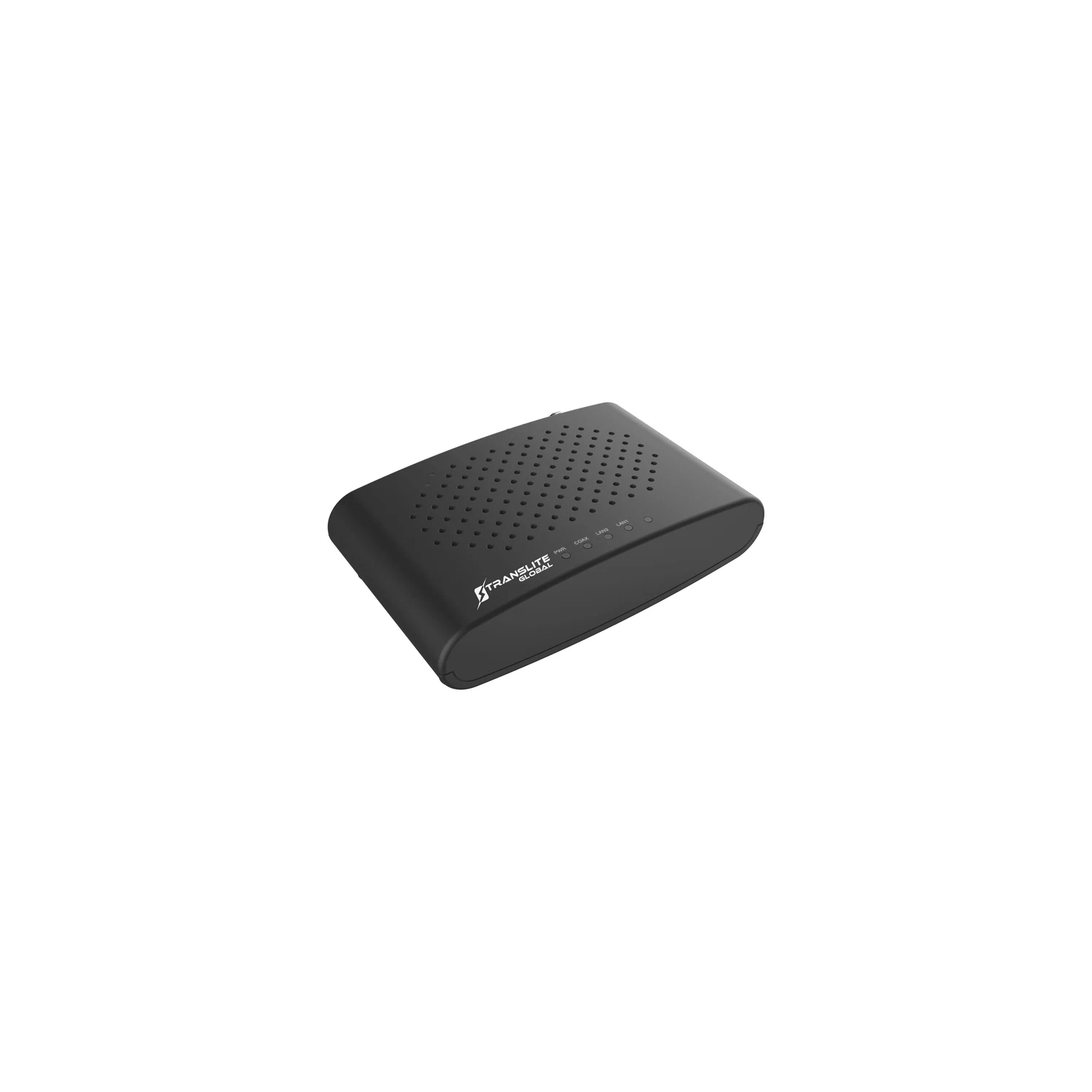

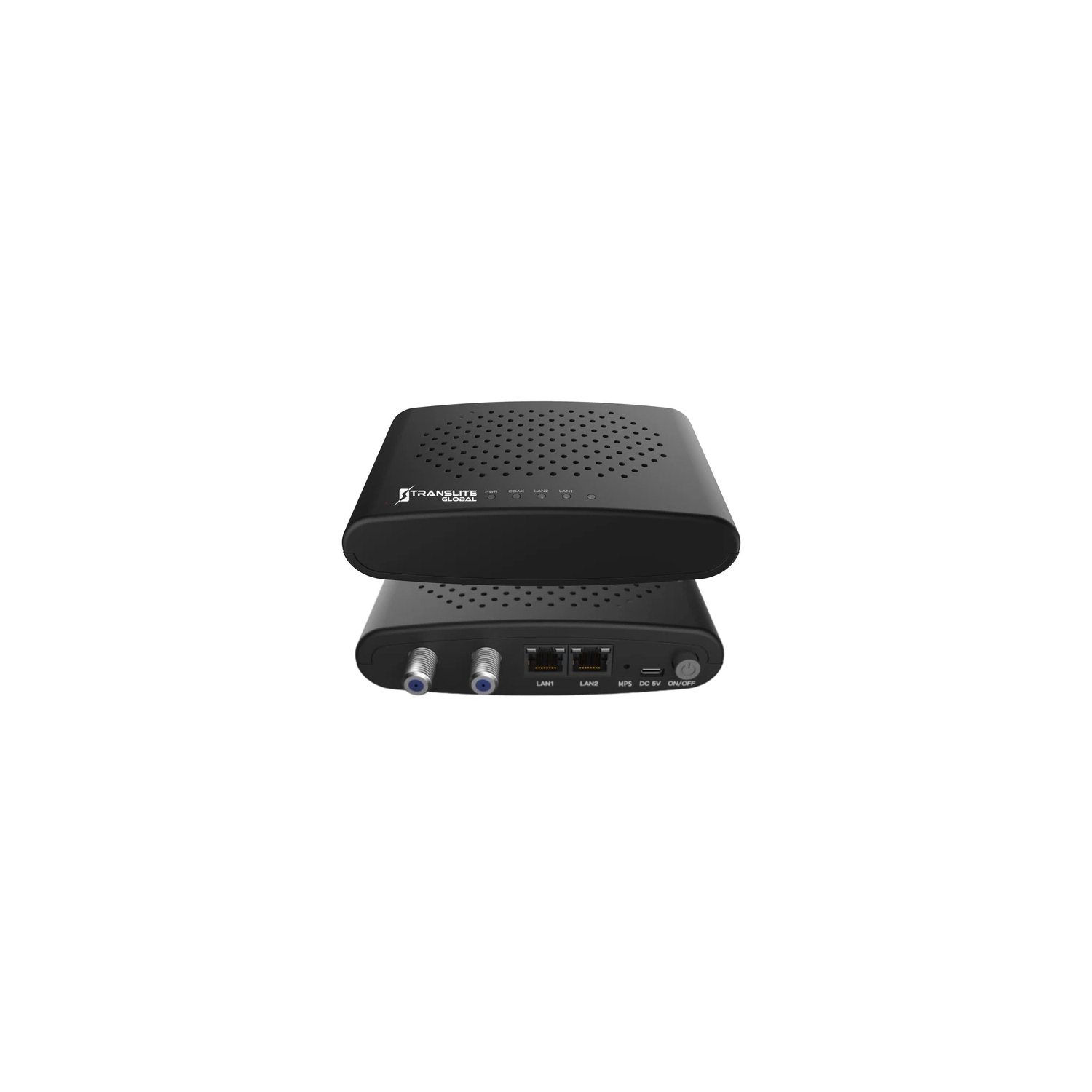

Translite Global MoCA 2.5 Ethernet Over Coaxial Network Adapter with 2 Gigabit Ethernet Ports - Black

Benefits

• Latest designed MoCA protected setup (MPS) allows one press pairing for the home network install. It makes the self installation for end user to setup the network easily, and also isolate the home connection from the neighborhood

• It supports up to 3.0 Gbps throughput with low packet loss rate and low latency

• It works at high frequency range (Frequency range is between 1125~1675 MHz)

• Link layer adopts TDMA protocol, MP2MP structure so each device can communicate with any other one (All the adapters adopt the same TDD)

• Physical layer adopts advanced ACMT mode that is OFDMA, which makes it to get strong interference proof capability by avoiding high noise at lower frequency

• It supports remote monitoring and management through TR 069 protocol, enabling operators accessing into user’s in-home network from headend, helps troubleshoot and customer QoE

Technical Specifications

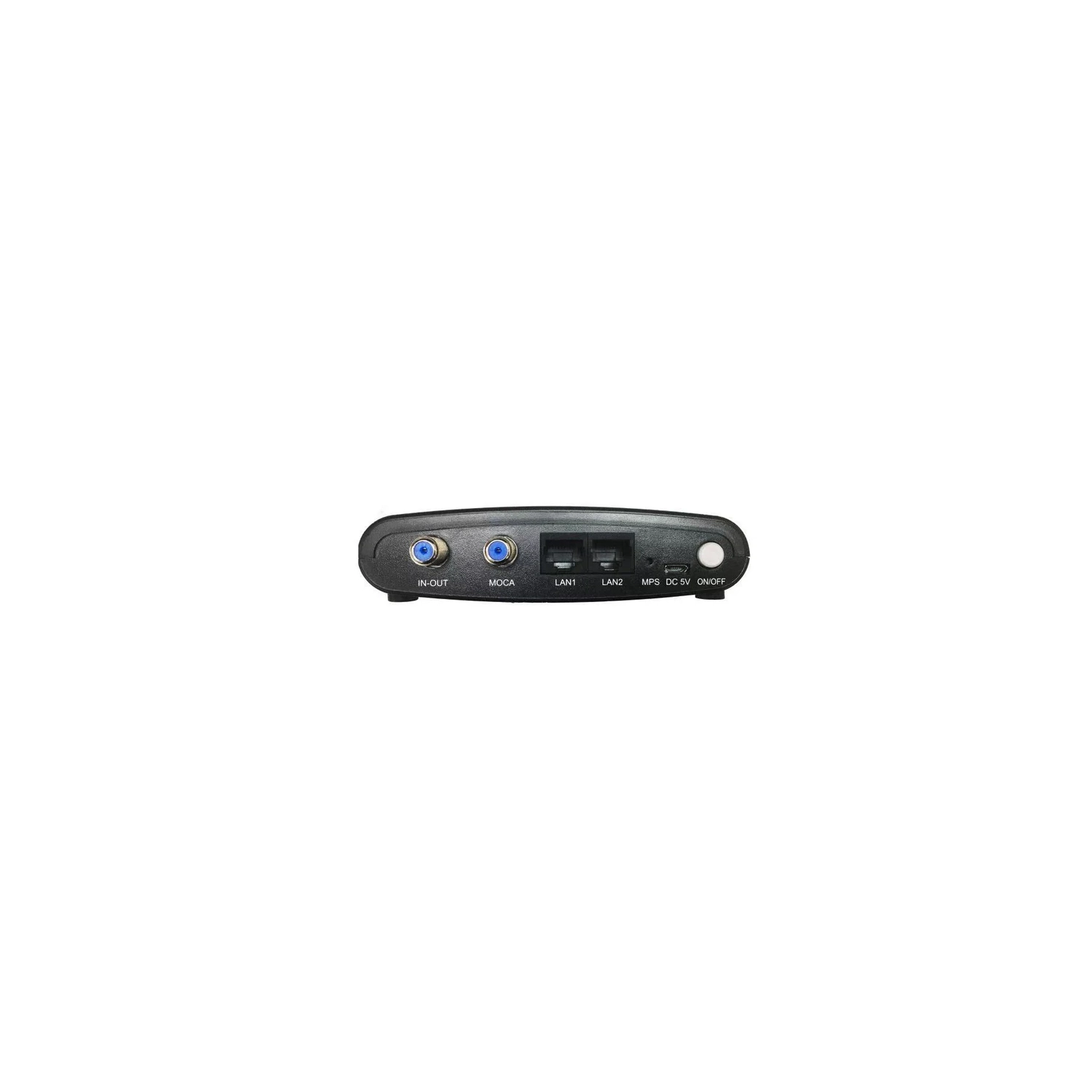

• Ethernet Ports: 2 x RJ45, 1000BASE-TX

• Maximum PHY Rate: 3.6Gbps

• Standard Channel: 1125 ~ 1625MHz

• Cable in-Port Frequency: 5 ~ 1675MHz

• MoCA Port Frequency: 1125 ~ 1675MHz

• TV Out Port Frequency: 5 ~ 1002MHz

• Maximum Nodes: 16

• Transmitting Distance: 300ft (91m)

• Backward Interoperable with MoCA 2.0 and MoCA 1.1
