ASUS Micro-ATX AM4 Motherboards

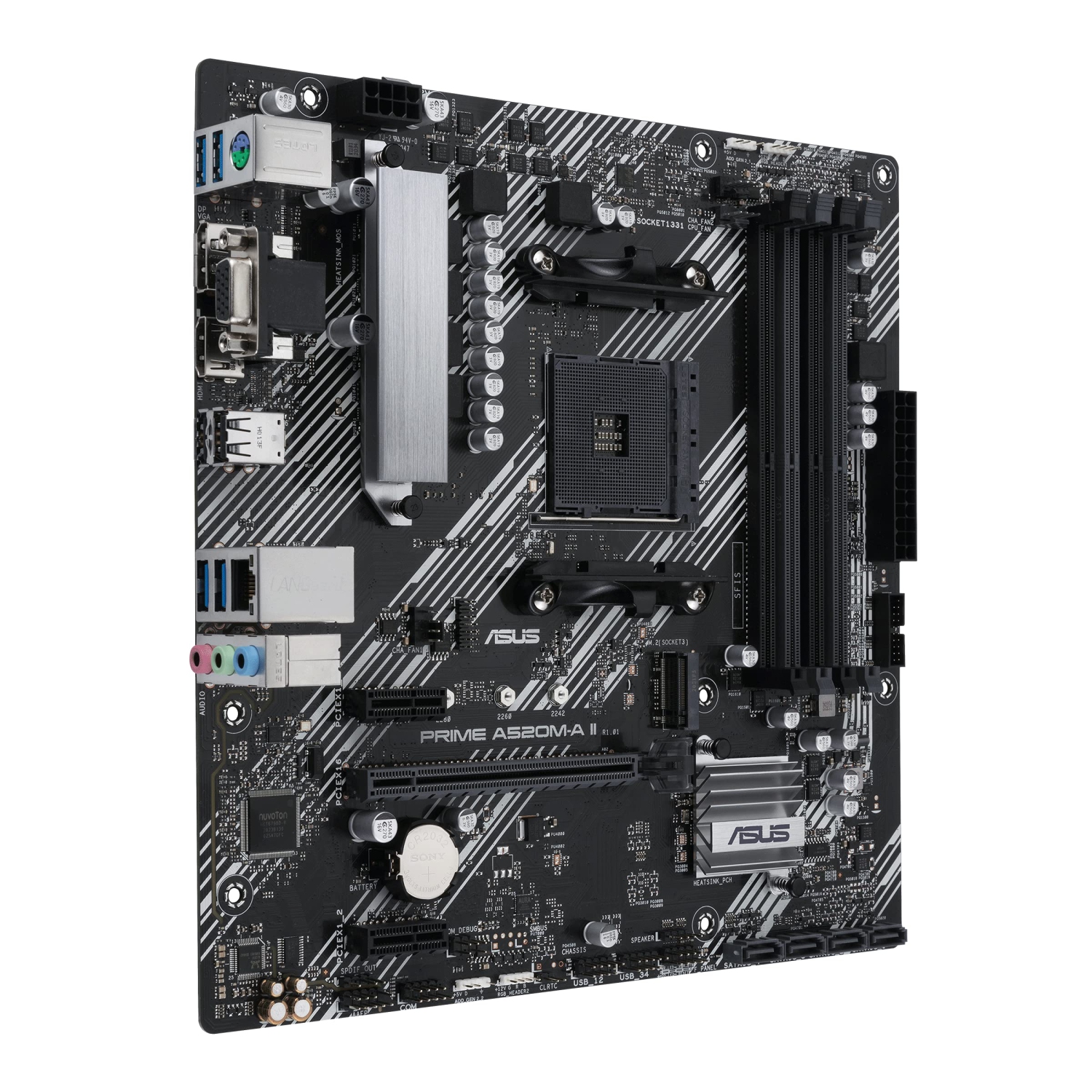

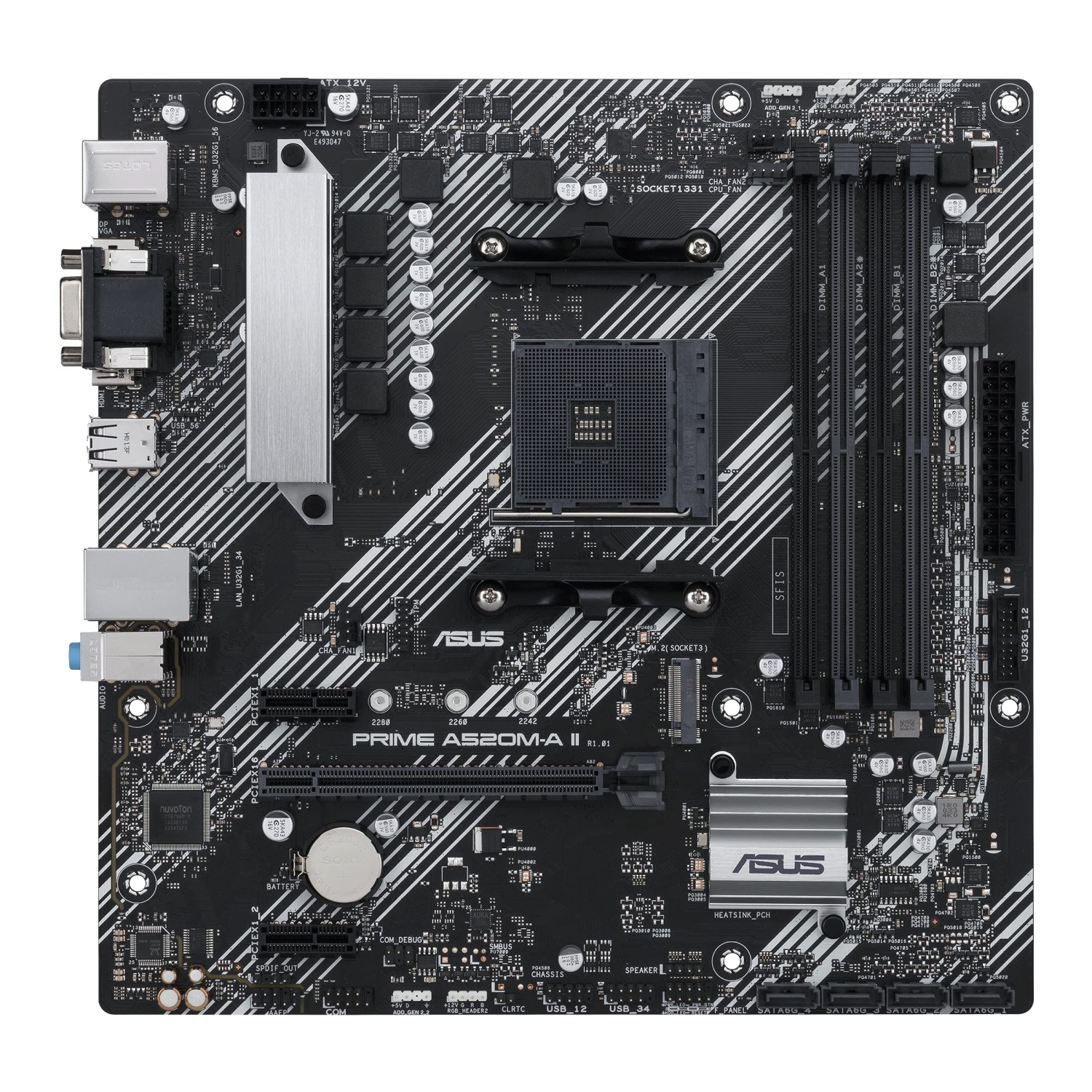

ASUS Micro-ATX AM4 Motherboards (PRIME A520M-A II/CSM)

Brand: ASUS
Model: PRIME A520M-A II/CSM
Web Code: 15688922
Sold and shipped by | 3.5 seller rating (580 reviews)

Sale ends: *

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Overview

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.
GeneralInterface-Warranty

Warranty

No information available.

Seller Return Policy

Read return policy

What's included:

  • 2 x SATA 6Gb/s cables
  • 1 x I/O Shield
  • 1 x M.2 SSD screw package
  • 1 x Support DVD
  • 1 x User manual

• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+

• Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A

• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

• ASUS Control Center Express (ACCE) for easier IT endpoint management

ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Cool to the Core

PRIME A520M-A II is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs for better cooling performance.

Build on a Solid Foundation

Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

PCIe 3.0 M.2

(up to 32 Gbps)

Achieve speed with onboard M.2

M.2 slot supports up to 2280 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

Little Things Make a Big Difference

Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks

Ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Product Condition
Brand New
Motherboard Form Factor
Micro-ATX
CPU Socket Type
AM4
Processors Supported
AMD Ryzen 5000; AMD Ryzen 5000 G; AMD Ryzen 4000 G; AMD Ryzen 3000
Supported Processor Chipset Make
AMD
Video Chipset
AMD A520
Video Chipset
AMD A520
Memory Channel Architecture
Dual Channel
Computer RAM Type
DDR4
Memory Supported
4800 MHz DDR4, 4600 MHz DDR4, 4466 MHz DDR4, 4400 MHz DDR4, 4266 MHz DDR4, 4133 MHz DDR4, 4000 MHz DDR4, 3866 MHz DDR4, 3733 MHz DDR4, 3600 MHz DDR4, 3466 MHz DDR4, 3333 MHz DDR4, 3200 MHz DDR4, 3000 MHz DDR4, 2800 MHz DDR4, 2666 MHz DDR4, 2400 MHz DDR4, 2133 MHz DDR4
M.2 Slot
1
PCIe Generation
PCIe 3.0
PCI Express X1 Slots
2
PCI Express X4 Slots
1
PCI Express X16 Slots
1
Ethernet Port
1
USB 2.0 Ports
4
HDMI Port
1
Other Audio Ports
3 x Audio jacks; 1 x S/PDIF Out header
