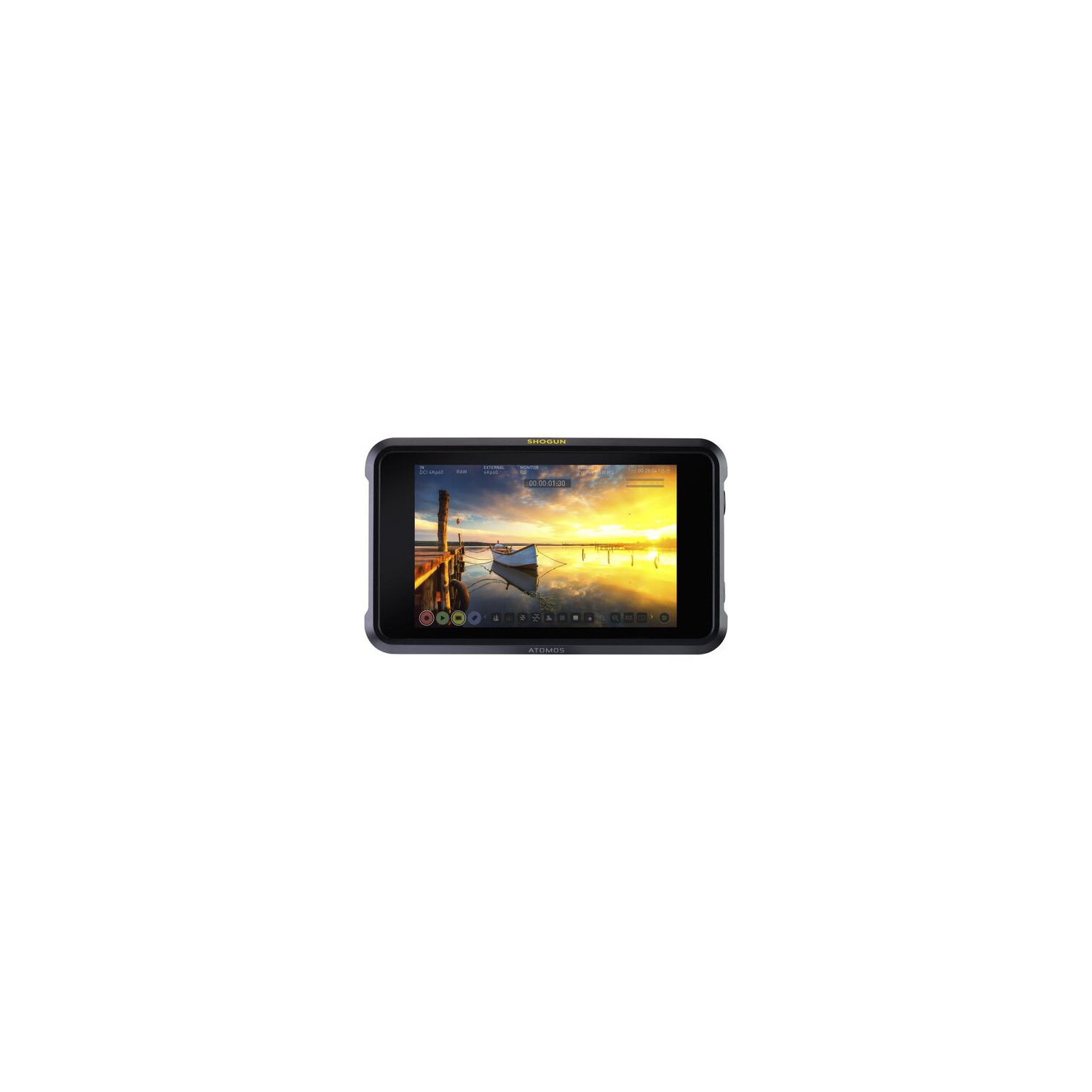

Atomos 7 inch SHOGUN Monitor-Recorder

·AtomOS 11, 12G-SDI/HDMI Conversion

·

·7" 1920 x 1080Touchscreen

·

·Records up to 6K Apple ProRes Raw

·

·ProRes Raw, H.265 Recording

·

·AirGlu RF Wireless Sync, GigE, 6 Wi-Fi

·

·2000 cd/m² Brightness

·

·AVID DNX QuickTime

·

·Atomos RemoteView via Subscription

·

·NDI HD TX 1-Off Activation

·Panel Type  IPS-Type LCDDisplay Size  7.0" / 17.8 cmResolution  1920 x 1200Aspect Ratio  16:9Touchscreen  YesMaximum Brightness  2000 nits / cd/m2Bit Depth / Color Support  10-Bit (1.07 Billion Colors)HDR Compatibility  HDR10Pixels Per Inch (ppi)  315 ppiColor Gamut  100% DCI-P3

                       100% Rec. 2020Real-Time LUT Monitoring  SDR, HDRImage Controls  Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, ZebraVideo I/O1 x HDMI 2.0 Input

1 x BNC (12G-SDI) Input

1 x HDMI 2.0 Output

1 x BNC (12G-SDI) OutputEmbedded Audio  HDMI: 8-Channel

                              SDI: 24-ChannelAudio I/O  1 x 1/8" / 3.5 mm Headphone Output

                 1 x 1/8" / 3.5 mm Input

                 1 x 1/8" / 3.5 mm OutputBuilt-In Speaker  NonePower I/O  1 x Barrel InputOther I/O1 x 2.5 mm (LANC)

1 x USB-C (Serial) Input

1 x RJ45 (Gigabit Ethernet) InputMedia/Memory Card Slot  Single Slot: SSDmini/SSD with Master Caddy II/IIIFile System Support  exFATWi-Fi  Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)  Bluetooth  YesMobile App Compatible  Yes: Android & iOS

                                       App Name: AtomRemote

                                       Functionality: Adjust Settings, Setup

                                        *As of September, 2023: Check with manufacturer for the most up-to-date compatibilityFormat SupportVideo Format  HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)

                        6K Raw: 30

                        4K Raw: 120

                        DCI 4K: 60

                        UHD 4K: 60

                        DCI 2K: 60

                        1080p: 120

                        1080i: 60/50

                        720p: 60Gamma Curve  ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3,                         DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG,                         JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log,                         Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2,                         Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2Video Signal Conversion  HDMI to SDI

                                         SDI to HDMITimecode Support YesRecordingPulldown Conversion  NoneCamera Trigger  SDI, HDMIPre-Roll Record  NoneEncoding Formats  x

                               DNxHD

                               H.265

                               ProResMetadata Tagging  YesPhantom Power  NonePower DC Input Power  6.2 to 16.8 VDCBuilt-In Battery  NoneBattery Type  1 x L-SeriesMounting3 x 1/4"-20 Female

3 x 3/8"-16 FemaleEnvironmental Protection  NoneOperating Temperature  72°F / 40°CMaterial of Construction  Aluminum, PolycarbonateDimensions  7.8 x 5.2 x 1.6" / 198 x 133 x 40 mmWeight  1.6 lb / 730 g
