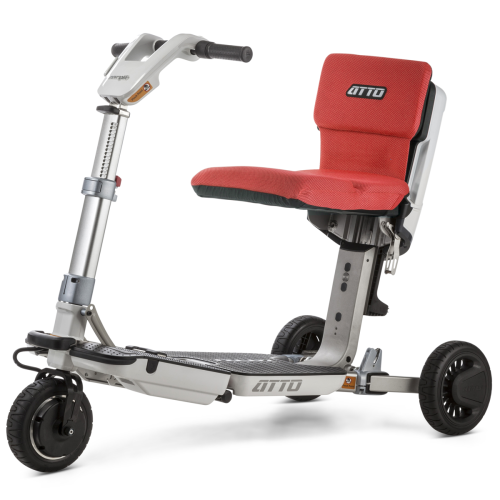

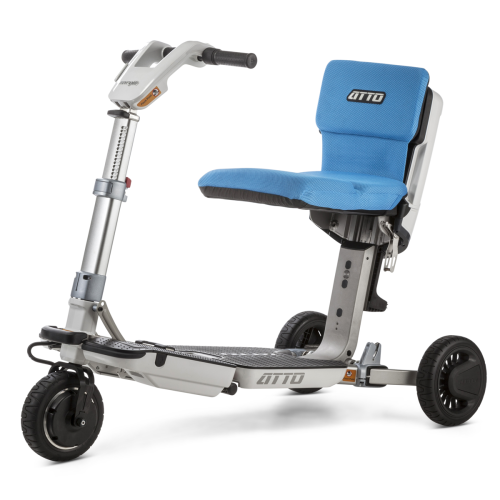

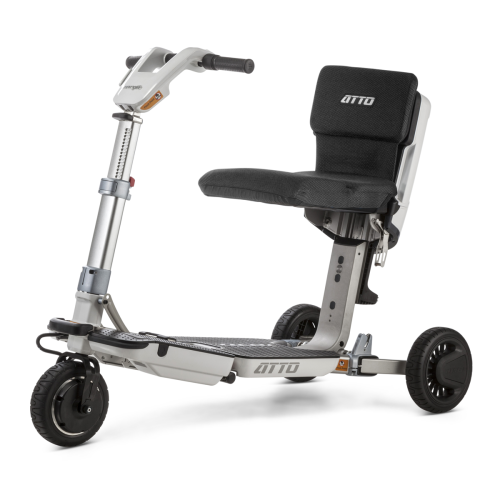

ATTO Mobility Scooter (AT-01-100-B2-0)

Features

• ATTO provides an unbeatable young and high-tech design.

• Fully customized brushless, permanent magnet, DC motor

• 48 Volt lithium-ion battery – 12 mile (20-km) range on a 4- to 5-hour charge

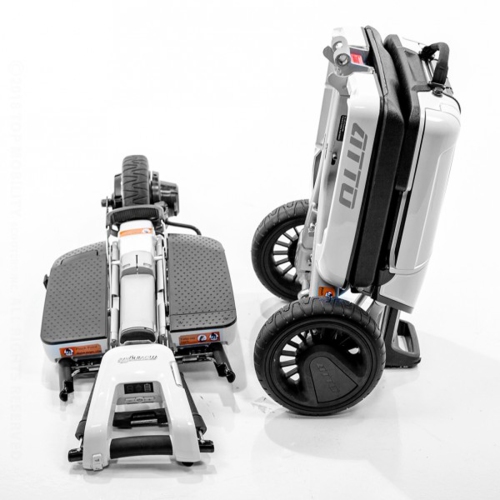

• ATTO can be split into 2 lightweight parts which allows you to lift it with an ease.

• 3 fixed heights ranging 22 to 24 inches (56 to 61 cm) from the ground. with special 4th seat height for kids

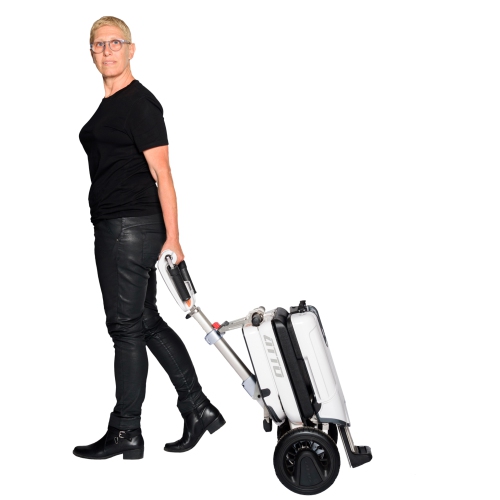

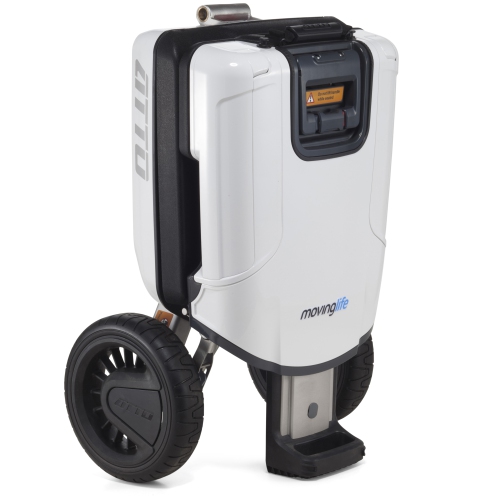

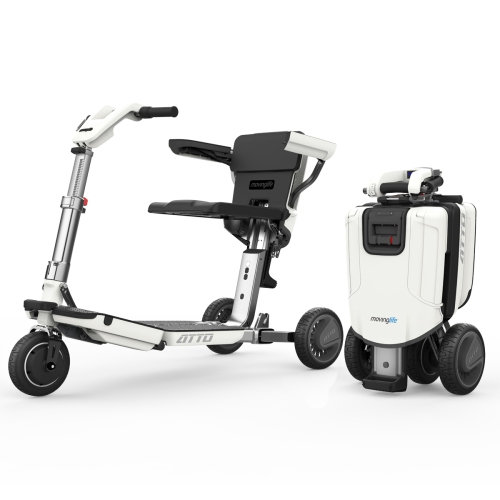

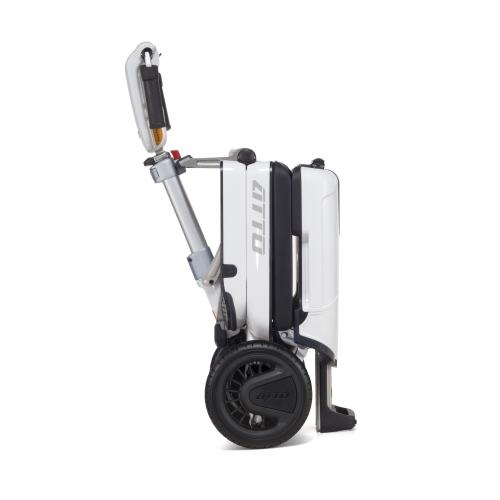

• ATTO can be easily folded into a trolley suitcase which you can carry with you on the train or plane.

Specifications

Weights (not including battery)

• Front half: 26.4 lb (12 Kg)

• Rear half: 35.7 lb (16.2 Kg)

• Assembled: 62.2 lb (28.2 Kg)

• The battery weighs 4.1 lb (1.85 Kg)

Limits

• 6 degrees maximum incline

• 53 inches (135 cm) turning radius

• 4 mph (6.4 km/h) maximum speed

• 265 lb (120 Kg) maximum user weight

• 5 feet (150 cm) minimum user height

Materials

• Aviation-grade aluminum

• High-tech plastics

• Nylon-enforced ABS

• PU filled non-pneumatic tires

Battery

• Safety certification: IEC 62133

• Sea and Air Transport certification: UN 38.3

• 250 W/h capacity

• 48-volt “non-spillable" lithium-Ion battery

• A 4- to 5-hour charge delivers up to 12 miles (19.3 km) of continuous driving on average.

Charger

• UL- and CE-approved

• Self-shutdown functionality

• 110-240V AC

Safety Testing

• Safety: EN12184 Labeling: ISO 7176-15 EMC: ISO 7176-21

• Risk Management: ISO 14971

• Regulatory Compliance: EEC: Annex V of 93/42/EEC
