AT A GLANCE
Lens-Shift Image Stabilization
Field-Flattener Lens System
Super Spectra Multi-Coated Optics
Normal and Powered IS Modes
Simple 2-Button User Interface
Large Center Focusing Wheel
Fold-Down Rubber Eyecups
Runs on Two AA Batteries

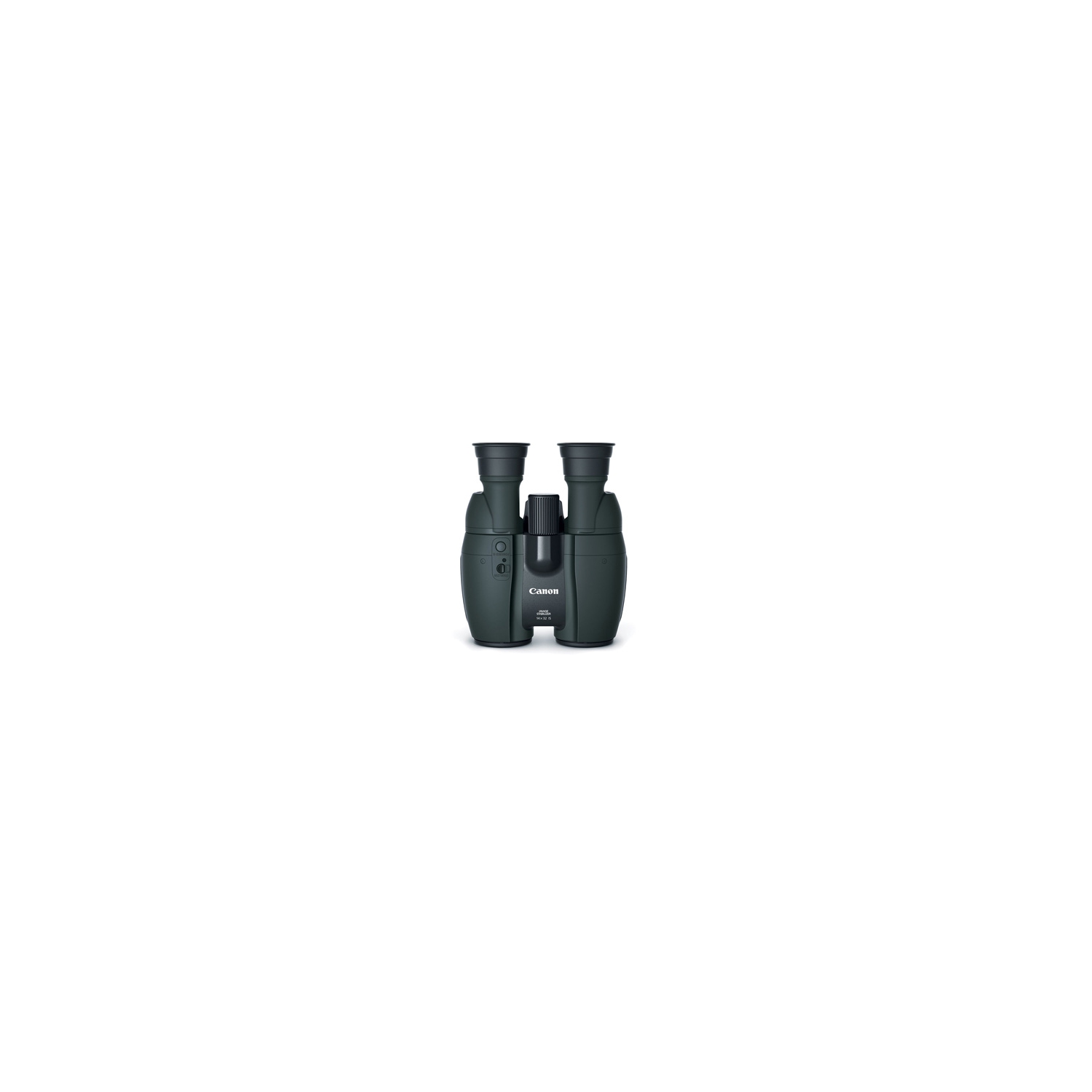

Weight: 27.3-ouncesDESCRIPTIONAdapting the IS system from their line of EF lenses, the Canon 14x32 IS Image Stabilized Binocular employs a lens-shift system uses a combination of a vibration gyro-mechanism and microprocessors that detect and counter the appearance of hand-shake by moving the internal lens assembly to make the image appear steady. High-magnification optics, such as this, are extremely prone to the appearance of visible hand-shake, which interferes with clear and immersive views. Through the use of image stabilization, users can enjoy high-power observations without the distracting shake, or the need for tripods or other support systems normally required to achieve steady images.
Two IS modes allow the performance to be tailored to the situation: Normal IS is ideal for moving or multiple subjects, while Powered IS improves the stabilization when observing a single stationary subject. An intuitive two-button user interface makes choosing the mode simple and easy. The IS runs on two included AA batteries, and when not using the image stabilization, the optic will operate as a conventional pair of binoculars.
Optically, the binoculars are built with traditional Porro prisms, and an integrated field-flattener lens that corrects spherical aberration for distortion-free views, especially at the edges. Canon's proprietary Super Spectra Coating is used to limit colour bias, lens flare and ghosting; while maximizing light transmission, colour rendition, clarity, and contrast across the entire visible spectrum. With this new IS system, the close focus distance has been drastically reduced versus earlier models that use a different IS mechanism.
Performance
Powerful 14x magnification
Compact 32mm objective lens
Porro prism light path
Fully multi-coated optics using Canon's proprietary Super Spectra Coating to limit colour bias, lens flare and ghosting; while improving light transmission, colour rendition, clarity, and contrast across the entire visible spectrum
Doublet field-flattener lens corrects spherical aberration for distortion-free views, especially at the edges
7-element/6-group objective lens configuration
5-element/4-group eyepiece lens configuration
226-foot field of view at 1000 yards
6.6' close focus distance is an improvement over earlier IS models
Image Stabilization
Lens-Shift image stabilization system uses a vibration gyro-mechanism, in conjunction with microprocessors, that detect and counter the appearance of hand-shake by moving the internal lens assembly horizontally and vertically, to make the image appear steady
Powered Image Stabilization is a secondary IS system that improves the image stabilization when focused on a single subject
±1.0° correction angle
Runs on two AA batteries
Use and Handling
Simple 2-button interface: Normal IS and Powered IS
Large center focus wheel
±3 right eye dioptric correction
55-76mm interpupillary adjustment range
Fold-down rubber eyecups for comfortable use with or without eyewear
14.5mm eye relief
2.3mm exit pupil
Construction Details
Redesigned chassis is more ergonomic to fit more comfortably in the hand
Slip-resistant rubber armouring provides a sure grip
Weight: 27.3 ounces
SPECIFICATIONS
Prism Type Porro
Magnification 14x
Objective Lens Diameter 32mm
Angle of View 4.3° (actual)
Field of View 225.7' @ 1000 yd / 75.2 m @ 1000 m
Minimum Focus Distance 6.6' / 2 m
Exit Pupil Diameter 2.3 mm
Eye Relief 14.5 mm
Interpupillary Adjustment 55.0 - 76.0 mm / 2.2 - 3.0"
Dioptric Correction ±3
Stabilization Freedom ±1.0°
Focus Type Center
Tripod Mount None
Dimensions 6.7 x 5.6 x 3.0" / 17.0 x 14.2 x 7.6 cm
Weight 27.3 oz / 774 g
Package Weight 3.5 lb
Box Dimensions (LxWxH) 11.0 x 8.9 x 6.4"
