DURAMEX (TM) Full Motion LCD LED PLASMA TV WALL MOUNT, SCREEN BRACKET,37 40 42 46 50 55 60 65 70 RCA HISENSE LG SAMSUNG

Specification:

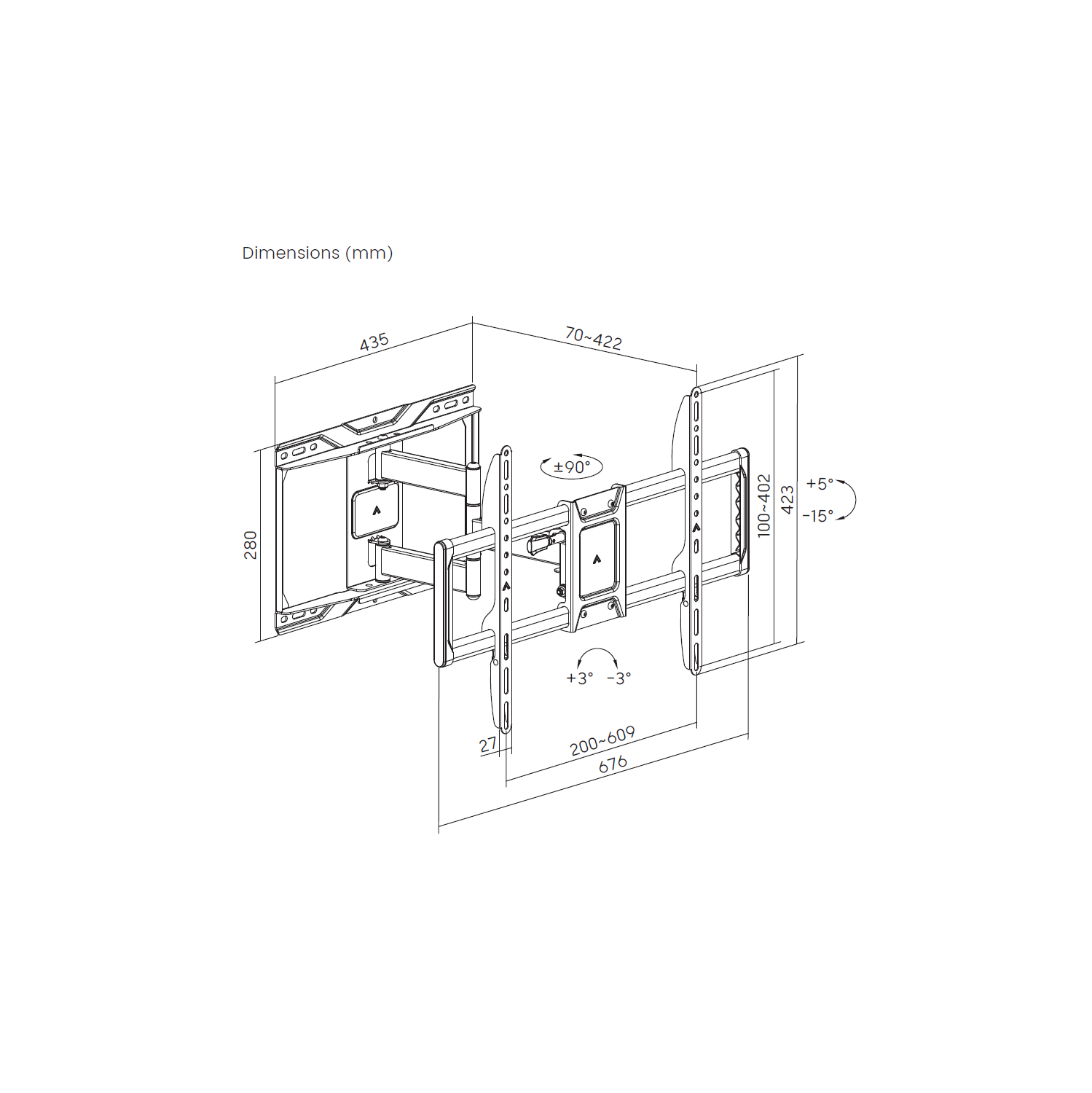

Universal fit - Compatible with LED, LCD, and Plasma TVs and other flat panel displays measuring between 37 and 70 inches diagonal. Supports all VESA mounting standards up to 600x400 (100x100, 200x200, 300x300, 400x300 and 600x400) and many odd size mounting patterns (mounting holes on the rear of the TV or panel should be no more than 25" inches apart horizontally and up to 16" vertically).

Tilt adjustment - Viewing angle can be set from +5 degrees (panel tilted slightly up/back) to -15 degrees (panel tilted down/forward).

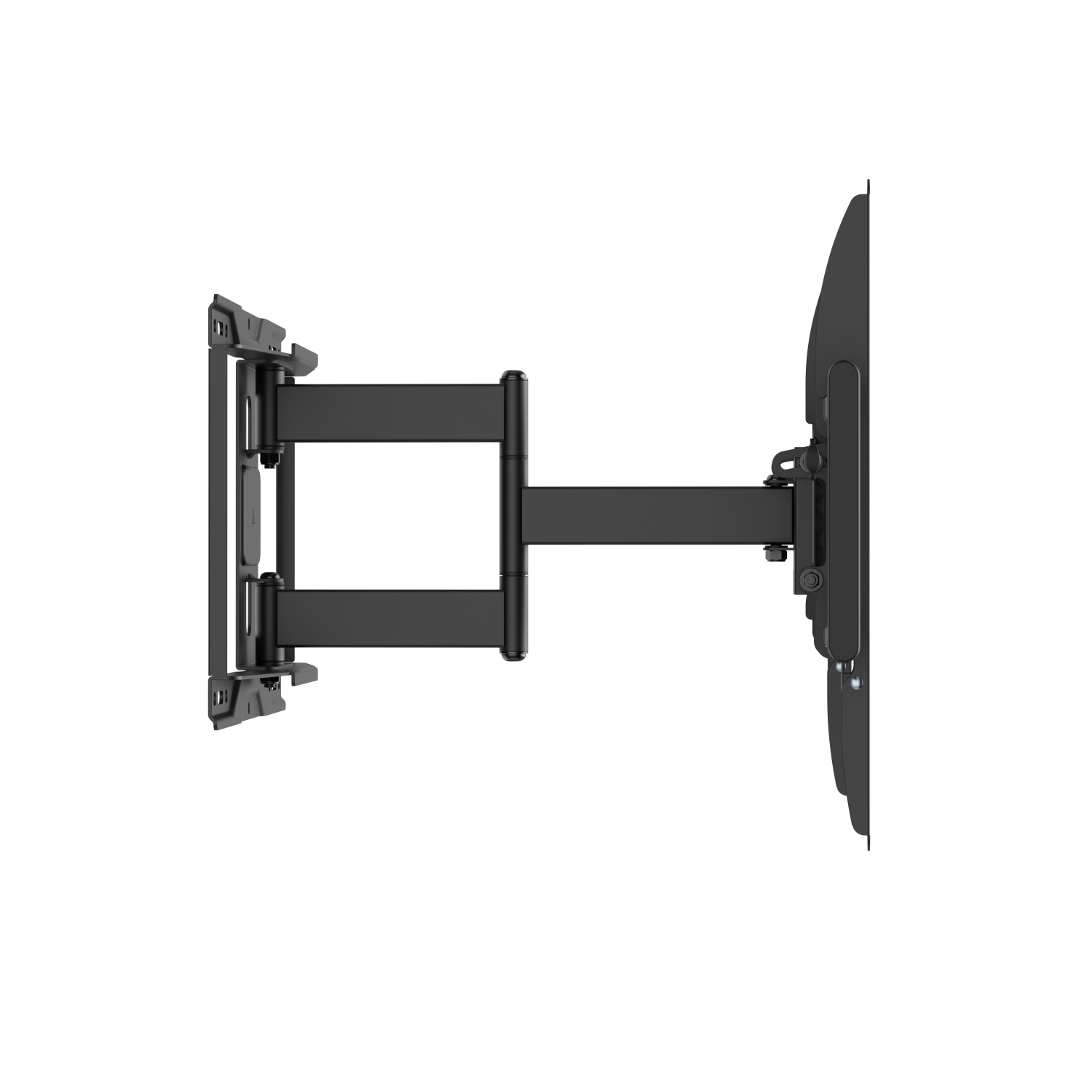

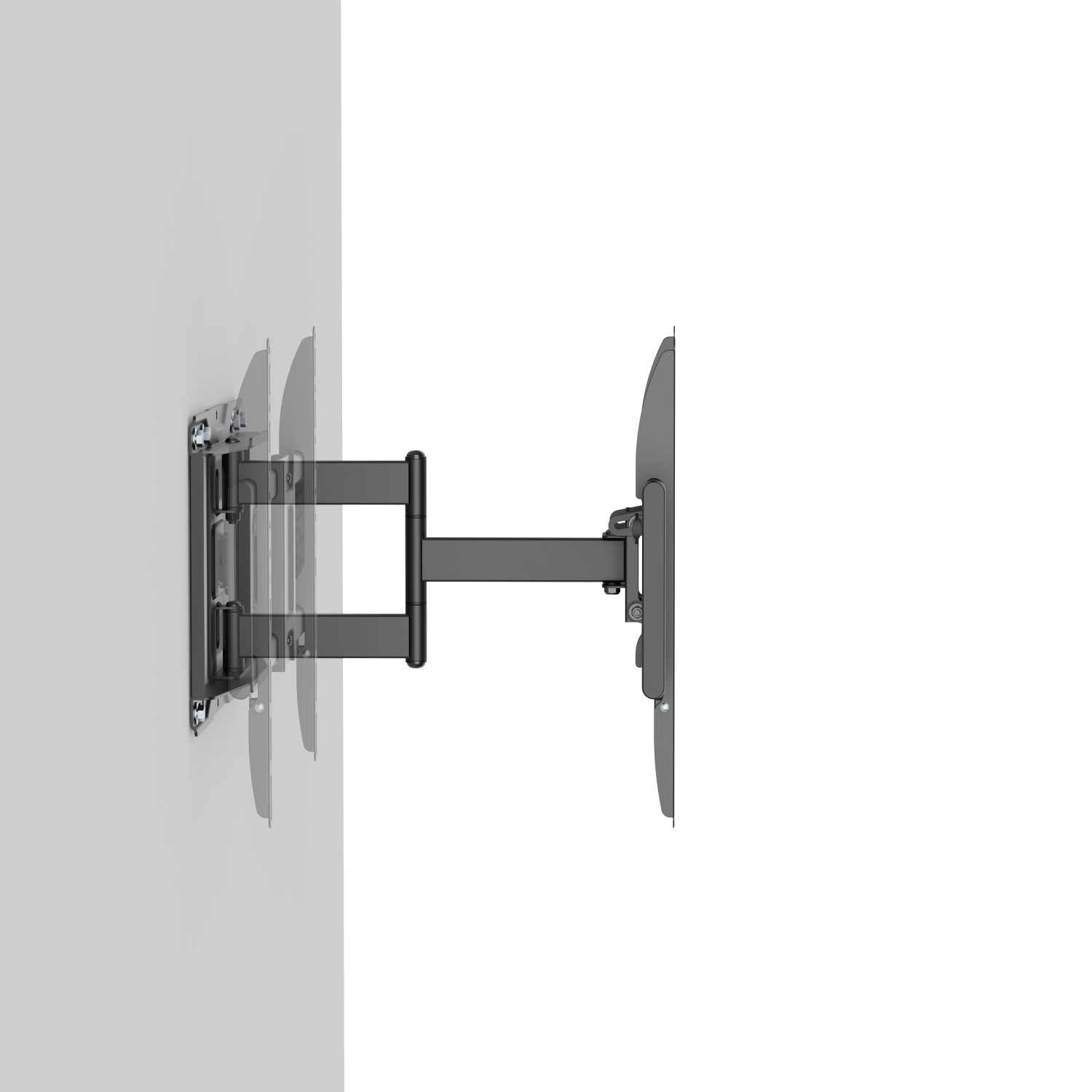

Fully extend from the wall from 69mm to 615mm

Swivel 90 degree from Left to Right

3 degree Level Adjustment

Easy installation - Lift/hook/lock system; simply mount the separate, pre-assembled arms onto the display with the included hardware. We also supply spacers to ensure the screws are installed into the TV panel at the correct depth, protecting against over-penetration.

Next, mount the back-plate to the wall using the supplied hardware; mount features numerous attachments points to accommodate multiple stud configurations. Last, lift the panel onto the back-plate and activate the safety features, locking the TV in place.

Sturdy - True rated capacity of 132 pounds.

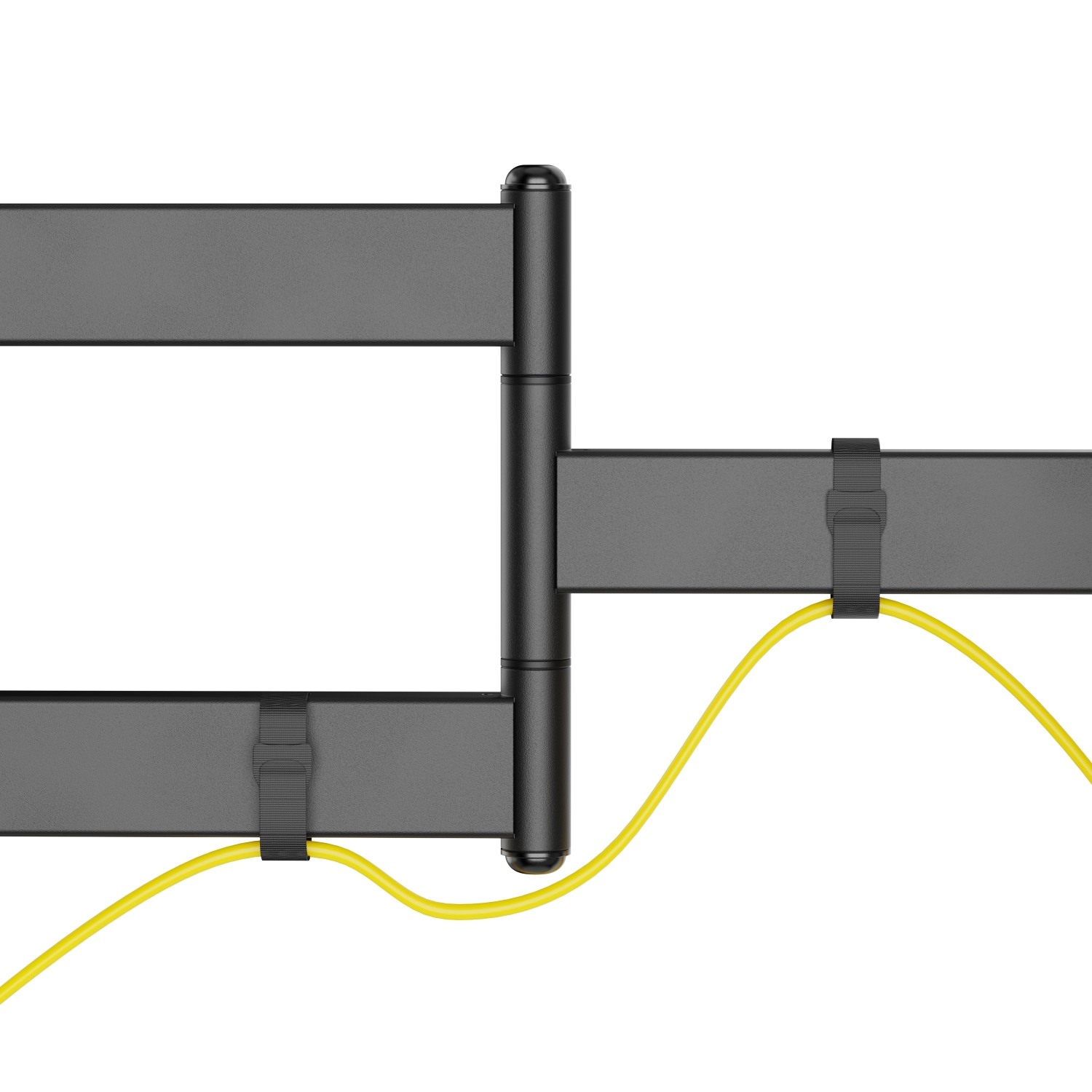

Cable management included.
