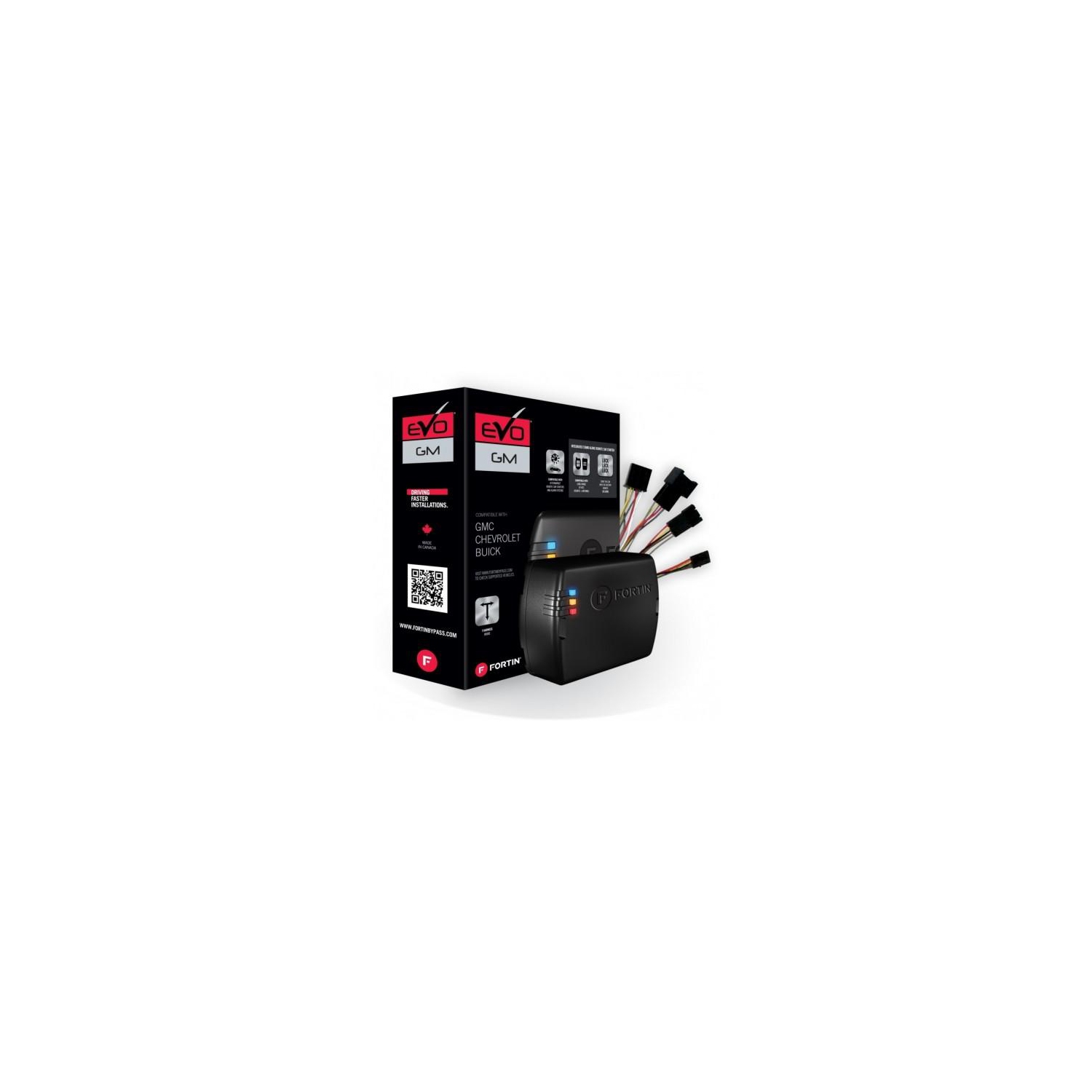

Fortin EVO-GMT4 Plug & Play Remote Starter for Buick, Cadillac, Chevrolet, GMC

The EVO-GMT1, EVO-GMT4, EVO-GMT5 and EVO-GMT7 are the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface with T-Harness combo module for select vehicles. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with ten separate communication ports that provide complete functionality on every supported vehicle.

Product Features:

3 x On-board LEDs for simplified programming and diagnostics.

1 x Factory Fit T-Harness for an easy install.

1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems. [2]

1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.

The self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Product Specifications:

3 x CAN-Bus controllers.

3 x General purpose controllers (J1850, Class 2, encrypted key etc.).

1 x On-board relay (SPDT).

1 x On-board relay (DPDT).

1 x Analog controller 0-12VDC @ 20mV steps (Pass-lock, MUX).

Parts Included:

1 x EVO-ALL control module. [1][3]

1 x Warning label. [3]

1 x 4 Pin 2-way data-link harness. [2]

1 x Factory Fit T-Harness (THAR-GM4). [4]

Legend:

[1] A firmware update is required.

[2] Using the 2-way data-link port with an equipped remote-starter, security-system, or RF-KIT greatly simplifies installation.

[3] Updated firmware and installation guides are posted regularly. We recommend updating this module to the latest firmware and downloading the latest installation guide(s) before installing this product.

[4] Secure Clip Harness.

Required Technology:

FlashLink Updater and Flash Link Manager

DCRYPTOR

*AN RF KIT MAY BE REQUIRED FOR SOME MODELS. OEM REMOTES ONLY FUNCTIONAL WHILE THE VEHICLE IS AT REST.
