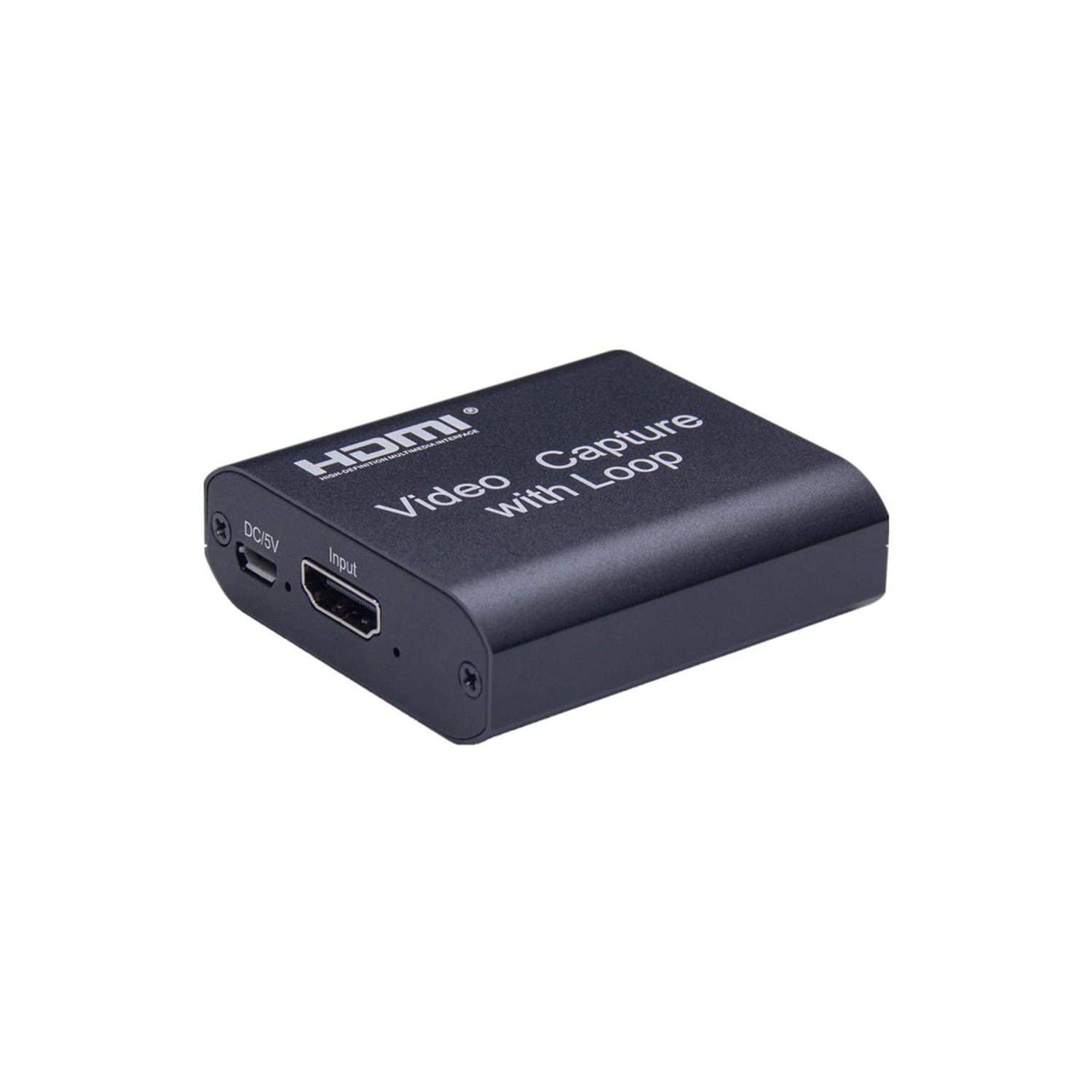

Hyfai USB HDMI Audio Video Capture Card Device, Game Capture Recording Recorder With HDMI Output LoopOut For Windows Mac OS

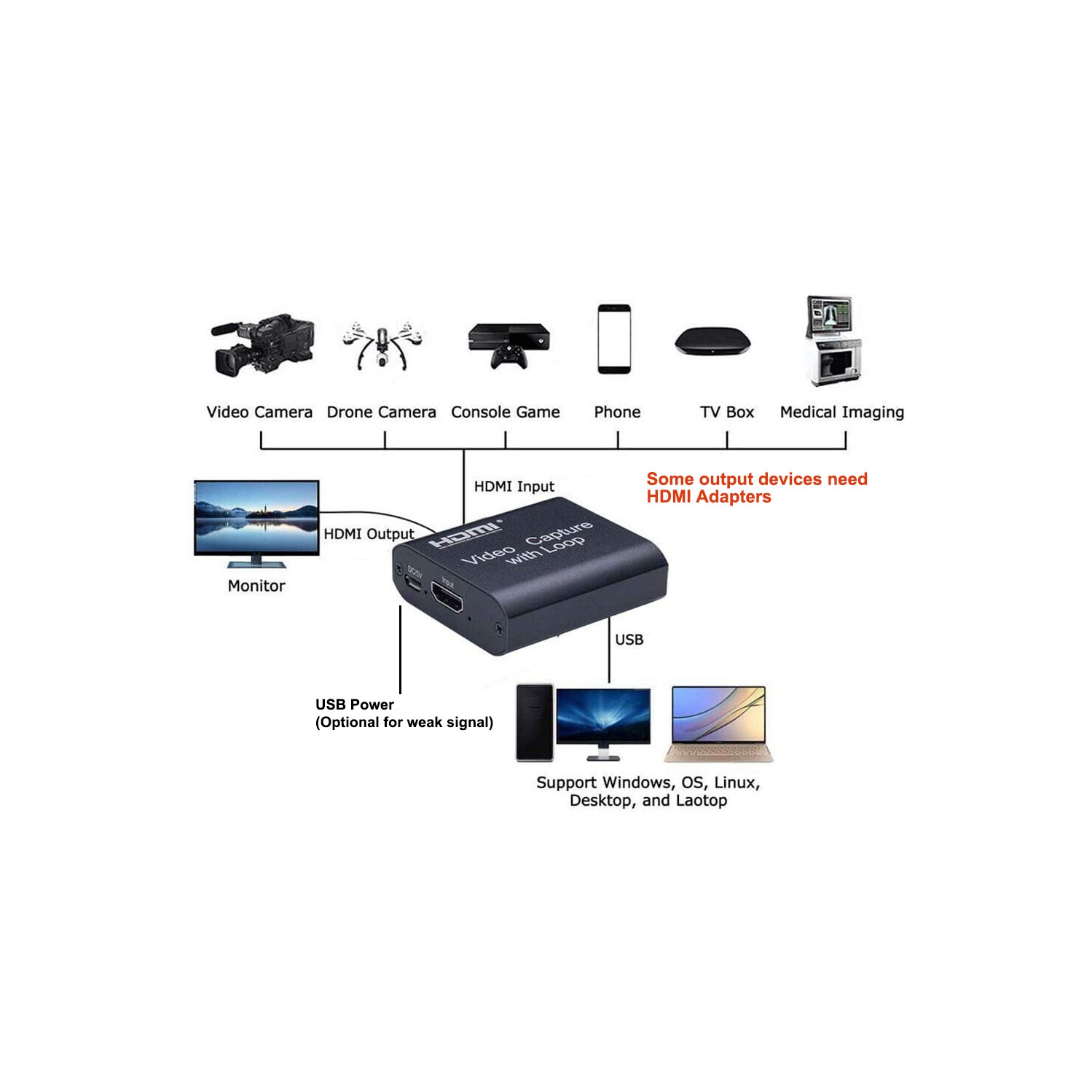

How to connect？

Micro USB power cable connects to Micro USB port to supply power(Optional)

Input port: input the stream video through the HDMI "Input" port.

Output port: connect the monitor through the HDMI "Output" port to preview the stream video in real time.

Connect it to the computer through the USB 2.0 port, use "VLC / OBS / Amcap, etc" to edit the video at the same time.

Features:

Support HDMI loop out

Support input HDMI max 4K@60Hz, max output HDMI & USB 1080P@30Hz

Support most acquisition software, such as VLC、OBS 、Amcap, etc; (No softwares included)

Support Windows、Android and MacOS

Conform to USB Video and UVC standard

Conform to USB Audio UAC standard

Support video format 8/10/12bit Deep color

Video output format YUV、JPEG

Support audio format L-PCM

Max working current 0.7A/5V DC

Operating Temperature range (-10 to +55℃)

Dimension (L x W x H) 59x56x19 (mm)

Note:

Computer hardware configuration requirements

CPU: PC i5-3400 or above NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above

Run memory: 4G RAM

Package List:

USB HDMI Capture Box x 1pcs

1m USB A to A Cable(to Computer) x 1pcs

Micro USB power cord x 1pcs

User manual x 1pcs
