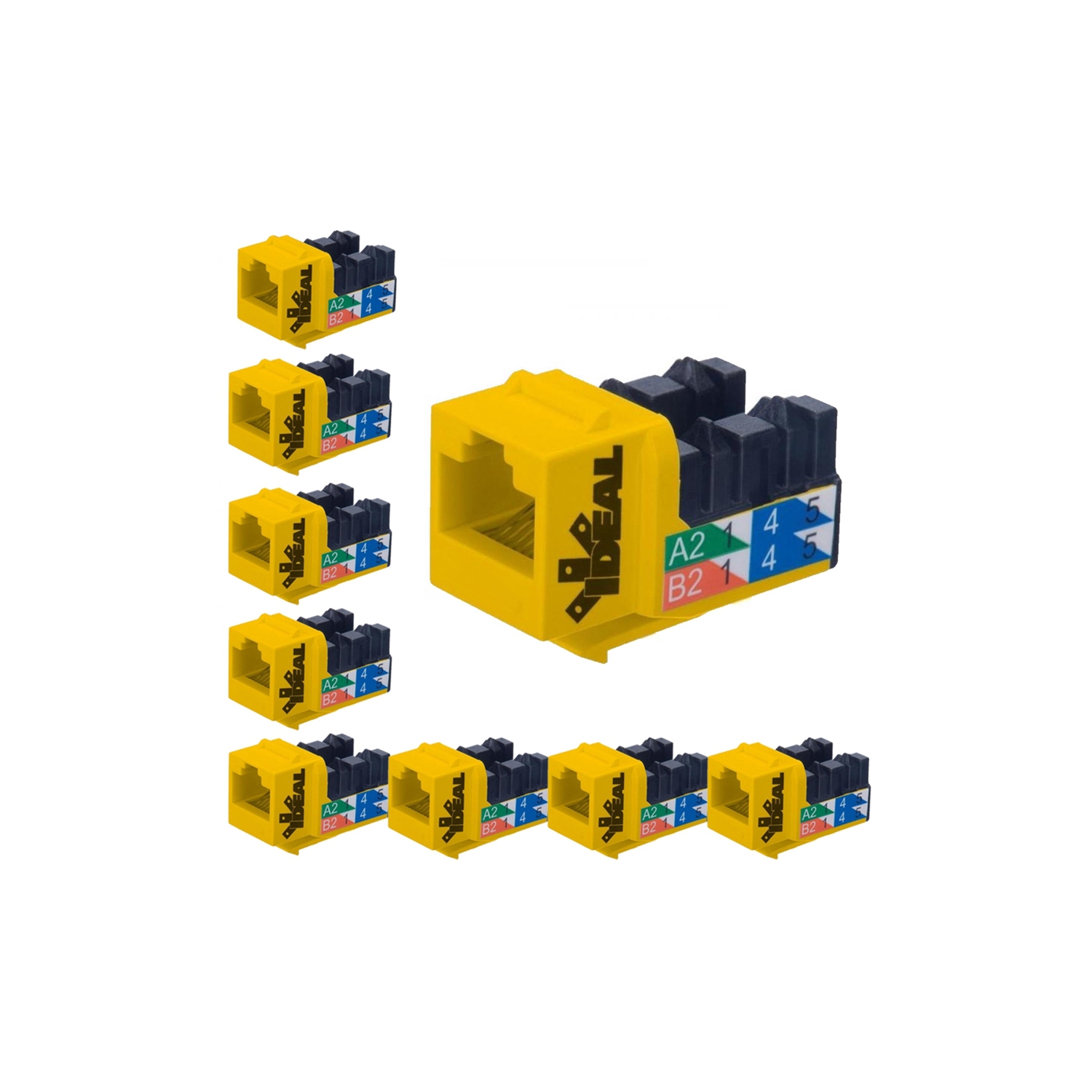

Ideal Industries Cat5e RJ45 110 Type 90 T568A/B Yellow Pack of 10

. 110 IDC style termination with internal PCB (requires punch tool)

. 100 MHz / 1Gb performance

. Keystone dimensions provide compatibility with other devices

IDEAL Keystone Jacks are high performance modular jack connectors designed to exceed the CAT5e requirements of ANSI/TIA-568-C.2 giving installers the ability to use these products in residential and commercial installations for applications such as Gigabit Ethernet.

All jacks feature a robust internal printed circuit board design used to help reduce NEXT (near-end cross talk) and improve RF performance at higher frequencies. The IDC tower design and layout help to simplify and speed up the wiring and termination process. Tapered tower tops help to separate each pair into the individual IDC slot without the need to untwist each pair. This allows pairs to easily maintain the recommended maximum of 1/2 '' of untwisting per pair from the cable jacket.

Twisted pairs stay together. With the PCB design, each color pair is terminated side by side, in a consistent pattern. Less time spent untwisting, separating and routing individual conductors to the IDC contacts.

Jacks have both 568A and 568B wiring diagrams and pinouts pre-labeled at each IDC location.

The IDEAL Keystone Jacks have an industry standard (14.5mm x 16mm) profile interface and latch location so they are compatible with many other keystone style sized panels, racks, and plates.

Standard midsized (2.75 '' x 4.75 '' ) faceplates in both white and ivory colors are available in 1, 2, 3, 4, 6 and 0 port configurations. Blank inserts can be used to fill in unused faceplate ports.

Jack Specifications:

Cable Types: 8 Conductor UTP Copper Cables 22-24 AWG (CAT5e/CAT6)

Termination Tool: 110 Punchdown

Housing Material: PC UL94-V0 Rated, Multiple Colors

Contact Finish: 50? Gold over 50? Nickel

IDC Housing Material: PC UL94-V0 Rated, Black

IDC Terminal Contact: Phosphor Bronze, 50? Nickel

IDC Cover: PC UL94-V0, Black

Circuit Board:
