The LX-NZ30 is a high performance 4K UHD/HDR home theater projector featuring BLU-Escent laser light source technology. Thanks to the BLU-Escent light source, it achieves a brightness of 3,300 lumens, so there is no need to draw the curtains every time. Moreover, there is no need to worry about the lamp life as it provides 20,000 hours of long life. The low latency coupled with the 1080p240Hz input takes gaming on this projector to another level.
.4K resolution (3840 x 2160) and HDR compatible (HDR10/HLG).
.JVC's original "Auto Tone Mapping" function allows you to enjoy various HDR10 content with the best picture quality without any difficult adjustment.
.Low latency and 1080p240Hz input especially for next-level gaming
.4K Input Specifications: Supports 4K/60p, 4:4:4/36bit, 4K/60p 4:2:2/36bit and 4K/24p 4:4:4/36bit signals - for higher colors vivid and subtle gradations
.Compatible with HDMI (4K/60P 4:4:4) and HDCP 2.3 standards

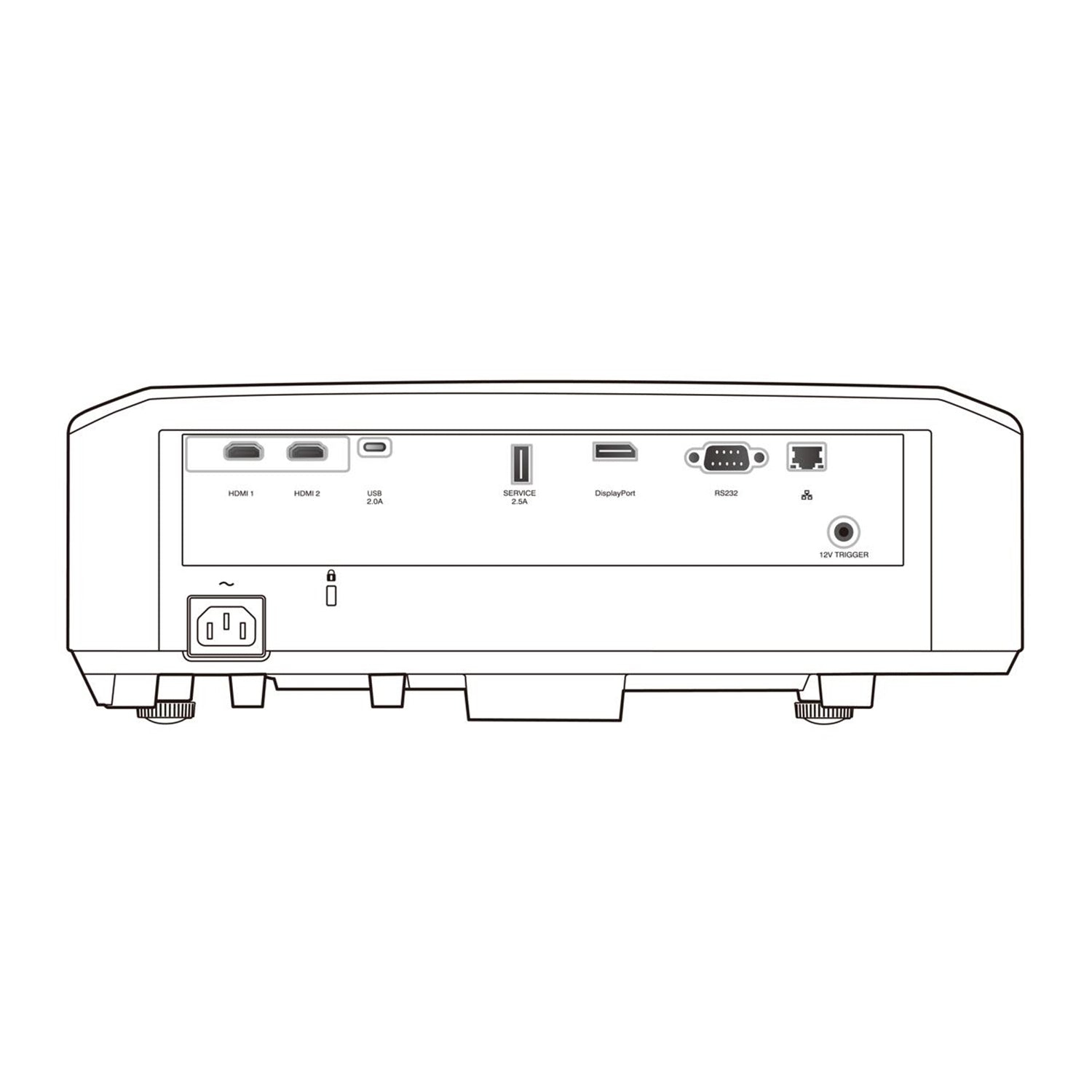

.Connectors: Display Port in, HDMI x2 with HDCP2.3 support, USB Type C, USB Type A (1.5 A power) and RS-232, LAN and Trigger (12 V)
.BLU-Escent laser light source
.Brightness of 3,300 lm and lifetime of 20,000 hours
.HDR (high dynamic range) for more realistic and dynamic images
.Auto Tone Mapping for pristine HDR10 picture quality
. 0.47 inch DMD for bright high definition 4k images
.Dynamic contrast ratio
.Wide lens shift function: +/-60% vertical, +/-23% horizontal
.1.6x high resolution objective
Specifications
Device
Chip Type: 0.47" DMD
Number of tokens: 1
Display resolution: 3840 x 2160
Light source
Laser: Yes
Type: Laser BLU-Escent
Lifespan (standard mode): 20000 hours
Brightness: 3300lm
Dynamic Light Power Control: Yes, 2 Modes
Manual light output control: Yes
100% REC 709: Yes
HDR
HDR10: Yes
HLG: Yes
Automatic Tone Mapping: Yes
Display of mastering information: Yes
HDR picture modes: HDR10 / HLG
Lens
Zoom: 1.6x
F: 14.3 - 22.9mm
F: 1.809
Lens shift: Yes
Horizontal range: ± 23%
Vertical range: ± 60%
Projection Display Size (Diagonal): 60 - 200 inches
hdmi
HDMI: Yes
Version: 2.0
Number of entries: 2
HDCP version: 2.3
4K60P signal input: Yes
2K240p signal input: Yes
Video signal range: 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 240/120/ 60/ 50/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24
PC signal range: VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / UXGA / WQHD (60) / FHD (240) / UHD (60)
Input Level Adjustment: Auto / Normal (16-235) / Enhanced (0-255)
Connections
Display Port: Yes
Trigger: Yes
Power: DC 12V/100mA
LAN: Yes
Connector: RJ45
USB: Yes
Connector: 1 x USB Type-C input (support DP Alt mode), 1x USB Type-A output (5V/1.5A)
RS-232: Yes
Connector: D-sub 9 pin
Image settings
Picture modes: Natural. Cinema, Dynamic, User 1 & 2
Color Temperatures: High, Normal, Low
Gamma adjustment: 2.2, 1.8, 2.0, 2.1, 2.3, 2.4, 2.6, contrast priority, brightness priority
Color management: 3D color management
Low latency mode: Yes
Food and environment
Power requirement: AC100-240V, 50/60Hz
Power consumption: 360W
Be ready: 0.5W
Fan noise: 34 dB
Eco Mode: Yes, 29dB
Operating temperature: 0°C to 40°C
operating humidity: 10% to 90%
In the box
Remote control: Yes
User Manual: Yes
Power Cord: Yes
Batteries: Yes
Dimensions and weight
Product dimensions (WxHxD): 405 x 145.8 x 341 (mm)
Product weight: 5.9kg
