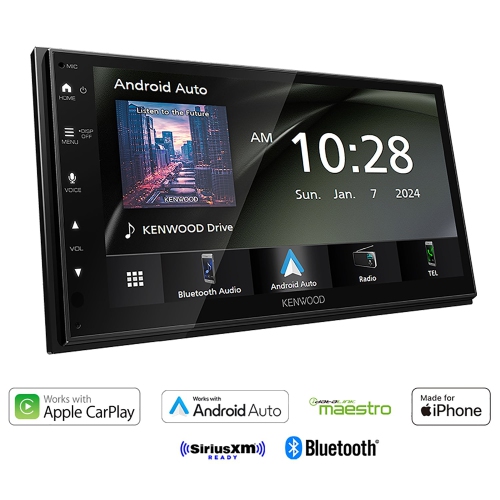

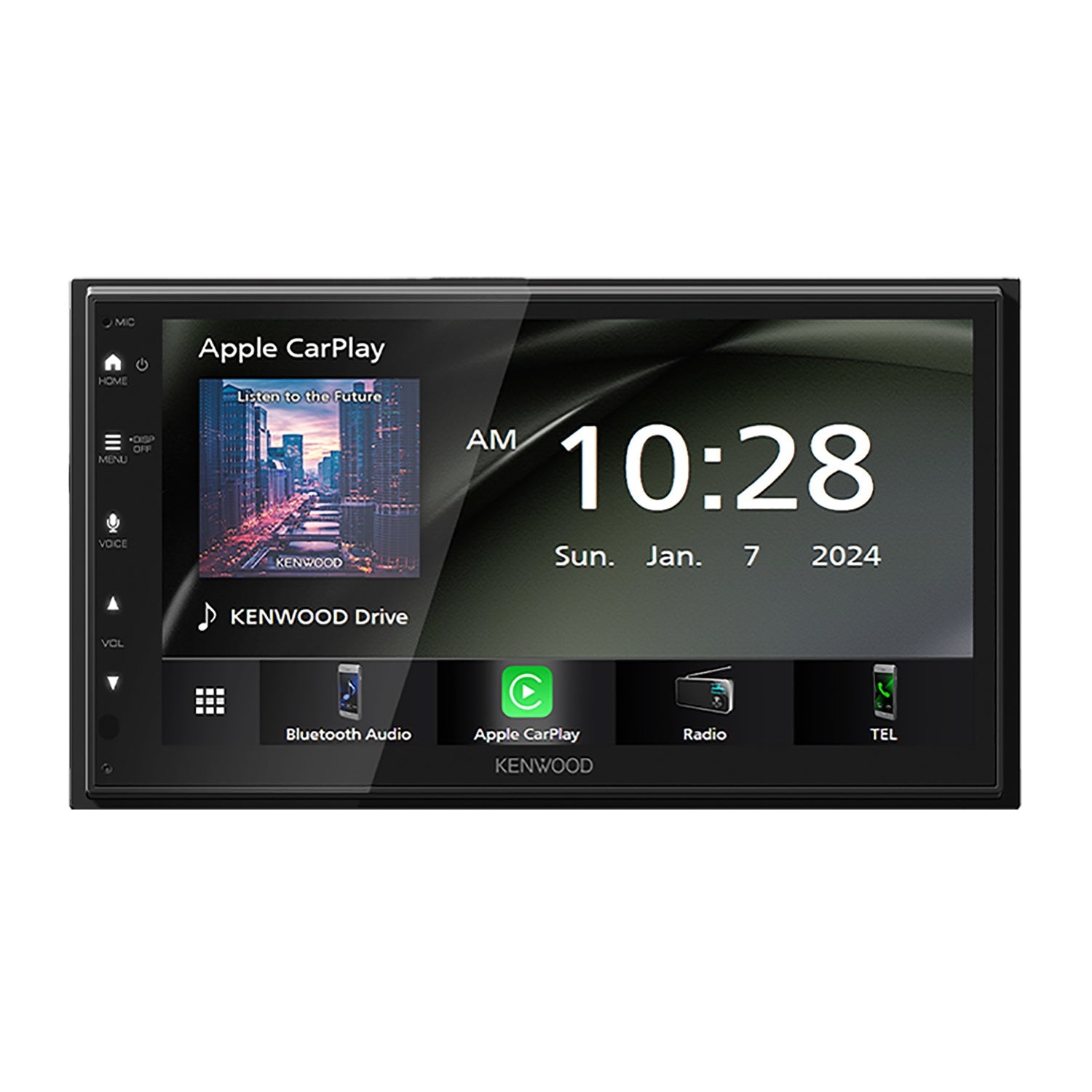

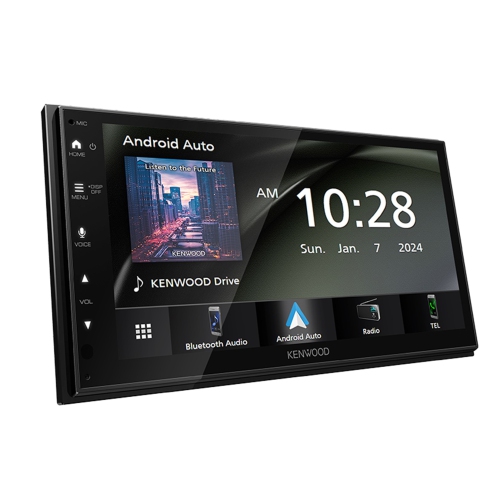

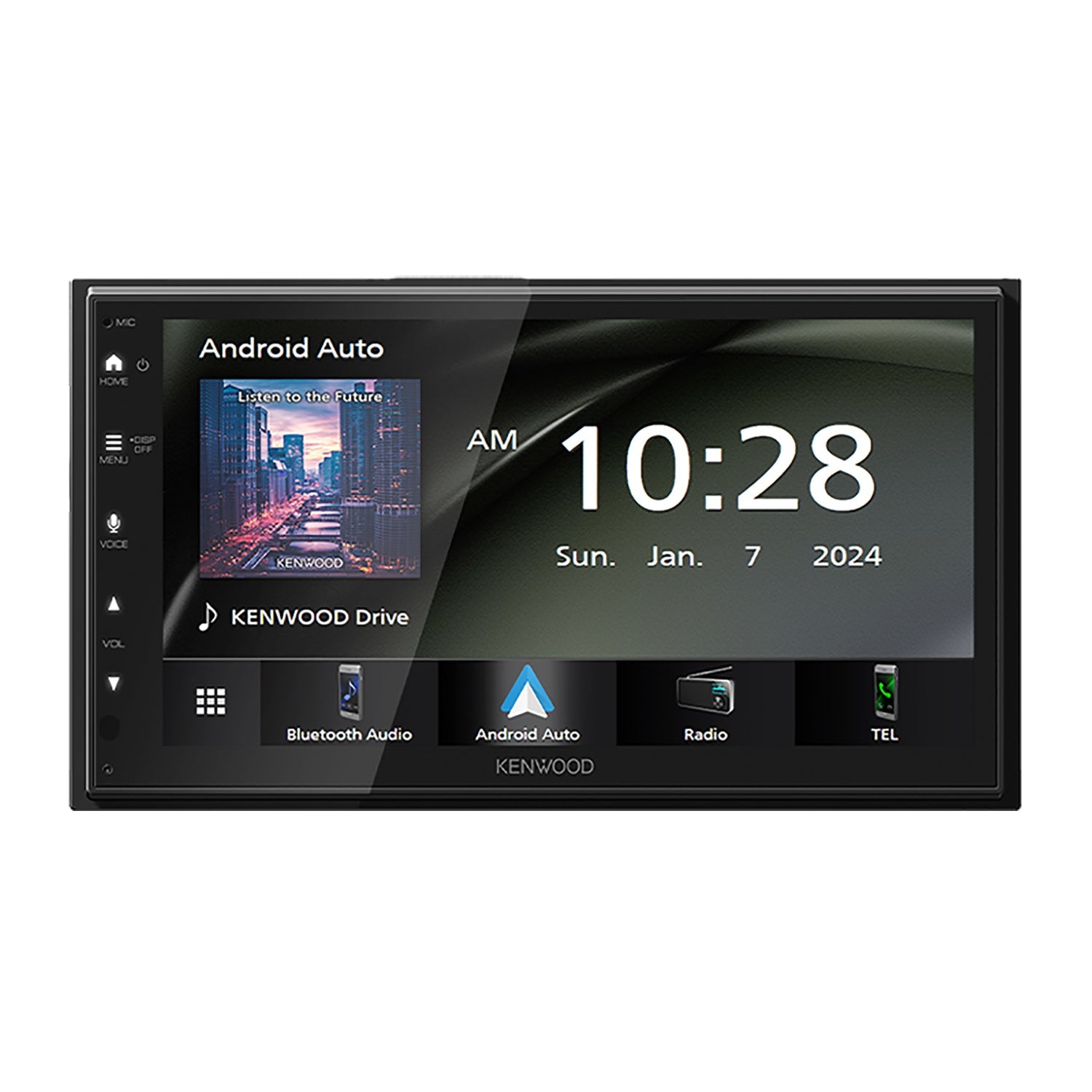

Discover the Kenwood digital media receiver with a 6.8" capacitive touchscreen that offers smooth interaction and superior image quality thanks to its WSVGA (1024 x 600) resolution. USB mirroring allows you to control your smartphone applications directly on the screen, making it easier to access your favorite content This receiver includes parking instructions, improving safety when maneuvering with a compatible rear view camera. The 13-band graphic equalizer and digital time alignment allow you to personalize. the sound according to your preferences and the environment of your vehicle Its short chassis makes installation easy, and the 2.1 A fast charging USB port ensures that your smartphone stays charged during your journeys. use for an enriched driving experience.
Features:
·USB Mirroring: Solution to seamlessly display and control your smartphone apps on a screen via USB connection on select smartphones.
Capacitive Touchscreen: Clear glass screen with swipe functionality that provides superior image and touchscreen control
·
·WSVGA (1024 x 600): WSVGA display reproduces approximately 1.6 times higher resolution than conventional WVGA display.
·
·Parking Guidelines: Parking guidelines (requires installation of a compatible backup camera) that improve the effectiveness of a backup camera.
·
·13-band graphic equalizer: You can adjust the level of each frequency band and create an original equalization curve to match the in-car environment or your specific preferences.
·
·Digital Time Alignment: Virtually adjusts your listening position to the center of the car.
·
·Short Chassis: The reduced depth of the chassis contributes to weight reduction and facilitates easier installation.
·
·2.1A Fast Charge: Quickly charge your compatible smartphone with the USB port, up to a maximum of 2.1A.
·
Specifications:
Monitor
·Image size: 6.8 inches (diagonal) wide
·
·Display system: TN LCD panel
·
·Driving system: TFT active matrix system
·
·Number of pixels: 1,843,200
·
·1024H x 600V x RGB
·
·Effective pixels: 99.99%
·
·Pixel Layout: RGB Striped Layout
·
·Backlight: LED
·
USB I/F
·USB standard: high speed USB2.0
·
·Connector: Type A
·
·File system: FAT16, 32/exFAT/NTFS
·
·Maximum supply current: DC5V (DC logo) 2.1A
·
·D/A converter: 24 bits
·
·Audio decoder: MP3/WMA/WAV/AAC/FLAC
·
·Video decoder: MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ WMV
·
Bluetooth
·Bluetooth specification version: Bluetooth V5.0
·
·Frequency: 2.402 - 2.480 GHz
·
·RF output power (EIRP): +1.6 dBm (AVE), power class 2
·
·Maximum communication range: Line of sight approximately 10 m (32.8 ft)
·
·An audio codec: SBC/AAC
·
·Support for multiple profiles: Multiprofile
·
Audio
·Maximum power (front and rear): 50Wx4
·
·Power over full bandwidth (front and rear) (within 1% THD): 22Wx4
·
·Output frequency band: 20 to 20,000 Hz
·
·Pre-output level (V): 2.5 V / 10 kΩ
·
·Pre-output impedance (Ω): 1.4 kΩ
·
·Speaker impedance (Ω): 4 - 8 Ω
·
·Equalizer: 13 bands
·
General
·Operating voltage: 12V DC car battery
·
·Installation dimensions W x H x D: 182 x 112 x 86 mm (7-3/16 x 4-7/16 x 3-3/8 inches)
·
·Main unit installation size W x H x D (without sleeve): 178 x 100 x 86mm (7-1/16 x 3-15/16 x 3-3/8 inch)
·
