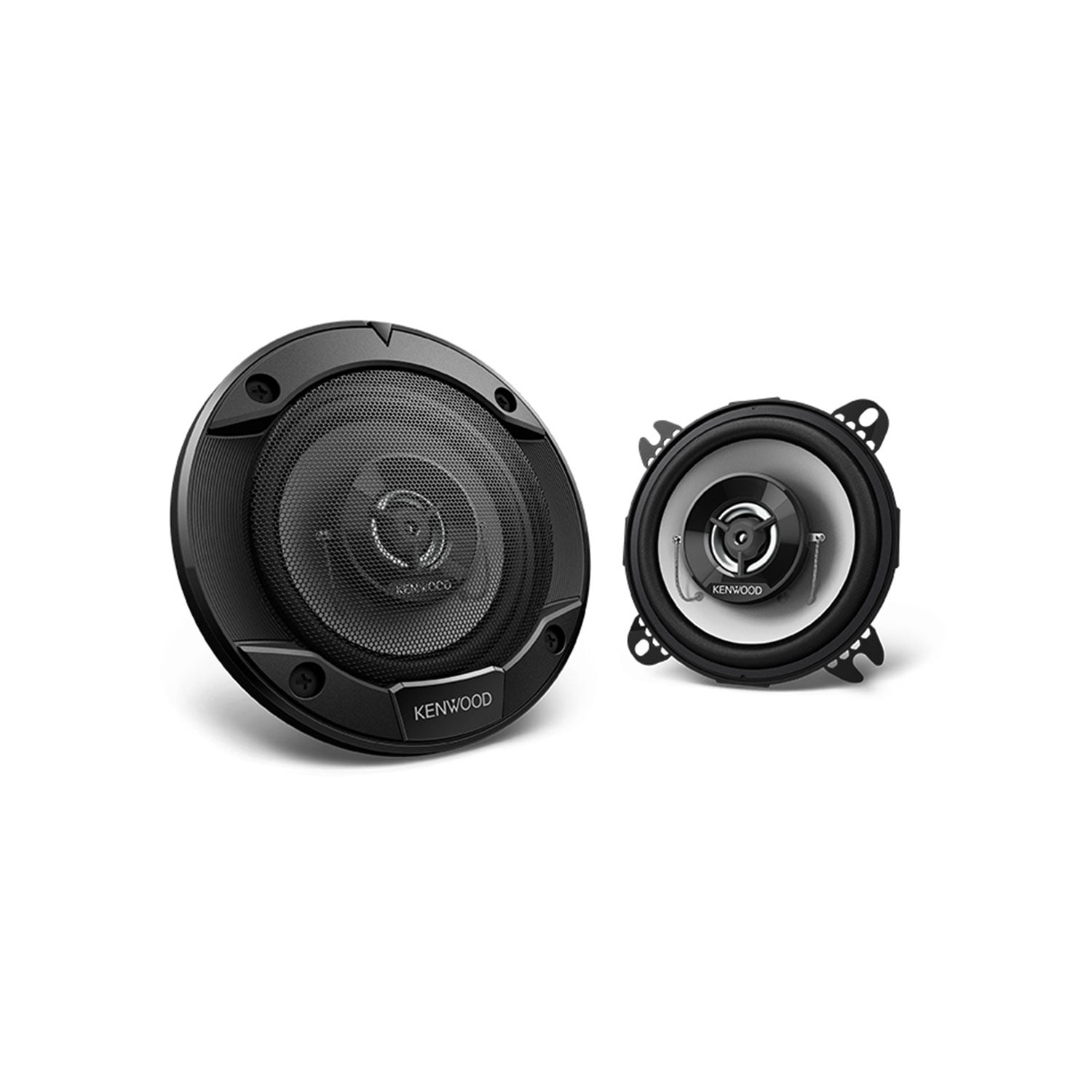

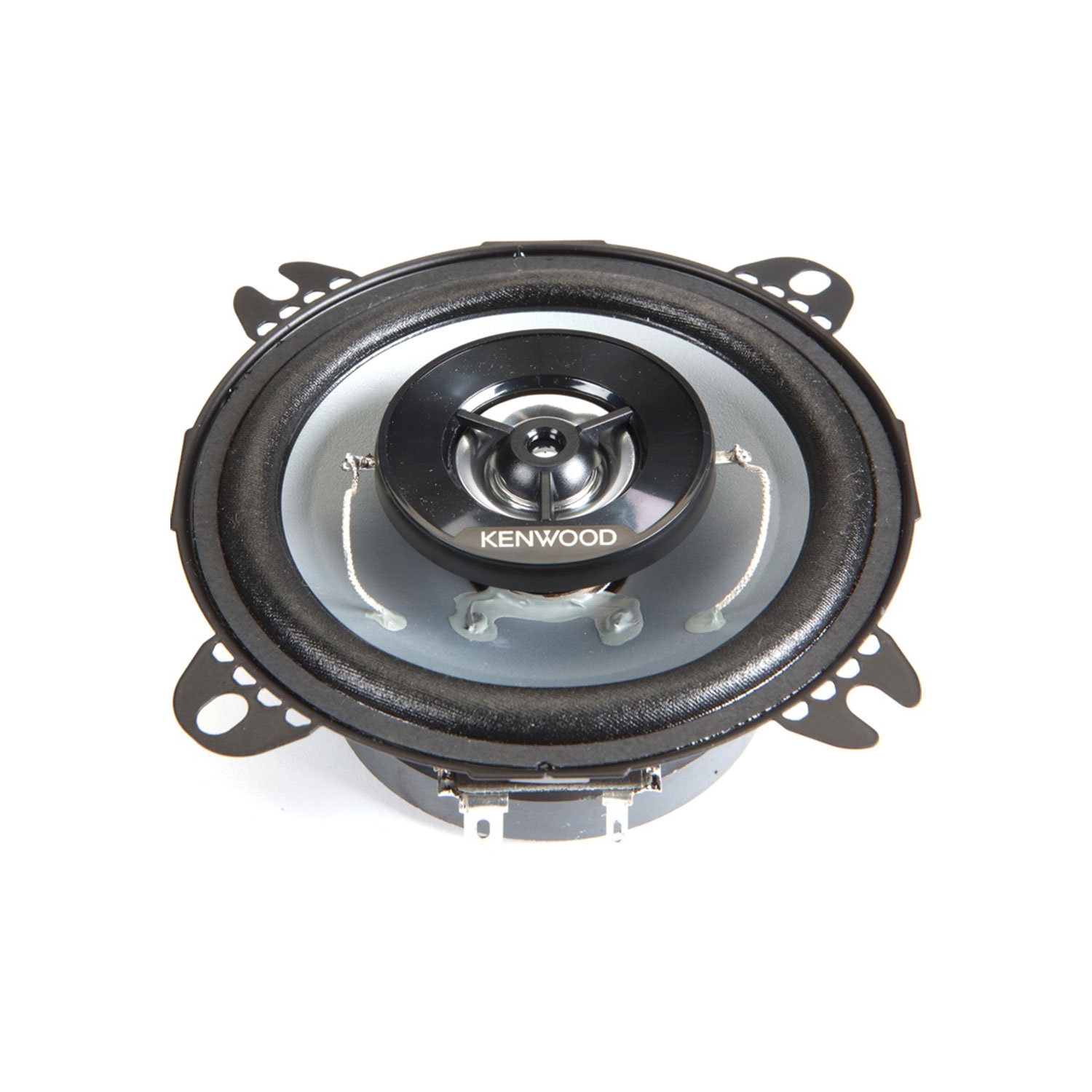

Kenwood KFC-1066S 4" Coaxial Speaker Sport Series 210W, For Car, Black

The Kenwood KFC-1066S 4″ Coaxial Speaker features a Sound Field Enhancer to improve sound quality. It has a Frequency Response of 45Hz – 22kHz with a Mounting Depth of 1-11/16”.

Enlarged magnet circuit in The Kenwood KFC-1066S 4″ Coaxial Speaker

To realize clear sound

Only 5/16″of mounting height

To fit for wider car selection

Featuring Tweeters

Each Kenwood KFC-1066S 4″ Coaxial Speaker has a 1″ PEI balanced dome tweeter. A semi-dome tweeter has a dome placed inside a cone. Balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter. PEI (Poly-Ether-Imide) is a polymer film that produces a wide soundstage for superior imaging.

4/2 Hole Compatibility

Most 4″ factory speakers use four mounting screws, however, in some vehicles, only two are used. The Kenwood KFC-1066S 4″ Coaxial Speaker mounting tabs can be removed, allowing installation in 4-hole or 2-hole applications. Care should be taken handling the speaker after any tabs are removed because the broken edges may be sharp. Please check enter your vehicle information to confirm fit.

. Sound Field Enhancer To improve sound quality

. Enlarged magnet circuit To realize clear sound

. Only 5/16"of mounting height To fit for wider car selection

. Peak Power 220W

. PP Cone Woofer

. Frequency Response 45Hz - 22kHz

SPECIFICATIONS

ELECTRICAL

Impedance (?): 4?

Peak Input Power (W): 120W

RMS Input Power (W): 21W

Sensitivity (dB at 1m): 88dB

Frequency Response (Hz): 50-22000Hz

WOOFER

Diaphragm: PP, Silver

Size: 100mm, 4in

Surround:Cloth

Magnet: Ferrite, ?70xt10

TWEETER

Diaphragm: Balanced Dome, Silver

Size: 25mm, 1 in.

Magnet: Neodymium

DIMENSION

Width (w_Gr): 134.0 mm, 5-1/4 in.

Width (w/o_Gr): 104.0 mm, 4-1/8 in.

Height (w_Gr): 134.0 mm, 5-1/4 in.

Height (w/o_Gr) :104.0 mm, 4-1/8 in.

Cutout Diameter :?92.6, ?3-5/8

Tweeter Height ;8 mm ,5/16 in.

Mounting Depth :43 mm, 1-11/16 in.

WEIGHT

with Grille (pc.): 437 g, 1.0 lbs.

without Grille (pc.): 391 g, 0.9 lbs.

Weight of Woofer Magnet: 160 g, 5.6 oz.

Gross Weight: 930 g, 2.0 lbs.
