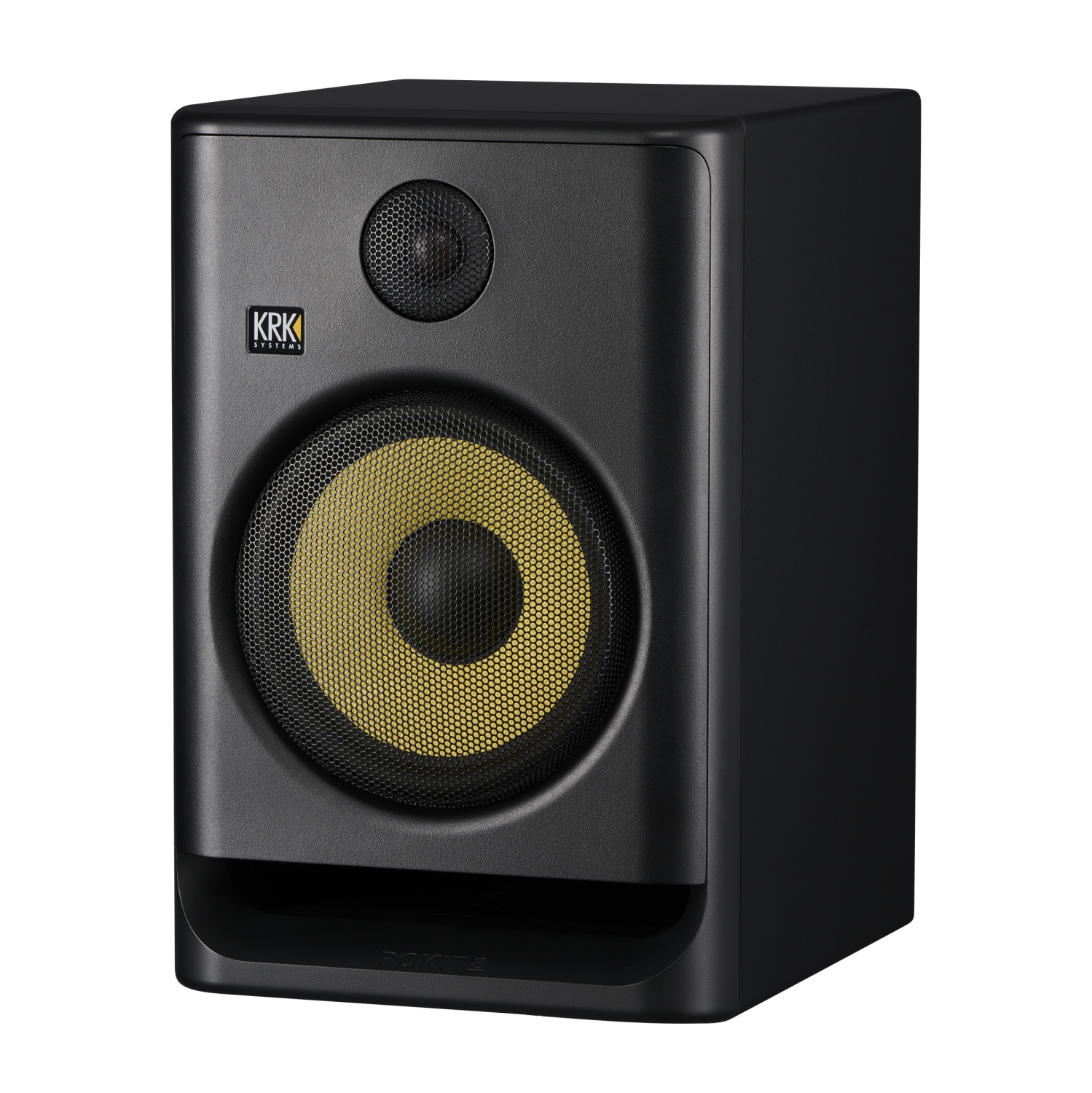

Elevate your audio production to new heights with KRK Systems' Rokit Generation Five product line that caters to the diverse needs of musicians, producers, and sound engineers worldwide. Whether you're working on a chart-topping hit, a film score, or a personal project, KRK Systems Rokit Generation Five monitors provide the tools you need to capture every nuance of your sound with astonishing clarity. Rokit Generation Five has three very useful voicing modes.
Mix Mode, with flat fre-quency and phase response, is best for mixing, mastering, and critical listening. Create Mode is a more inspirational voicing best used for writing, producing, and casual listening. Focus Mode is a mid-focused voicing for critical analysis of the midrange band where vocals and most instruments have the most energy. They feature 25 boundary and tuning EQ combinations that help minimize and correct problems in your acoustic environment and woven Kevlar[reg] aramid fiber cone woofers for superior damping and modal breakup control.
The tweeters benefit from a highly damped acous-tic silk dome diaphragm to smoothly extend the frequency range up to 40 kHz. For maximum transient response and dynamics reproduction, bi-amplified Class D power amplifiers drive the transducers evenly and more efficiently at reduced operating temperatures to ensure audio integrity during long work sessions.
SpecificationsConfiguration: 2-Way Bass Reflex
System Type: Active Studio Monitor
Low-Frequency Driver: Woofer, 8-inch, woven Kevlar[reg] aramid fiber cone, ferrite magnet
High-Frequency Driver: Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet
Frequency Response (+/- 3 dB): 42 Hz 36 kHz
Frequency Range (+3/-10 dB): 32 Hz 40 kHz
Crossover Frequency: 1.64 kHz
Amplifier Configuration: Bi-amplified (Class D)
HF Amp Power Output: 68 Watts
LF Amp Power Output: 135 Watts
Total Power: 203 Watts
Total Dynamic Power Output: 312 Watts
Max SPL: 111 dB
Coverage Angles: 148[degree] Horizontal x 125[degree] Vertical
Analog Input Connector: Balanced XLR / 1/4" TRS Combo
Input Impedance: 5.12k[ohm] Balanced
SNR (Signal to Noise Ratio): 94 dB (Low Sensitivity setting, balanced), 91 dB (High Sensitivity, unbalanced)
AC Input Voltage: 100 240VAC (+/- 10%), 50/60 Hz
Fuse Type: 5x20 mm T2A 250V
Enclosure Construction: PVC Vinyl Wrapped MDF
Baffle Construction: Structurally Reinforced High Impact Polystyrene
Product Dimensions (H x W x D): 15.75" (400 mm) x 10.47" (266 mm) x 12.56" (319 mm)
Product Weight: 23.04 lbs. (10.45 Kg.)
