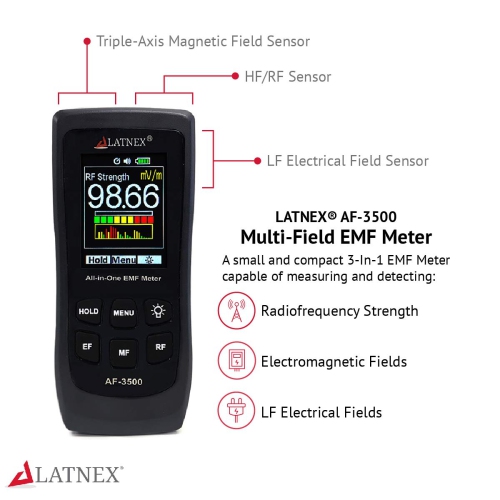

LATNEX AF-3500 EMF Meter RF Detector and Reader with Calibration Certificate - Measures RF, Microwaves, 3-Axis Magnetic Fields, & ELF

Magnetic field strength is measured in milliGauss (mG) and microTesla (μT) for 3 axis X, Y, and Z.

Electric field strength is measured in volt per meter (V/m).

RF field strength is measured in millivolt per meter (mV/m).

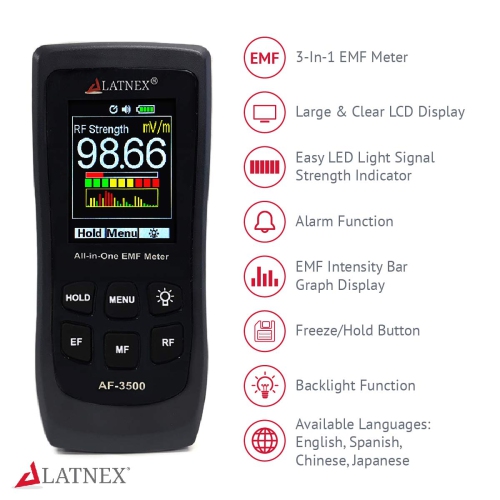

A 2 inch color TFT LCD screen displays the 3 results clearly all at the same time, with also the option to hold the 3 results.

Specifications:

*Electromagnetic field

- Sensor type:Low Frequency,Magnetic Fields,Triple axis (X, Y, Z)

- Range: 0.02~2000mG, 0.02 to 200µT

- Resolution: 0.01/0.1/1 mG or 0.01/0.1/1 µT

- Frequency:50/60 Hz

- Accuracy:±(15%+100dgt)

*Electric field:

- Sensor type: LF Electric Fields

- Range: 50V/m to 2000V/m

- Resolution:1 V/m

- Frequency:50/60Hz

- Accuracy: ± (7%+50dgt)

*RF Strength field:

- Sensor type: RF Strength

- Range: 0.02µW/m² ~ 554mW/m²

- Resolution: 0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB

- Frequency: 50MHz to 3.5GHz

- Accuracy: ± 2dB at 2.45GHz

Other Information:

- Display: 4 digits, 2.4 inches color TFT LCD.

- Sample rate: 6 seconds per time.

- Battery life: approximate 8 hours.

- Battery: 1.5V AAA alkaline battery*3.

- Audible key tone alarm: buzzer

- Operating temperature & humidity: 5°C to 40°C, below 80% RH.

- Storage temperature & humidity: -10°C to 60°C, below 70%

- Dimensions: 115(L) x 60(W) x 21(H) mm
