The Power to Perform
With 1300W of ultra-efficient, reliable power, Thrash is the perfect start to your PA system. If you are a band that is ready to gig or even upgrade your rehearsal space, Thrash is ready to make it happen.
The Sound of Rock
From Punk to Metal to Djent, Thrash is voiced to make your voice and instruments cut through in loud basement shows, garage rehearsals, and dusty old venues.

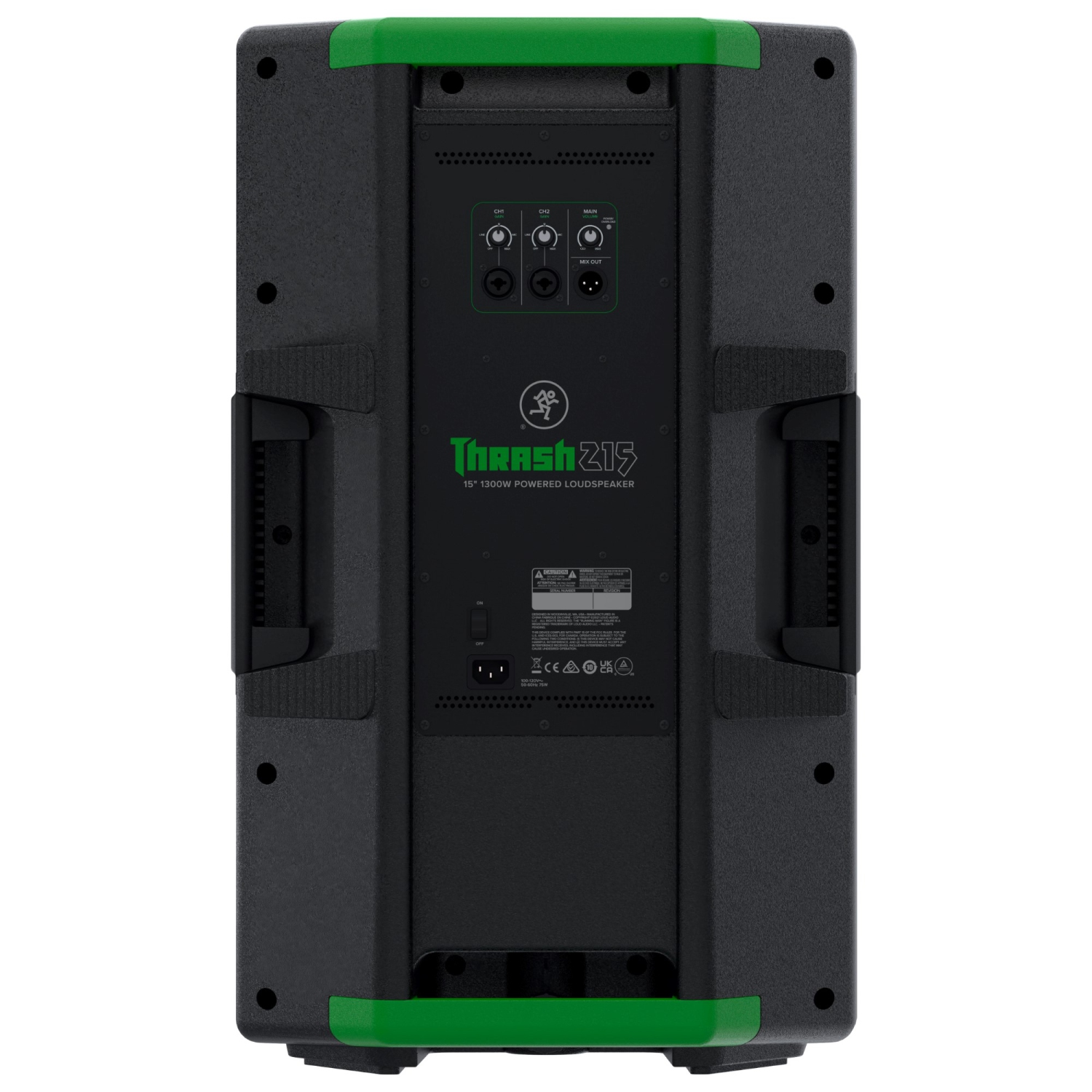

No Fuss I/O
Want to plug in, crank it, and get playing? Thrash wont get in your way. Dual XLR/TRS inputs plus a Mix Out are easy and versatile for connecting to your gear. You can even connect a microphone directly into either input when you just need simple vocal reinforcement.
Take the Heat
When things get hot, the automatic thermal limiting within Thrash will keep things in check so you can focus on your performance.
Features
* 1300W ultra-efficient Class-D amplifier
* Built-Like-A-Tank[trade] to conquer every gig while lightweight for easy loading
* Frequency Response: 38Hz - 20kHz (-10 dB)
* Max SPL: 126 dB
* Flexible I/O
- Inputs 1 and 2 feature XLR/TRS combo inputs
- Inputs accept both line and mic level
- Mix output contains audio from both input channels
* 15" high-performance woofer
* 1" Titanium compression driver

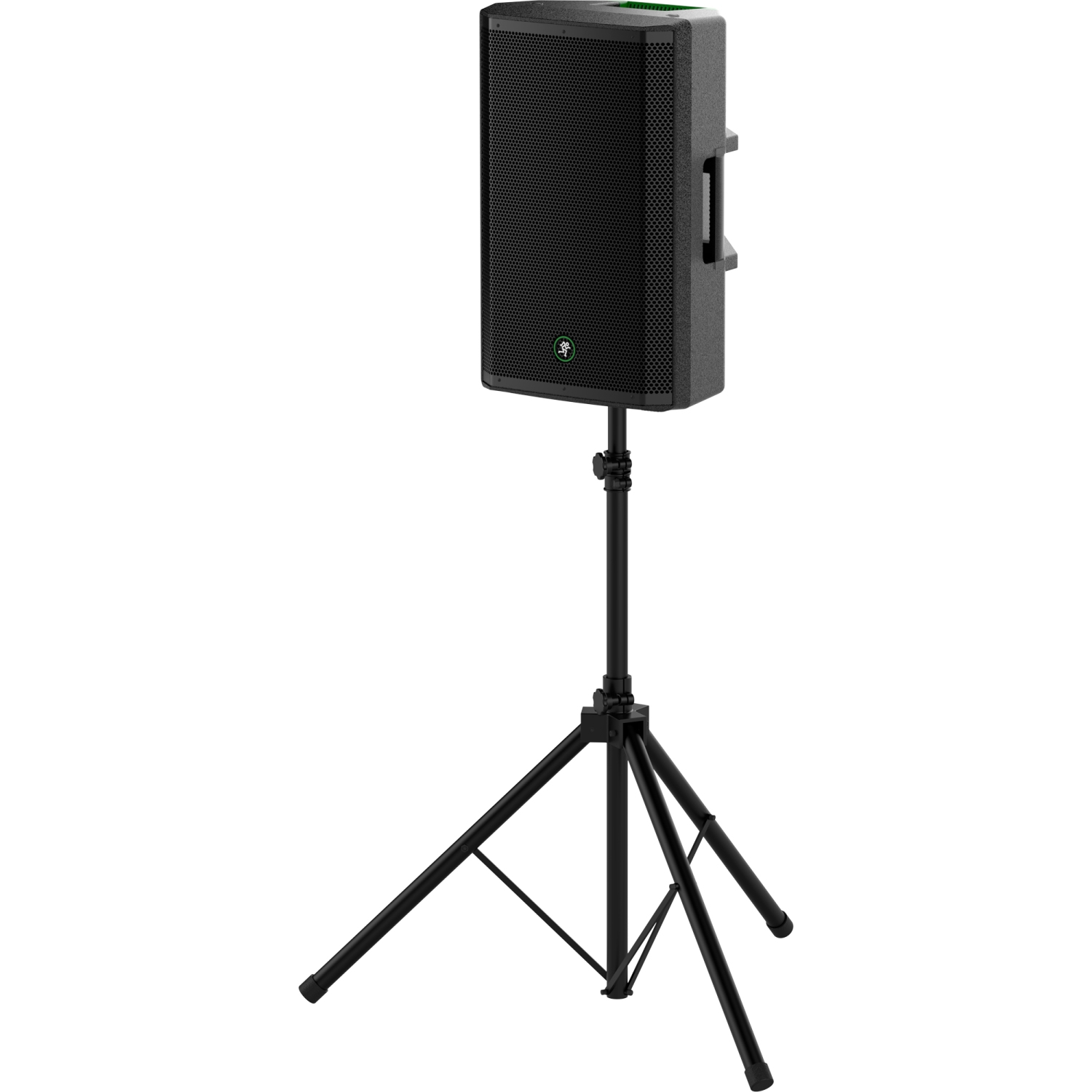

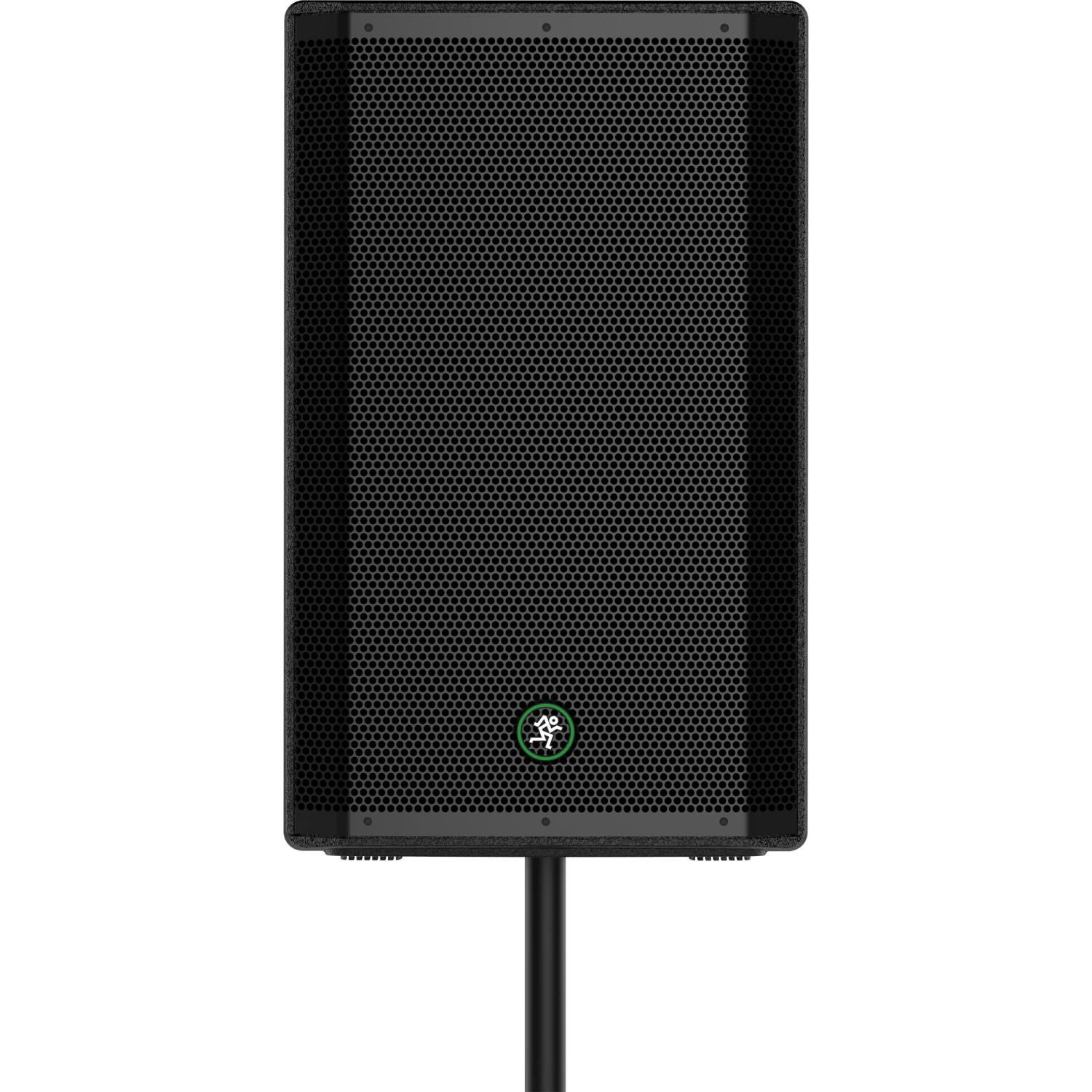

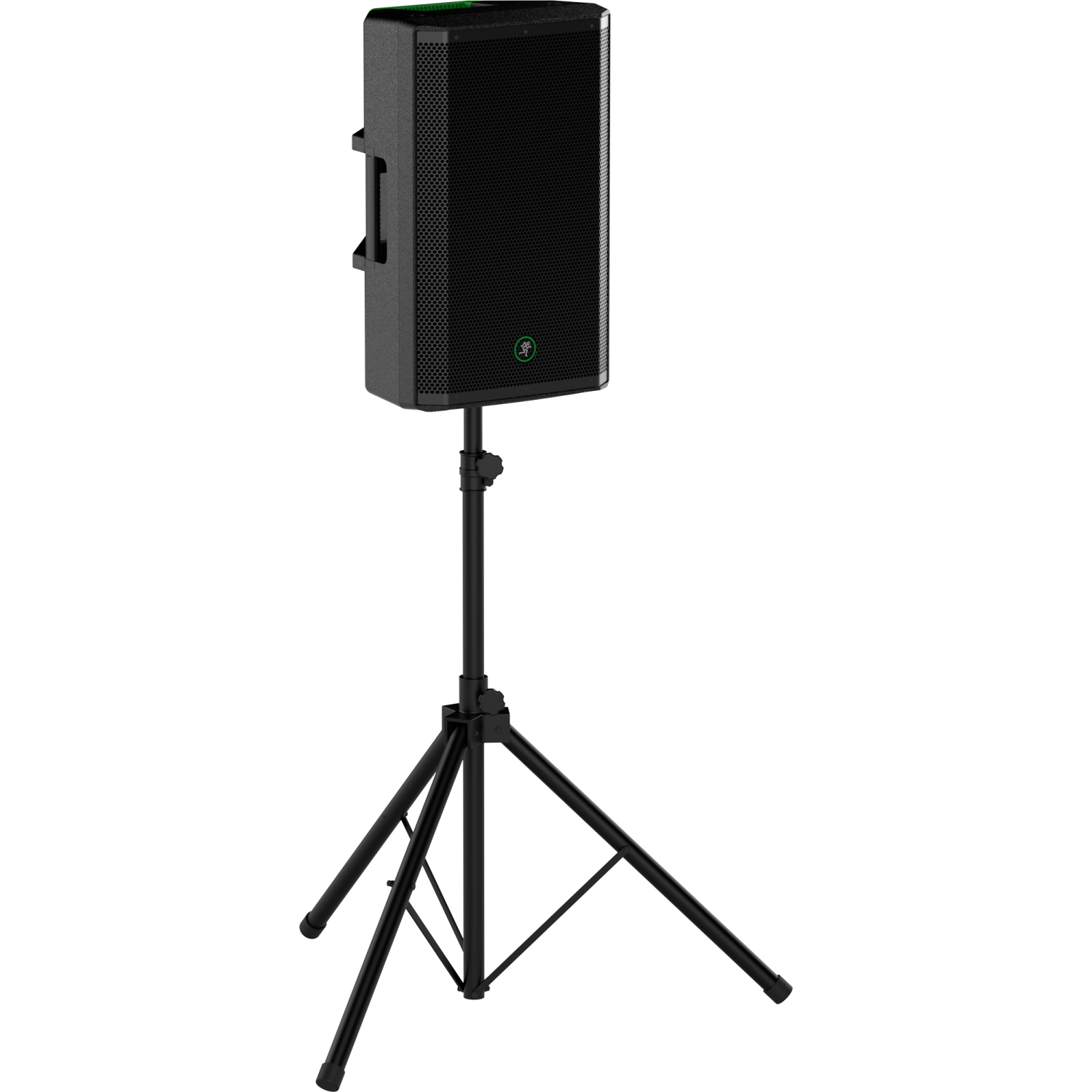

* Standard pole mount

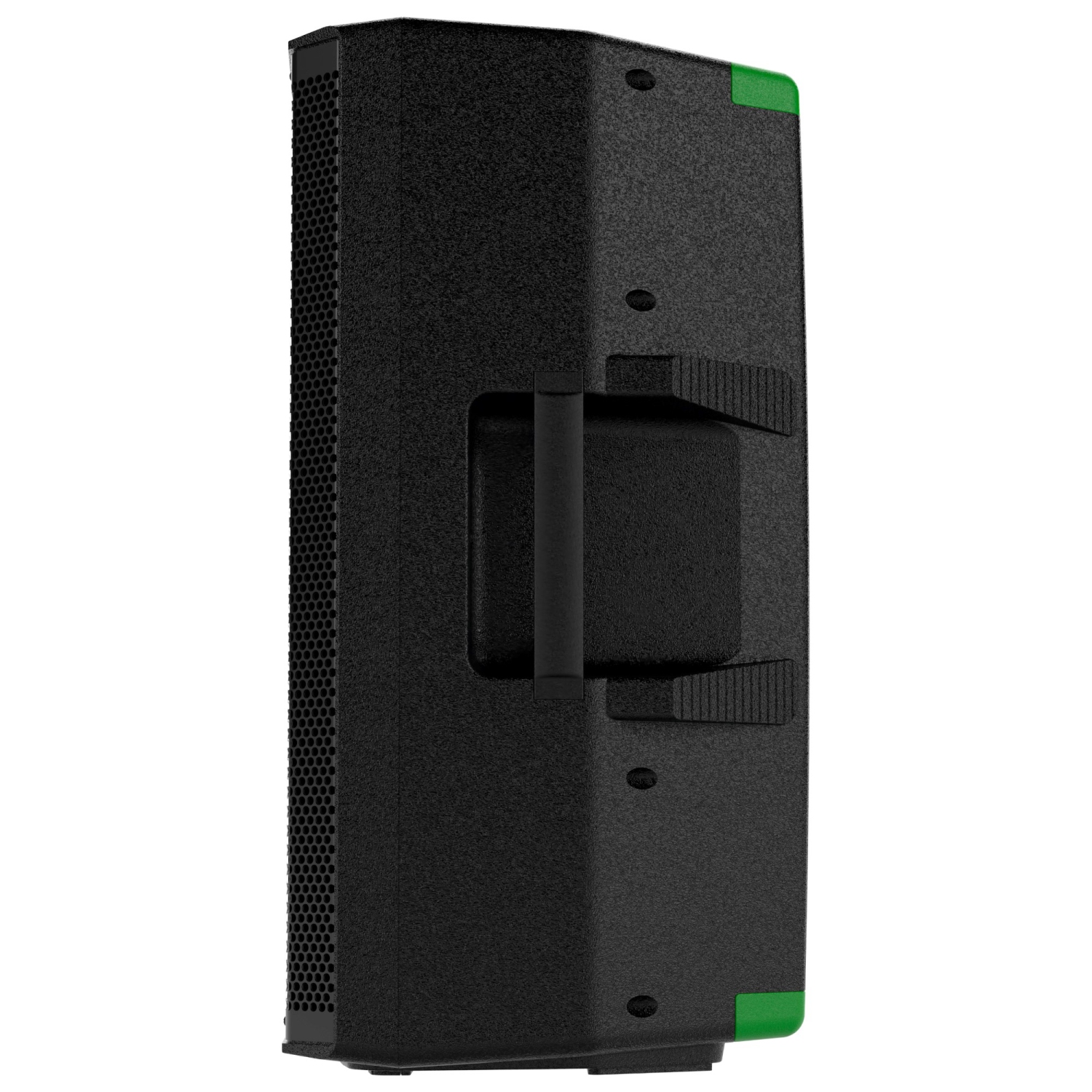

* Equipped with 4 handles for easy loading

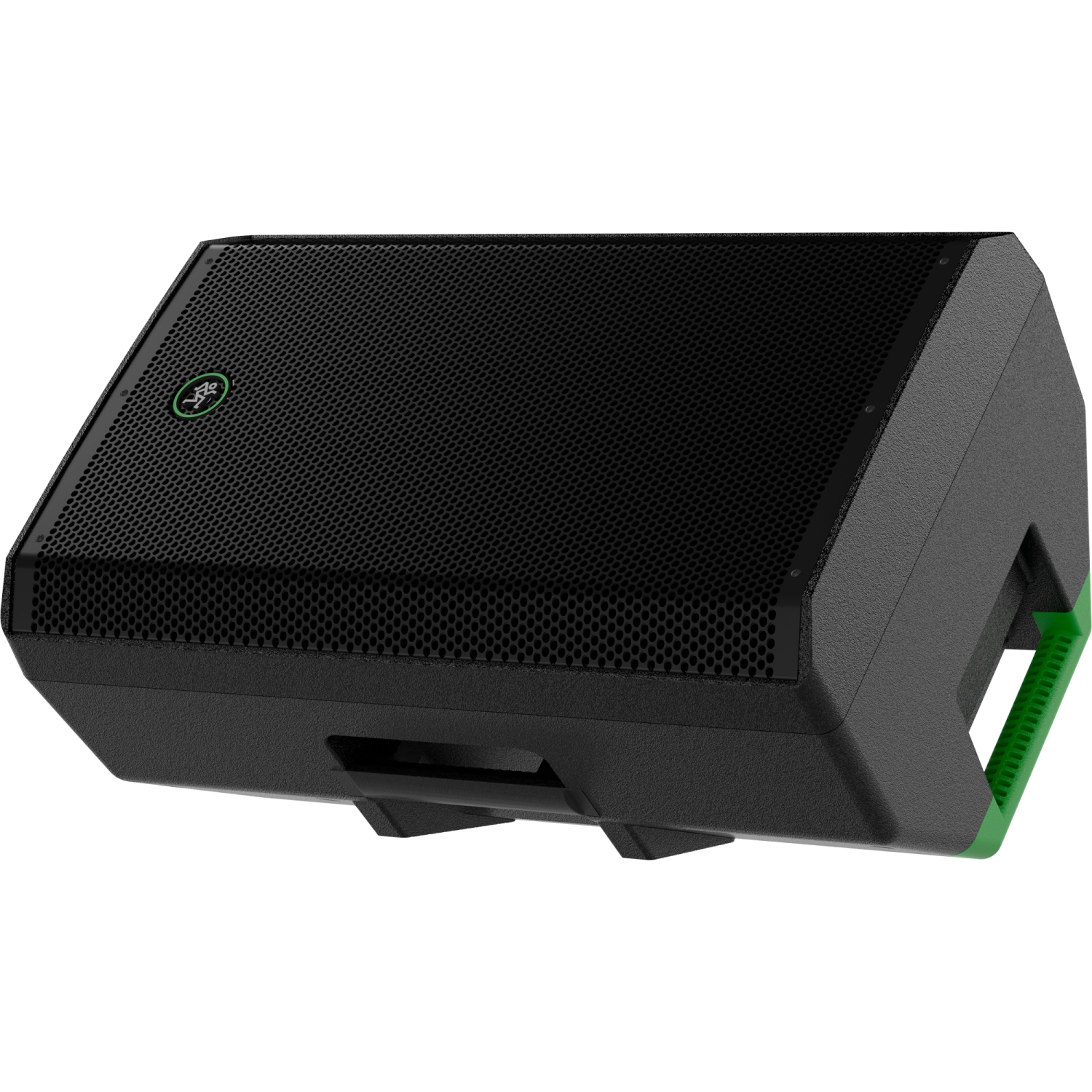

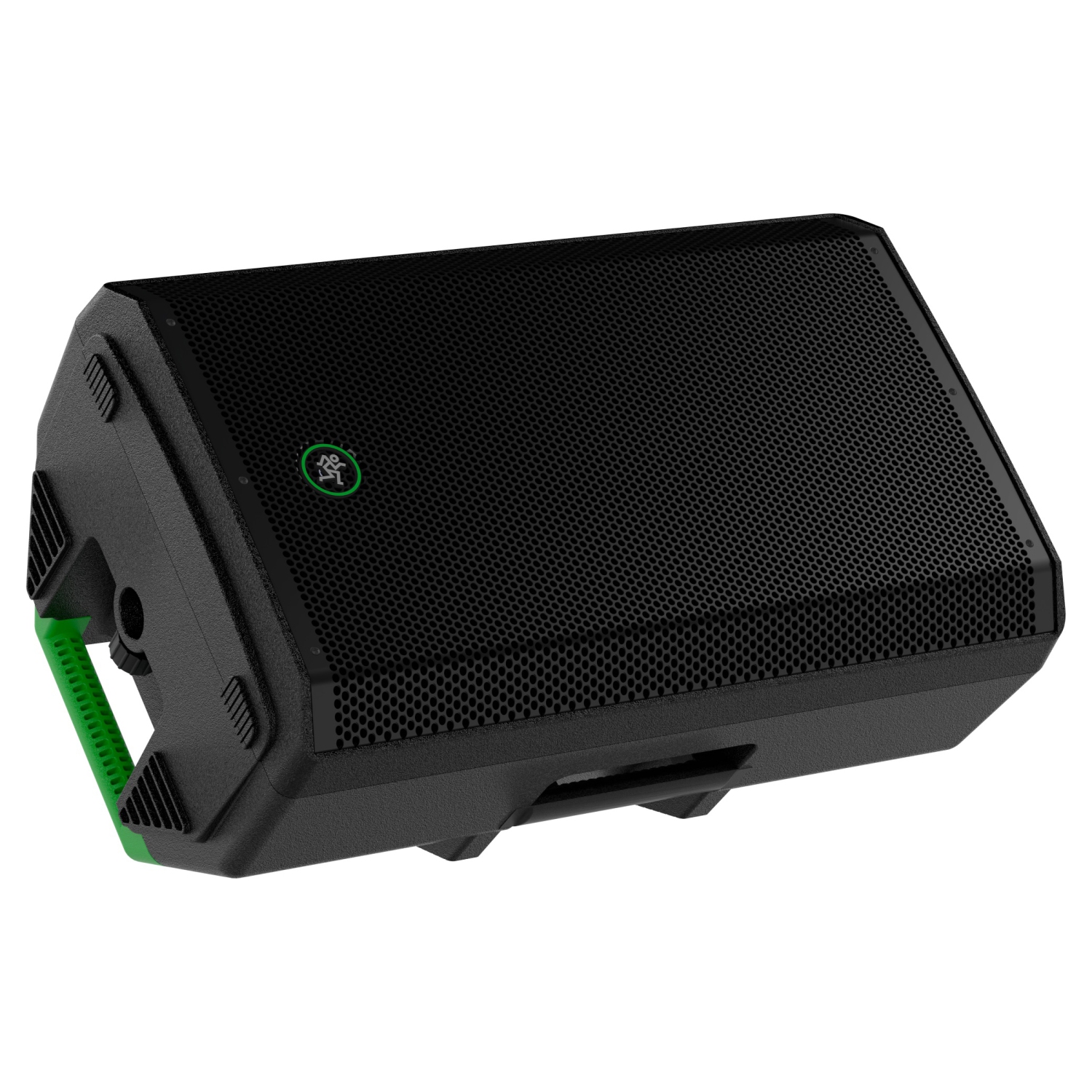

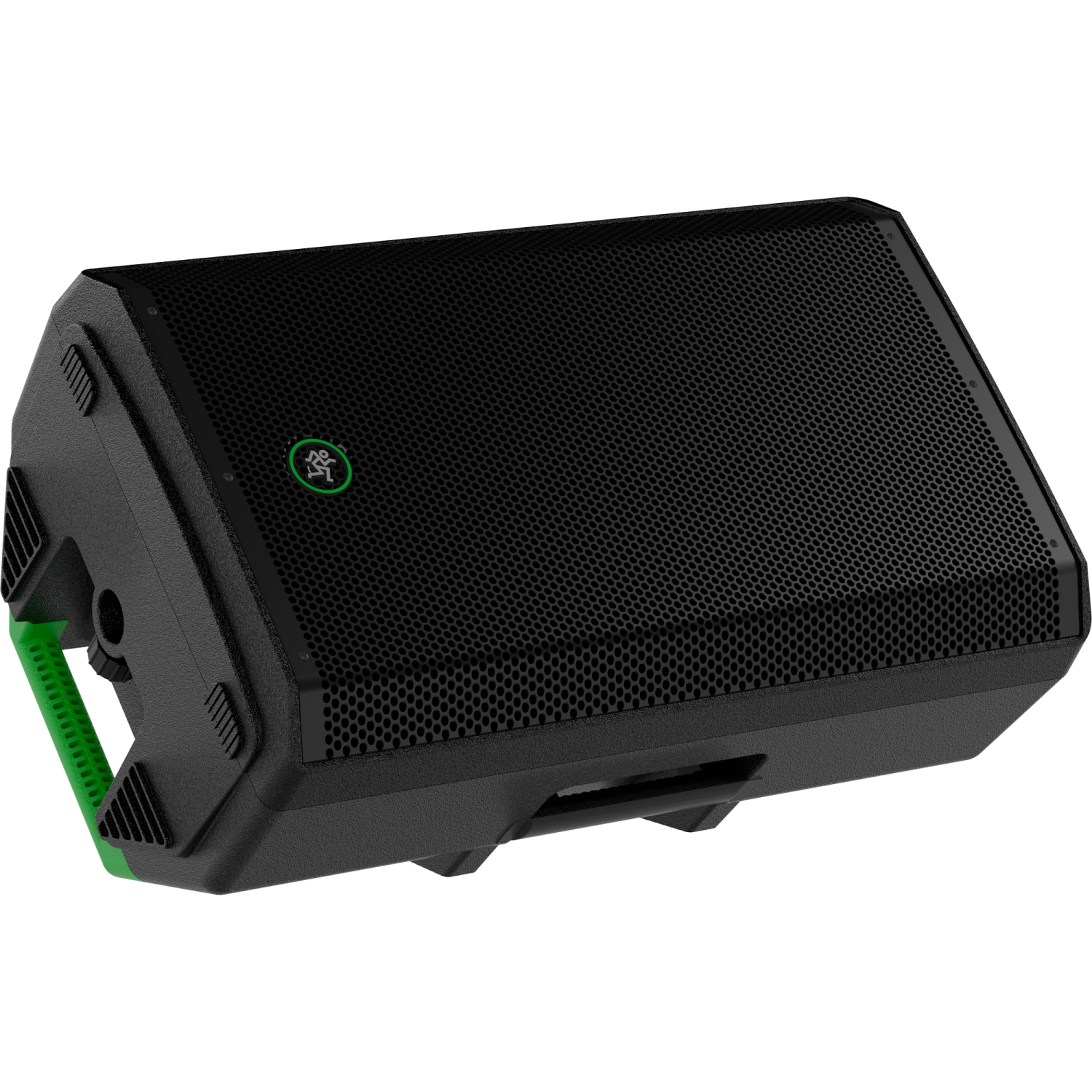

* Dual-angle monitor wedge for use as a floor monitor
* Rotatable grille badge
Specifications
Acoustic Performance
Frequency Response: 38 Hz - 20 kHz (-10 dB)
Horizontal Coverage: 90 degree
Vertical Coverage: 60 degree
Maximum SPL: 125 dB
Monitor Angle: 45 degree
Transducers
Low Frequency: 15 in / 381 mm
High Frequency: 1.0 in / 25 mm titanium high frequency driver
Power Amplifiers
Rater Power: 1300 Watts peak
Low Frequency Power Amplifier
- Rated Power: 1000 Watts peak
- Rated THD: < 1%
- Design: Class D
High Frequency Power Amplifier
- Rated Power: 300 Watts peak
- Rated THD: < 1%
- Design: Class D
Input/Output
Input Type: 2x Female XLR - 1/4" Balanced, TRS combo jack
Mic Impedance: 20kOhm Balanced
Line Impedance: 1 MOhm Unbalanced Hi-Z
Mix Out: Male XLR Balanced
Mix Out Impedance: 600 Ohm Balanced
Crossover Frequency: 2.4 kHz
Line Input Power
Detachable line cord: 100 - 240 VAC, 50-60 Hz, 75W
AC Connector: 3-Pin IEC 250 VAC, 10 A male
Power Supply Type: Switchmode
Safety Features
Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
Display LED: Rear panel power / overload
Mounting Methods
Floor mount, pole mount via the build-in socket on the bottom of the cabinet. Not suitable for rigging.
Dimensions (H x W x D): 771 x 434 x 363 mm / 28.0 x 17.1 x 14.3 inches
Weight: 18.5 kg / 40.8 lbs
