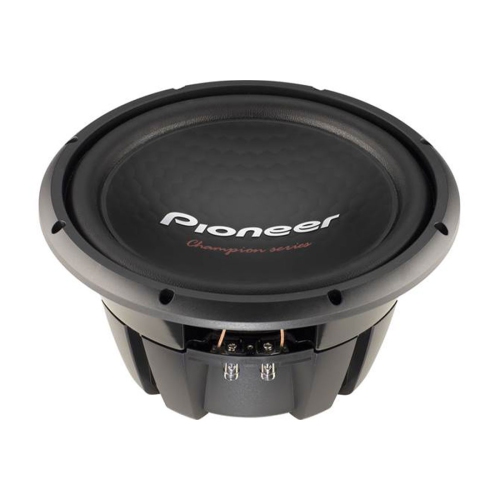

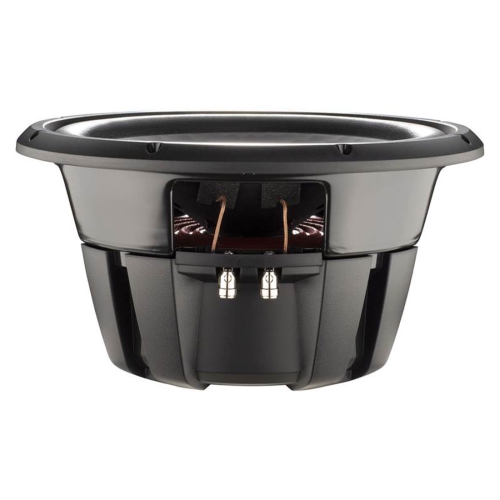

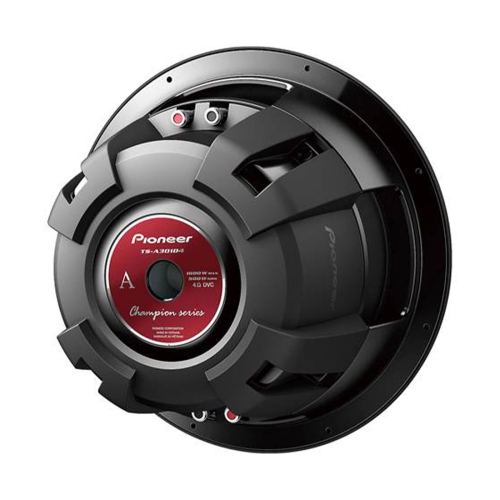

Pioneer TS-A301D4 Champion Series 12″ 1600 W Dual 4 Ohm Component Subwoofer

The Champion Series subwoofers have evolved from Pioneer’s award winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301D4 12” dual-voice coil component subwoofer features a re-designed large and powerful motor assembly for improved efficiency and sensitivity. The subwoofer baskets are optimized using a reinforced structure design for added strength and reduced vibration to deliver excellent sound quality. This subwoofer has continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece cone designed with a highly rigid and durable Honeycomb IMPP™ composite cone structure plus a rigid drive cone to deliver high output levels with reduced distortion.

•12" Dual 4 ohms Pioneer Champion Series Subwoofer

•Power Handling: Peak: 1600 watts

•Power Handling: RMS: 500 watts

•Injection Molded Polypropylene - IMPP Cone

•Elastic Polymer Surround

•Durable Honeycomb IMPP™ Composite

•Steel Basket Material

•High Temperature Aluminum Voice coil

•11.3 mm Xmax

•90 oz. Double Stacked Ferrite magnet motor structure

•Frequency Response: 20 - 1600 Hz

•Resonance Frequency (Fs): 38 Hz

•Sensitivity: 92 dB

•Sealed box volume: 1.25 cubic feet

•Ported box volume: 1.5 cubic feet

•Top-mount depth: 6.13"

•Cutout diameter: 11.13"

•Protective subwoofer grille: No
