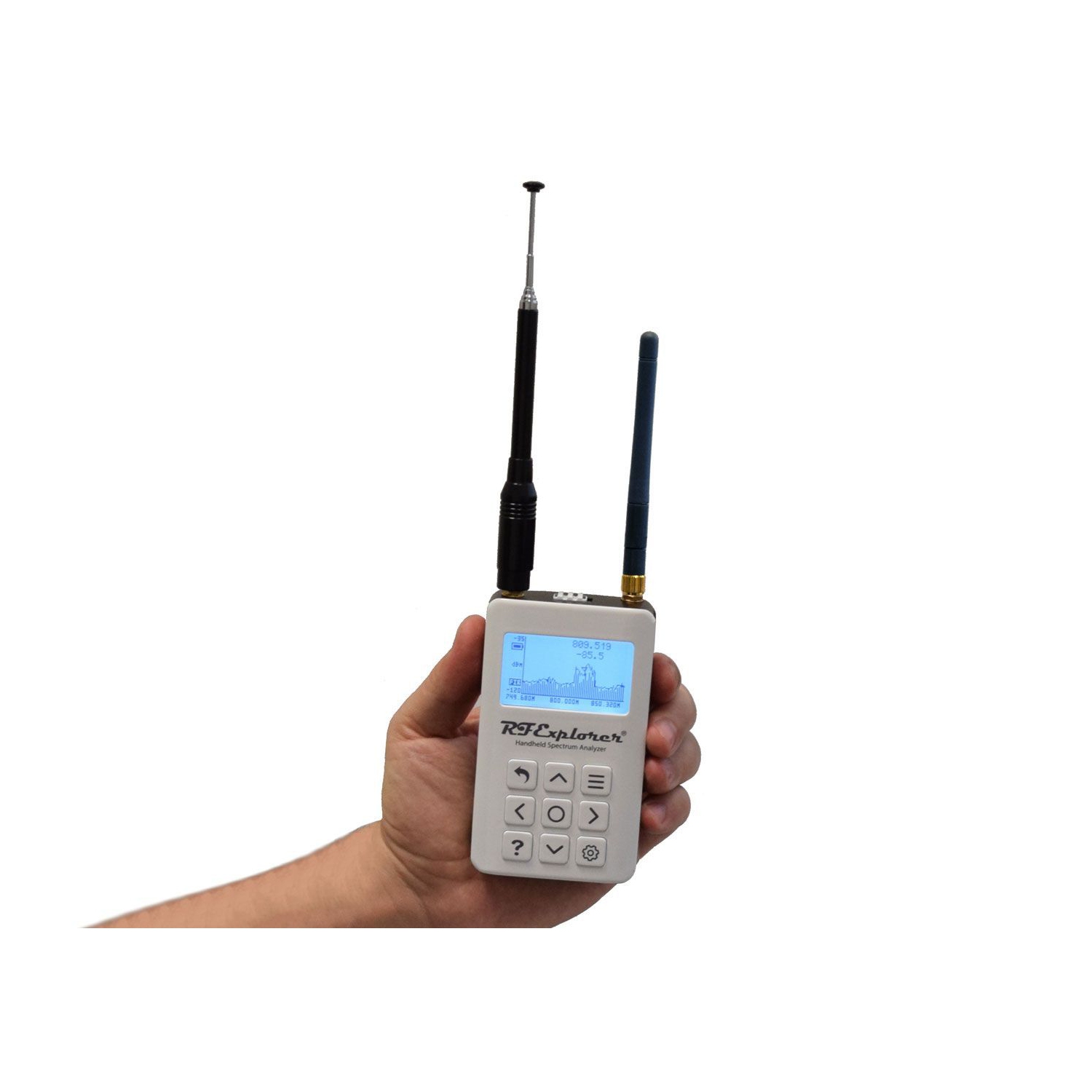

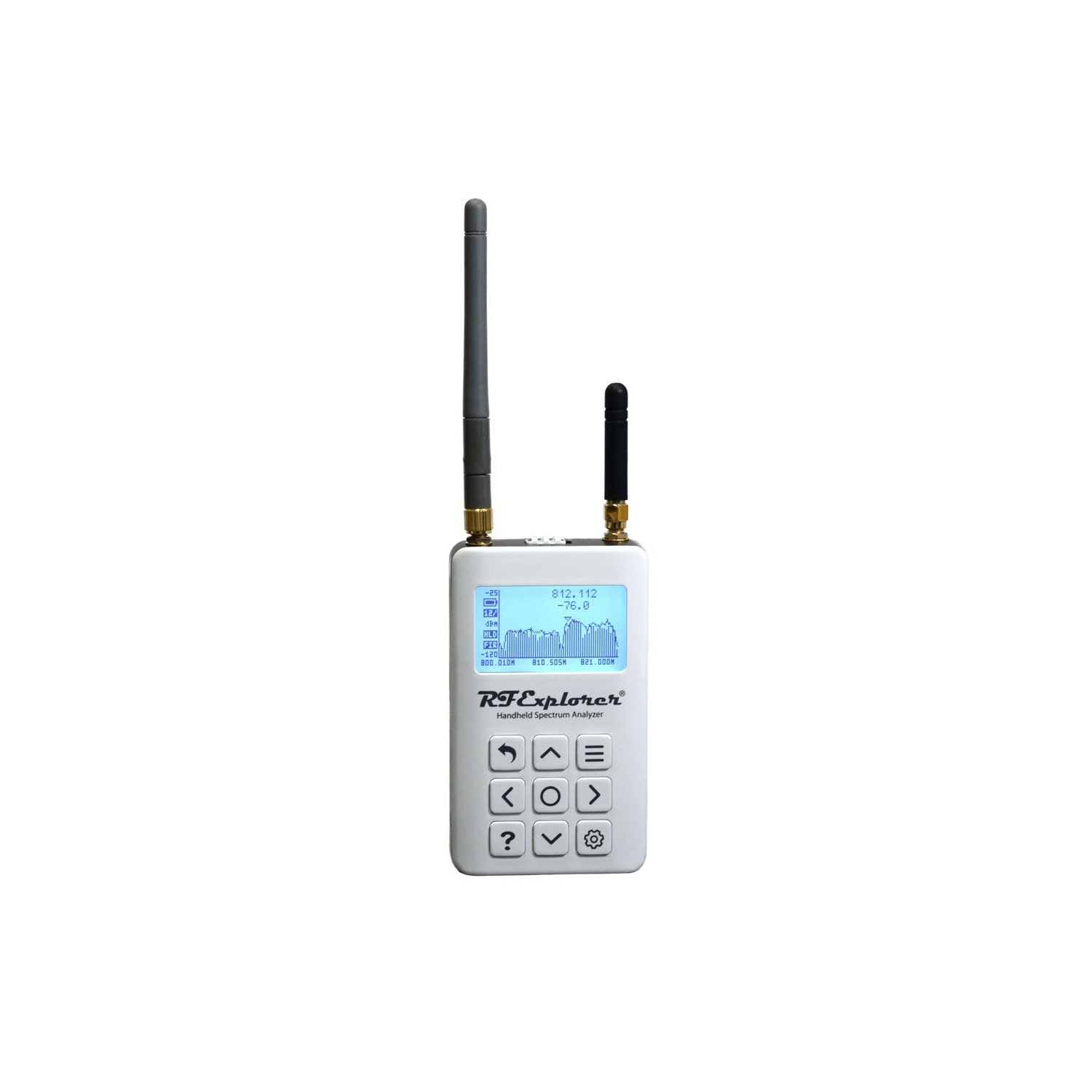

RF Explorer Spectrum Analyzer ISM Combo PLUS - Slim

RF Explorer Spectrum Analyzer ISM Combo PLUS - Slim (50KHz-960MHz)(2.35GHZ-2.55GHZ)

Model: ISM COMBO SLIM
Web Code: 14772009
Sold and shipped by | 4.4 seller rating (25 reviews)

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Overview

RF Explorer ISM COMBO+ is a powerful, high-performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz, and 2.35GHZ to 2.55GHz for scanning the popular 2.4GHz band.
GeneralInterface-Warranty

Warranty

No information available.

Seller Return Policy

Read return policy

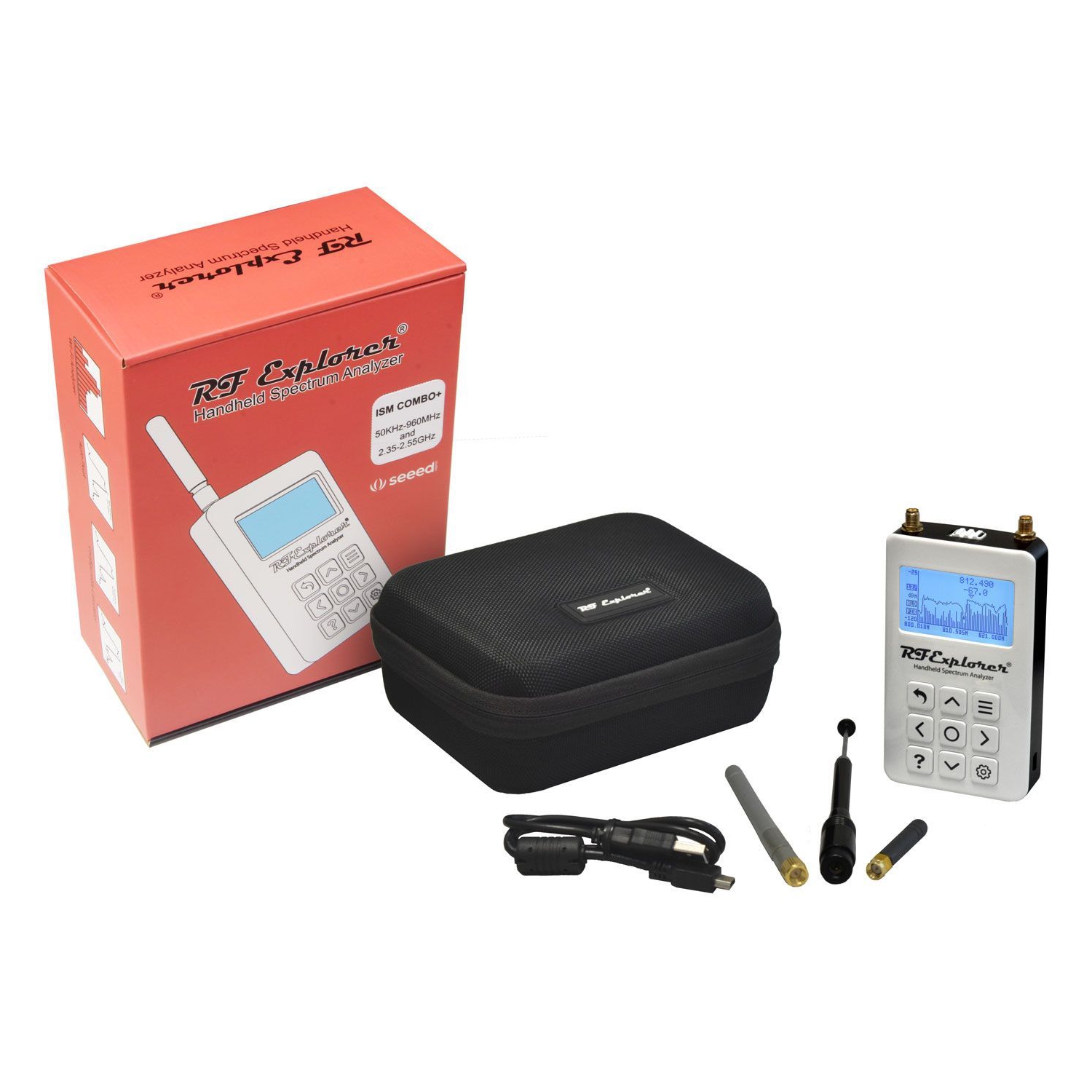

What's included:

  • 1 x Spectrum Analyzer
  • 1 x Mini USB cable
  • 1 x Dual band 144/430MHz Telescopic antenna
  • 1 x UHF 400-900Mhz antenna
  • 1 x 2.4GHz whip antenna
  • 1 x EVA case

Specification:

Frequency band:

* Left connector: 0.05 – 960MHz

* Right connector: 2350 – 2550MHz

Frequency span:

* Left connector: 0.1 – 960MHz

* Right connector: 2 – 85MHz

- Internal selectable LNA 25dB gain with the left connector

- Internal selectable Attenuator 30dB with the left connector

- Signal generator covering up to +11dBm output power with the right connector.

- Wifi Analyzer for the 2.4GHz band

- Graphics LCD 128x64 pixels, great visibility outdoors

- Support included for Windows, Linux and MacOS X

- Backlight for great visibility indoor

- Internal Lithium Ion 1800mA/h rechargeable battery

- Standard SMA 50 ohms connector

- Wideband 144/433MHz dual band telescopic antenna included

- UHF 400-900MHz rubber duck articulated antenna included

- 2.4GHz whip antenna included

- Amplitude resolution: 0.5dBm

- Dynamic range: -125dBm to 10dBm

- Absolute Max input power: +30dBm

- Average noise level (typical LNA): -125dBm

- Frequency stability and accuracy (typical): +-10ppm

- Amplitude stability and accuracy (typical): +-2dBm

- Frequency resolution: 1Khz

- Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

Note: RF Explorer is a very sensitive spectrum analyzer, specially designed to detect signals with aerial antenna. For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest using a RF Explorer Power Limiter.

Colour
White
Other Features
Internal LNA amplifier and selectable attenuator in the sub-1GHz band.; Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz; High frequency support for 2.4GHz band starting at 2.35GHz and covering up to 2.55GHz.; New HELP and SET buttons to improve user interface and configuration selection with 2-clicks; Excellent performance to diagnose and generate signals in the 2.4GHz ISM band.; Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID,
Power Source
Lithium Cells / Batteries contained in equipment UN3481 - PI967
Batteries Included
Yes
Country of Origin
China
Width
13 cm
Height
7 cm
Depth
18 cm
Weight
543 g
