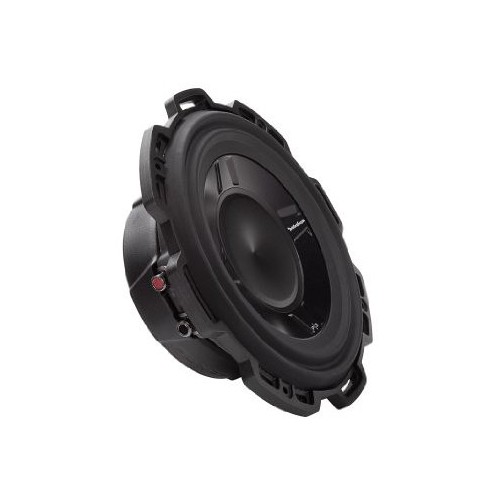

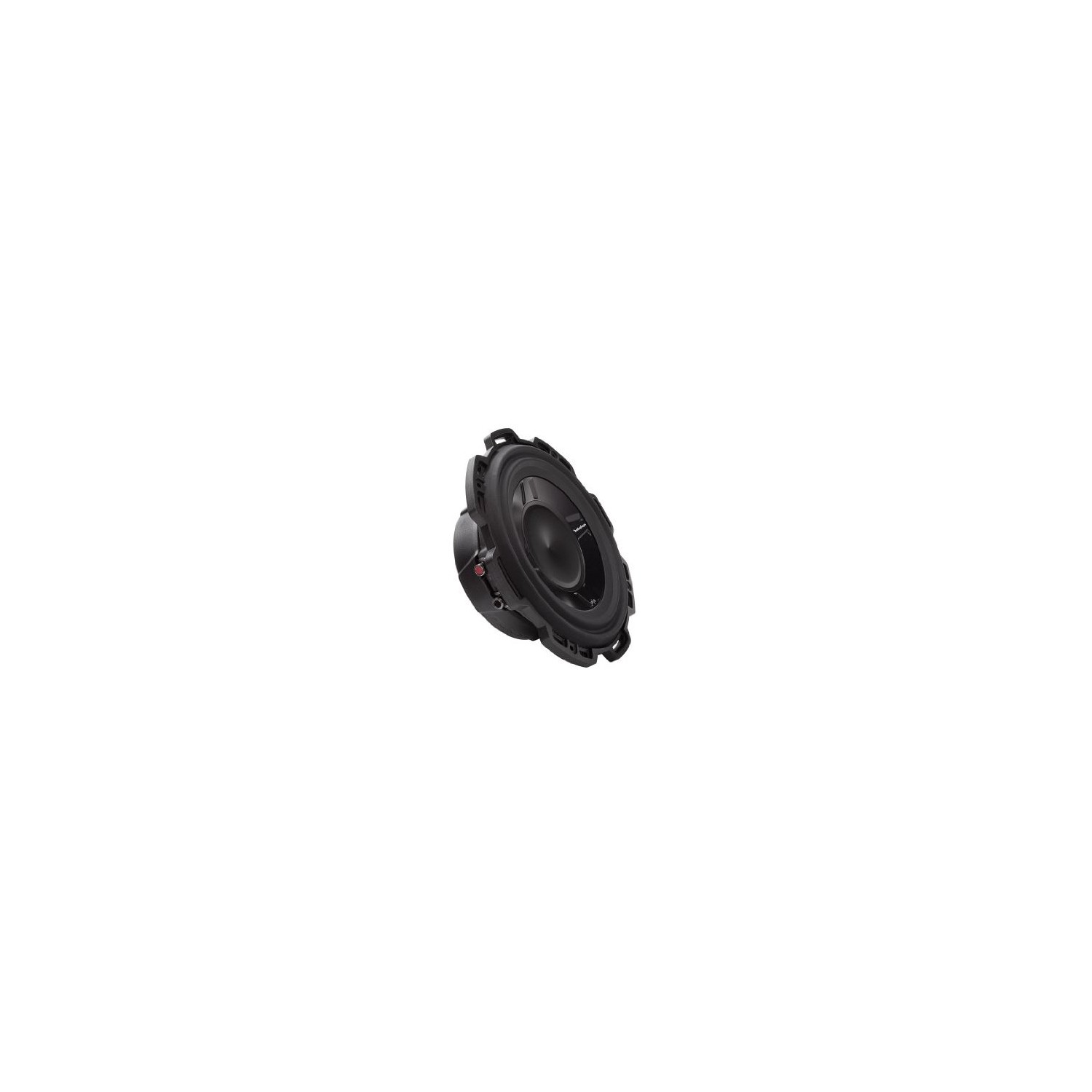

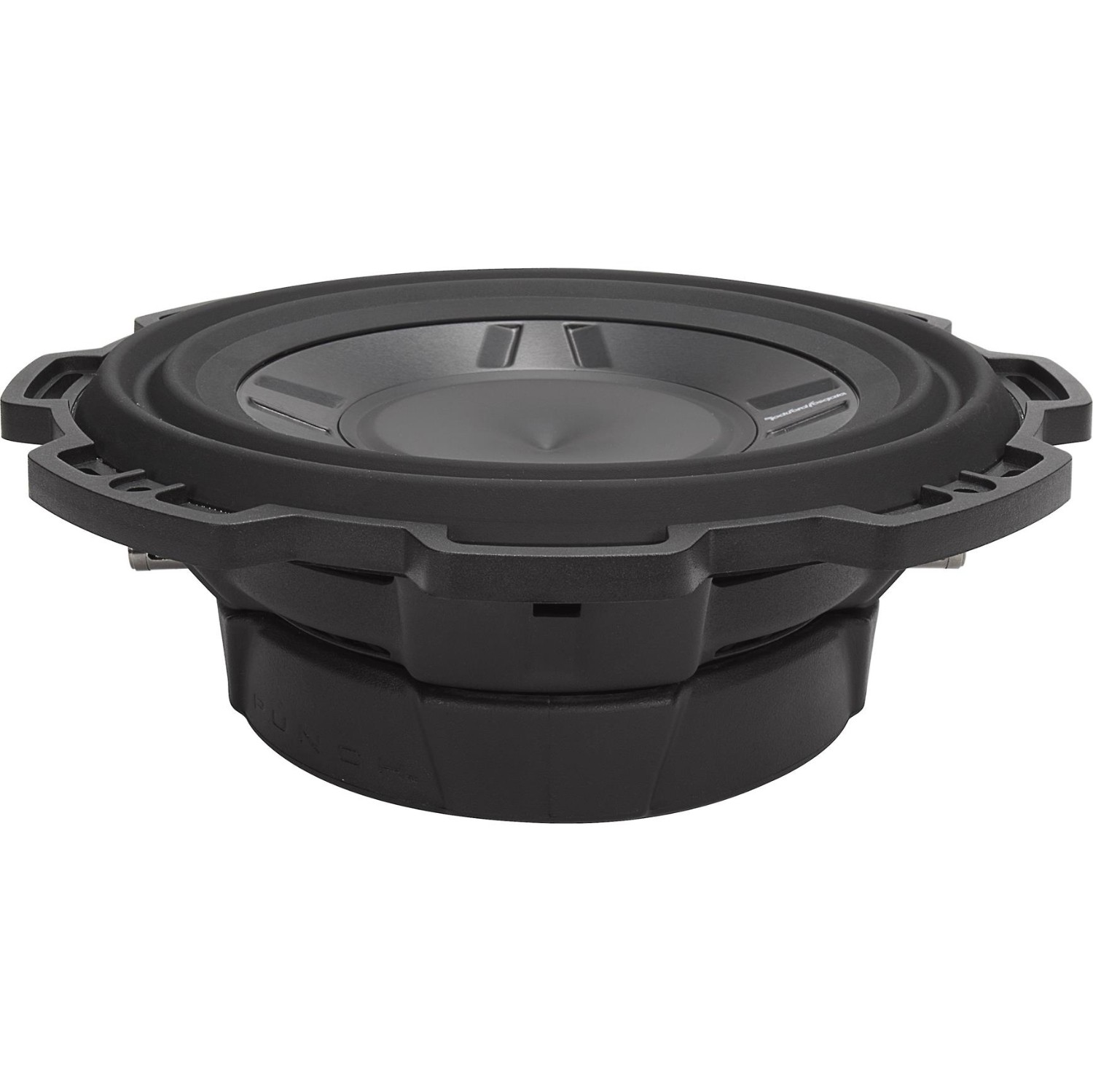

Rockford Fosgate P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used. M-Roll Santoprene™ surround StampCast basket with integrated spider venting Anodized aluminum cone and dustcap Dual linear spider with embedded 16 AWG tinsel leads Diamond cut cast aluminum trim ring with optional grille Shallow Motor Assembly Optimized for both sealed and vented enclosures. Magnet Weight (kg) NOT USED1.32 oz. (47 kg.) Nominal ImpedanceDual 4-Ohm Magnet Weight (oz)47 oz. (1.32 Kg) Voice Coil Diameter2.5" (65.5 mm) SPL (dB @ 1w/1m)83 Fs (Hz)42 Qms6.00 Vas (Liters)14.3 Cutout Diameter9.06 in. (230.0 mm) Woofer Displacement0.074 cu. ft. (2.1 Liters) Sd (cm2)333 Size10" Speaker ConnectorDual 10 AWG Compression Mounting Depth3.50 in. (89.0 mm) Shipping Weight11.9 Lbs. (5.39 kg.) Qts0.78 Qes0.90 Xmax (mm)8.1 CEA-2031 CompliantCEA-2031 Guidelines Power Handling (Watts RMS)300 Watts RMS 600 Watts Max Re (Ohms)6.80 Le (mH)4.3 Subwoofer TypeShallow Voice Coil TypeDual Voice Coil Sealed Box Volume (Vb)0.5 cu. ft. (14.1 Liters) Vented Box Volume (Vb)1.0 cu. ft. (28.3 Liters)
