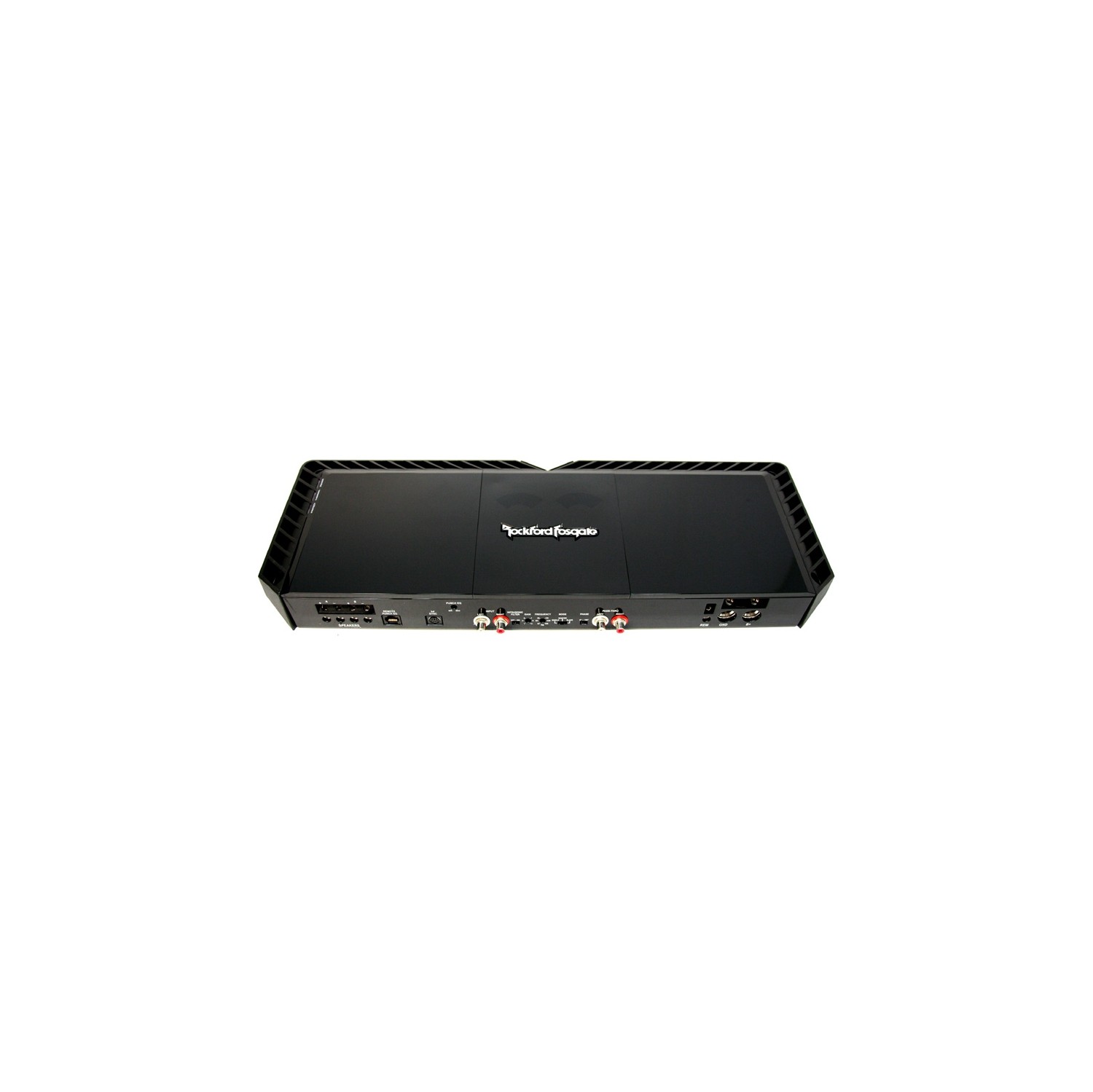

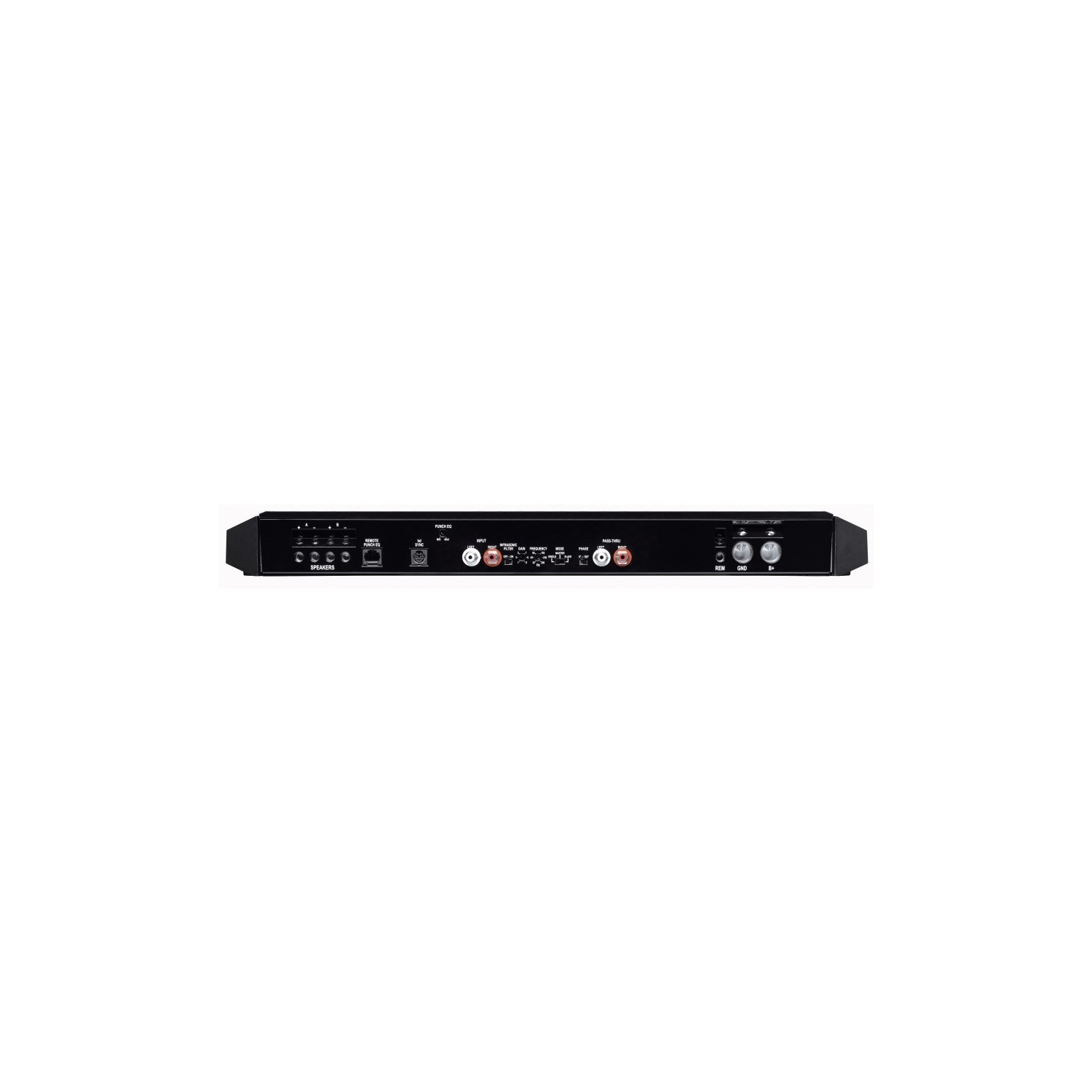

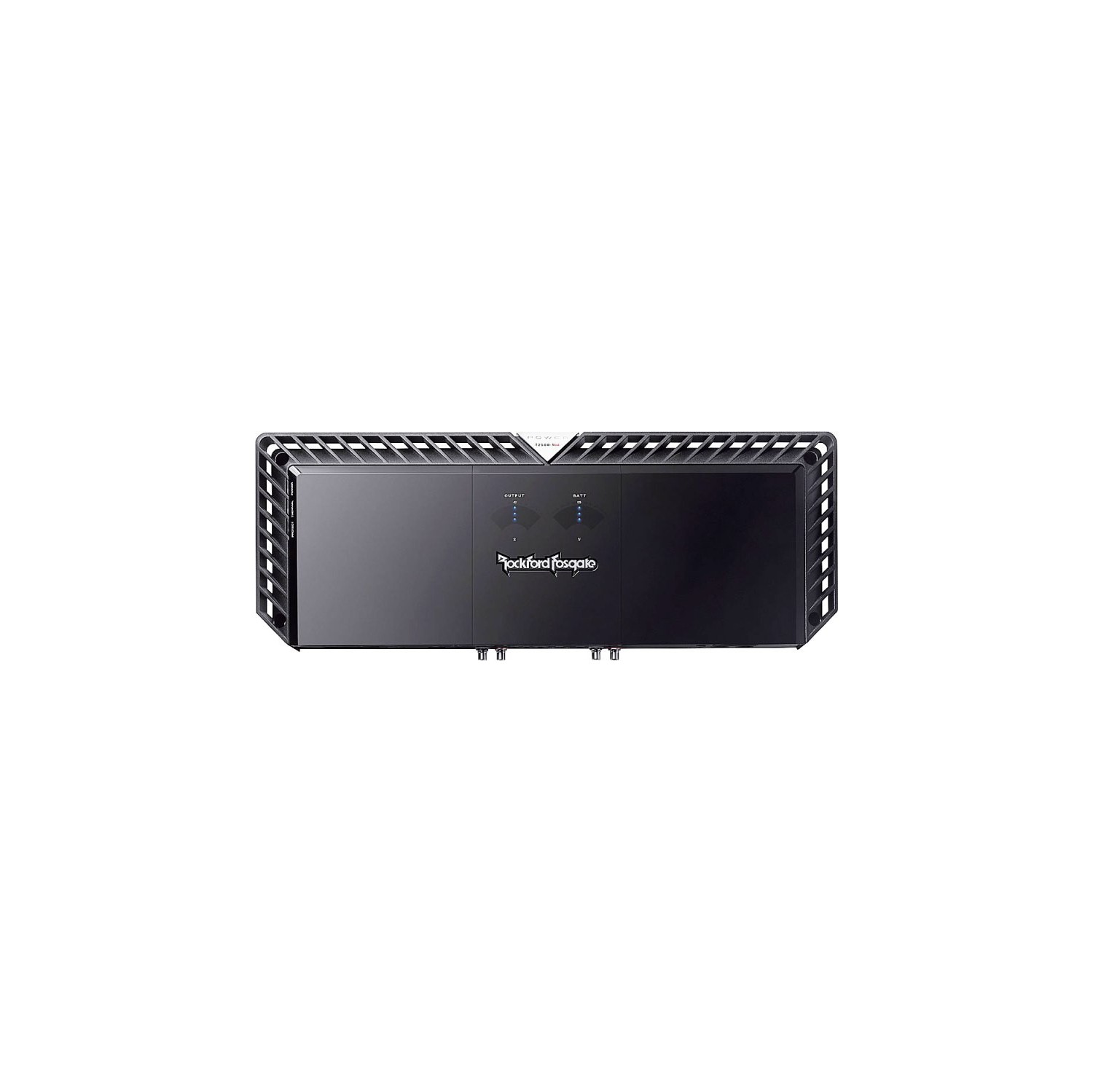

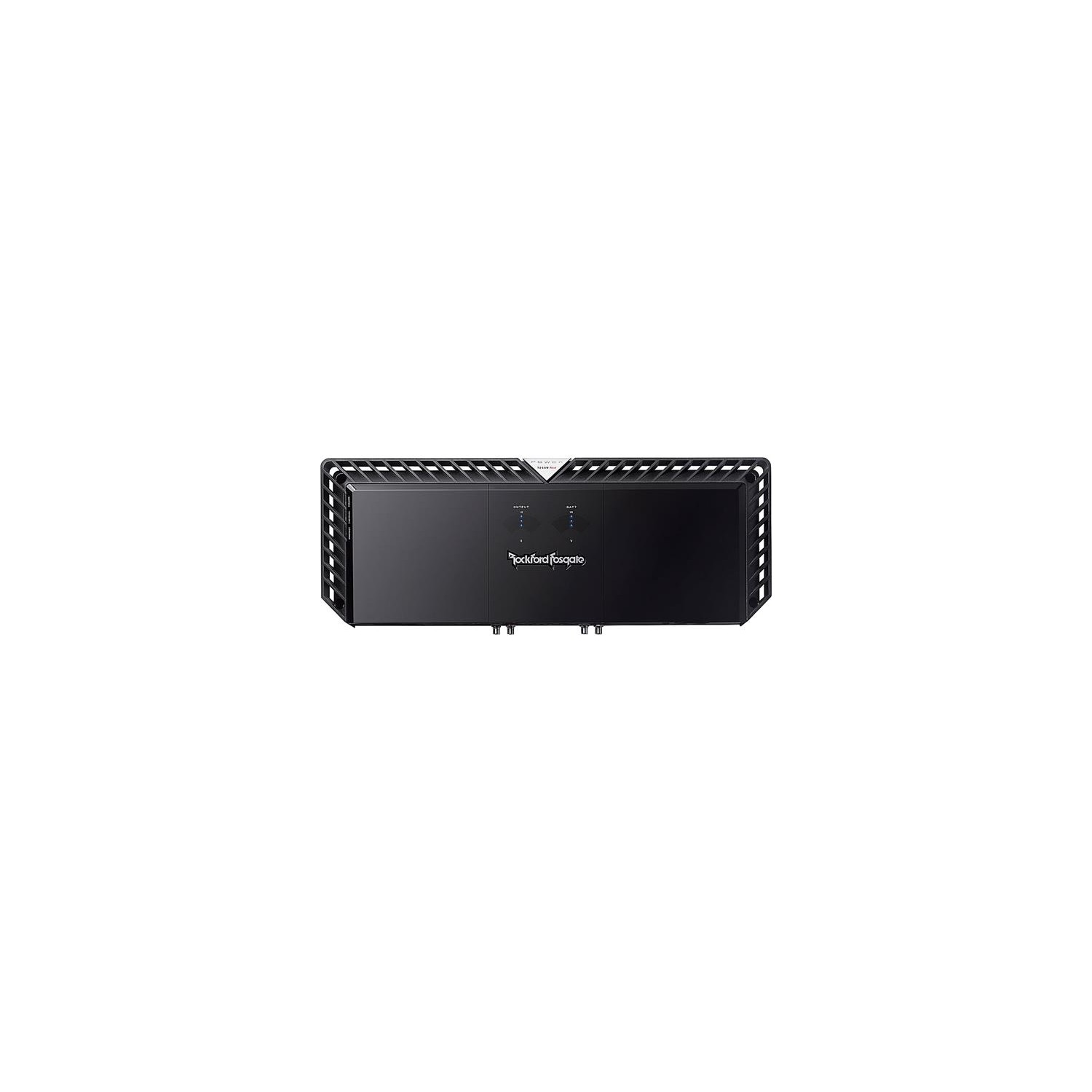

Rockford Fosgate T2500-1BDCP Power 2500 Watt Class-bd Constant Power Amplifier

The T2500-1bdCP is based on the legendary T2500-1bd amplifier design with a proprietary "Constant Power" configuration that delivers up to 25% more power (Watts) across all impedance loads. The result is a listening experience cleaner, louder and more impressive than ever before. This T2500-1bdCP amplifier pumps out 2,500 watts, easily driving any array of woofers wired to a 1-ohm load. Use two amps in Power-Sync mode for a whopping 5,000 watt power horse! 24dB/octave crossover 1/0 AWG power/ground connectors Audiophile grade speaker connections Infrasonic filter MOSFET power supply MOSFET output stage RCA pass-thru outputs PowerSync - allows 2 amplifiers to be "strapped" together MasterSync - allows 1 amplifier to control an array of amplifiers 0°/180° Phase Switch Blue L.E.D. Simulated VU Signal/Power Meters. Number of Channels1 CEA-2006 CompliantCEA-2006 Guidelines CEA-2006 Power Rating 1500W x 1 @ 4Ω ≤1.0% THD+N Rated Power (RMS Continuous Power)1500 Watts x 1 @ 4-Ohm 2500 Watts x 1 @ 2-Ohm 2500 Watts x 1 @ 1-Ohm Two amplifiers in bdSYNC: 5000 Watts x 1 @ 2-Ohm Total Power (Sum of Rated Power)2500 Watts RMS Dynamic Power (PVC/PowerCube®)1823 Watts x 1 @ 4-Ohm 2940 Watts x 1 @ 2-Ohm 2980 Watts x 1 @ 1-Ohm BridgeableYes (two amps can be "strapped" together using bd-Sync2 cable to create one monster amplifier) Frequency Response20Hz to 250Hz +/-0.5dB Signal-to-Noise (CEA)75 dB Circuit Topology ClassClass BD Channel Separation— Common Mode Rejection68 dB Efficiency (average)81.9% @ 4-Ohm 77.7% @ 2-Ohm 64.5% @ 1-Ohm Total Harmonic Distortion (THD+Noise)4-Ohm: 200 Remote ControlsOptional Remote PEQ (overrides built-in Punch Bass) Visual IndicatorsPower (Blue LED) Thermal (Red LED) Protect (Yellow LED) Output -00dB to +2dB @ 11 steps (Blue LEDs) Battery 9VDC to 16VDC @ 11 steps (Blue LEDs) Power Input ConnectorBlock Power Wire Gauge1/0 AWG Speaker Output ConnectorBlock Speaker Wire Gauge8 AWG to 16 AWG CoolingConvection Heat Sink TypeCast aluminum Operating Voltage9 - 16 VDC Recommended Fuse (not included)300 A Average Current Draw (13.8V Music)175 A Max. Current Draw (13.8V Sinewave)350 A Suggested Alternator200 A Dimensional Diagram Dimensions (H x W x D)2.14 x 8.14 x 21.875 (in) 5.44 x 20.68 x 55.66 (cm) Shipping Weight21.7 Lbs. (9.84 Kg.)
