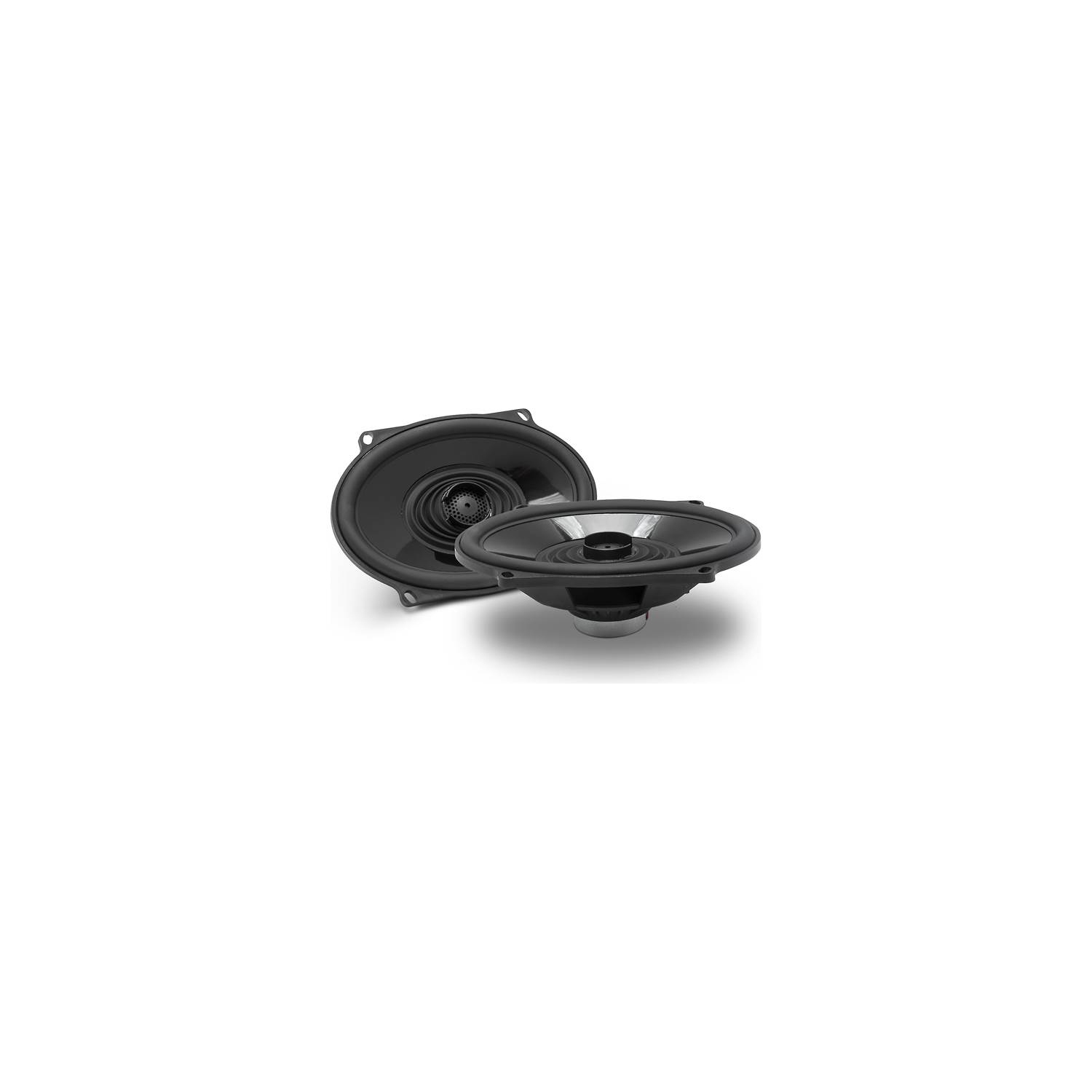

Rockford Fosgate TMS57 Power 5"x7" Harley-Davidson Replacement Bag Lid Speakers

Do you enjoy hitting the road on your motorcycle but are tired of not enjoying your music because you can't hear it when riding? The Rockford Fosgate TMS series of motorcycle speakers solve that problem. The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® "Boom!™ Audio" and "Boom!™ Audio Stage-I" bag lids. NOTE: This is NOT compatible with "Boom!™ Audio Stage-II" systems, nor do we recommend modifying the speaker to fit on Stage-II systems. See Compatibility Tab for complete motorcycle fit guide.

It features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.

Boom! is a trademark, Harley and Harley-Davidson are registered trademarks of H-D U.S.A., LLC.

Element Ready design that is weather and water resistant

Carbon‐Fiber Re‐Inforced Polypropylene Cone

Santoprene VAST Surround

Co‐Molded Cone and Surround

Poly‐Cotton Spider

Santoprene Front Isolation Spider

High Power 35mm Voice‐Coil

Ultra‐Efficient Neodymium Dual Magnet Motor Structure

Ultra‐High Temperature Glass Re‐Inforced Polymer Frame

Integrated Spade Terminals

Integrated 6dB Crossover with High Power Polyester Capacitor

Ultra‐Efficient 25mm Proprietary Film Dome Tweeter

Neodymium Tweeter with Integrated Phase Plug and ASA Grill

Low Profile Coaxial Tweeter Design

Discreet (Hidden) Tweeter Wire

Factory H-D® connector for plug-n-play operation

CEA-2031CEA-2013 Guidelines

Speaker Type2-Way

Midrange Size

(Nominal Diameter)5" x 7"

Midrange Mounting Depth2.2" (55 mm)

Frequency Response61 Hz - 20 kHz

Power Handling100 Watts RMS

Impedance4Ω

Sensitivity89 dB (1w/1m)

92 dB (2.8V @ 1m)

Grille/Trim Ring IncludedNo

Mounting HardwareYes

Included In The Box(2) TMS57

(2) Aluminum Diamond-R Badges

Shipping Weight2.95 Lbs. (1.34 Kg)
