The definitive choice for new musicians, supporting growth with an array of quality, expansive features at an affordable price.
Premium Sound
ZEN-CORE Sound Engine with over 3500 iconic, futuristic, and essential sounds
Expandability
Access Roland Cloud for new sounds
Playability
New keybeds from our FANTOM-0 series and optimized intuative workflow
Portable Power
Compatible with mobile batteries, robust build, and lightweight
Direct Audio Streaming
Class-compliant for straightforward laptop and smartphone connectivity via USB-C for direct audio streaming, recording audio and MIDI.
SpecificationsKeyboard

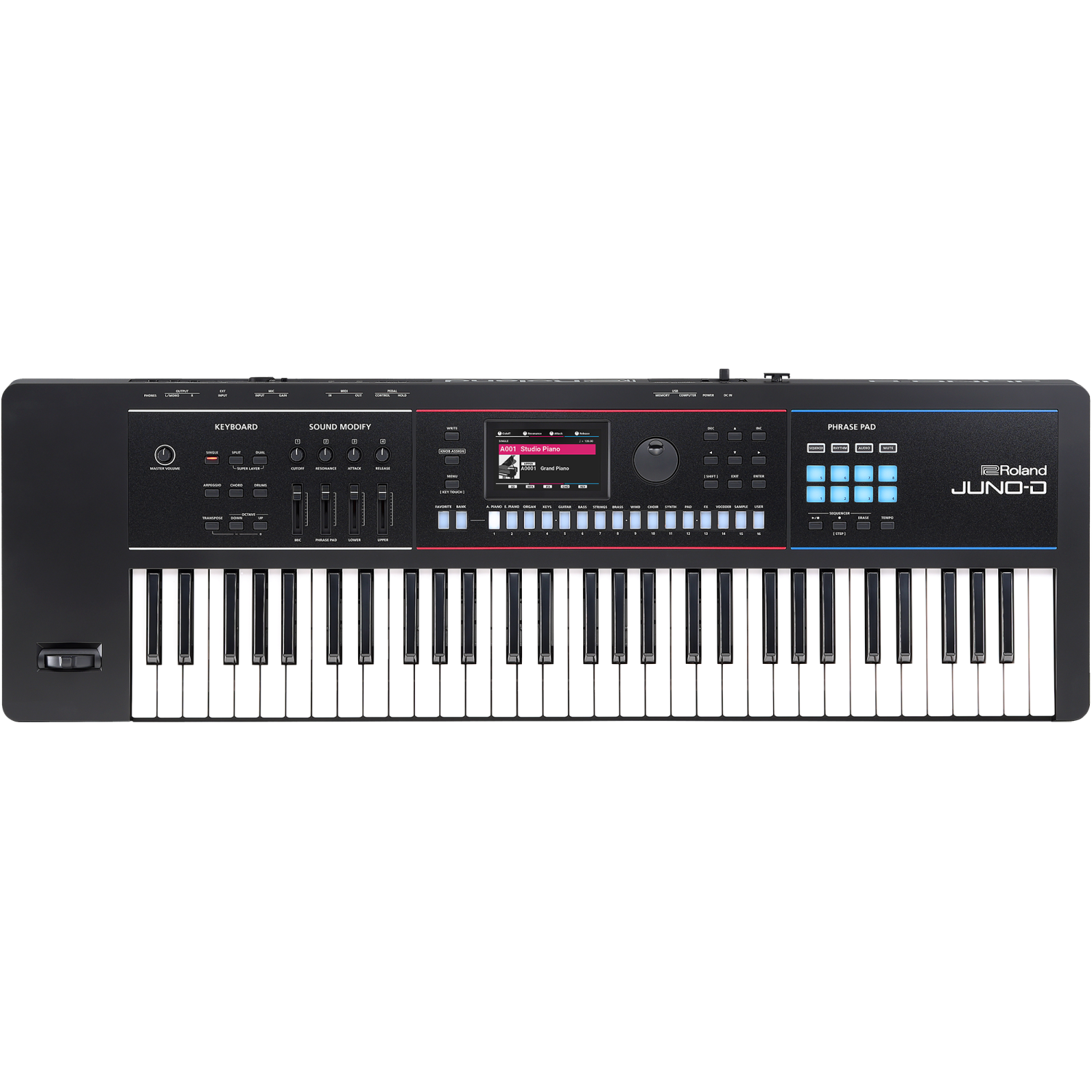

JUNO-D6: 61 keys (with velocity)
Tones
- 3,800 tones or greater
- 95 Drum kits or greater
Expansion
- EXZ Series
*The expansion are rewritable internal sound generator memory.
*You can download data from the Roland Cloud and write it via a USB flash drive into the internal memory.
Preset Scene
- 128 scenes x 2 bank
User Scene
- 128
Scene Remain
- Yes
Favorite
- 128
Effects
- Multi-Effects: 8 systems, 93 types
- Part EQ: 8 systems
- Drum Part COMP: 6 systems
- Insertion Effect: 1 system, 93 types
- Chorus: 10 types
- Reverb: 8 types
- System EQ: 1 system
- Mic Reverb: 8 types
- Mic NS/Comp
Vocoder
- Band: 13
- Type: Mono
Step Sequencer
- 8 Tracks (per secne)
- Maximum 64 steps
- Recording Method: Realtime recording, Step recording, TR-REC
- Editing Method: Step edit
Audio File Player Section
- Audio file: WAV, AIFF
- File format: 44.1/48 kHz, 8/16/24 bits
Controllers
- Pitch Bend/Modulation lever
- Sound Modified knob x 4
- Slider x 4
- 2 x 4 Pads
Display
- Graphic color LCD (480 x 272 dots with backlight)
Connectors
- Headphones jack: Stereo 1/4-inch phone type
- MAIN OUT jacks (L/MONO, R): 1/4-inch TRS type
- Mic Input jack: 1/4 inch phone type/XLR type
- External Input jack: Stereo miniature phone type
- FOOT PEDAL jacks(HOLD, CONTROL)
- MIDI connectors (IN, OUT)
- USB MEMORY port: Type-A (Storage)
- USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
External Memory
- USB Flash drive (sold separately)
Power Supply
- AC Adaptor
- USB bus power supply (USB Type-C(R) port)
*External power supply from a USB Type-A port isn't available.
Current draw
- 700 mA (AC adaptor)
- 2,000 mA (USB bus power supply)
Power consumption when in OFF mode (when the power automatically turns off)
- 0.2 W
Dimensions
- 1,005 x 324 x 94 mm (9-5/8 x 12-13/16 x 3-3/4")
Weight
- 5.8 kg (12 lbs 13 oz)
Accessories
- Startup Guide
- Leaflet "USING THE UNIT SAFELY"
- AC adaptor (PSB-5U)
- Power cord
