The world’s first* touch-screen operated light
meters with unique features for both still and motion imagers.
Product Highlights
Color Touch Screen Interface
Still, Cine, Incident, Reflected, Flash Exposure Meter
Custom Exposure Profiles and Calibration
Flash Exposure Analyzing Function
Adjustable Menu Navigation
Retractable and Removable Lumisphere
AAA Battery Power Source
Overview

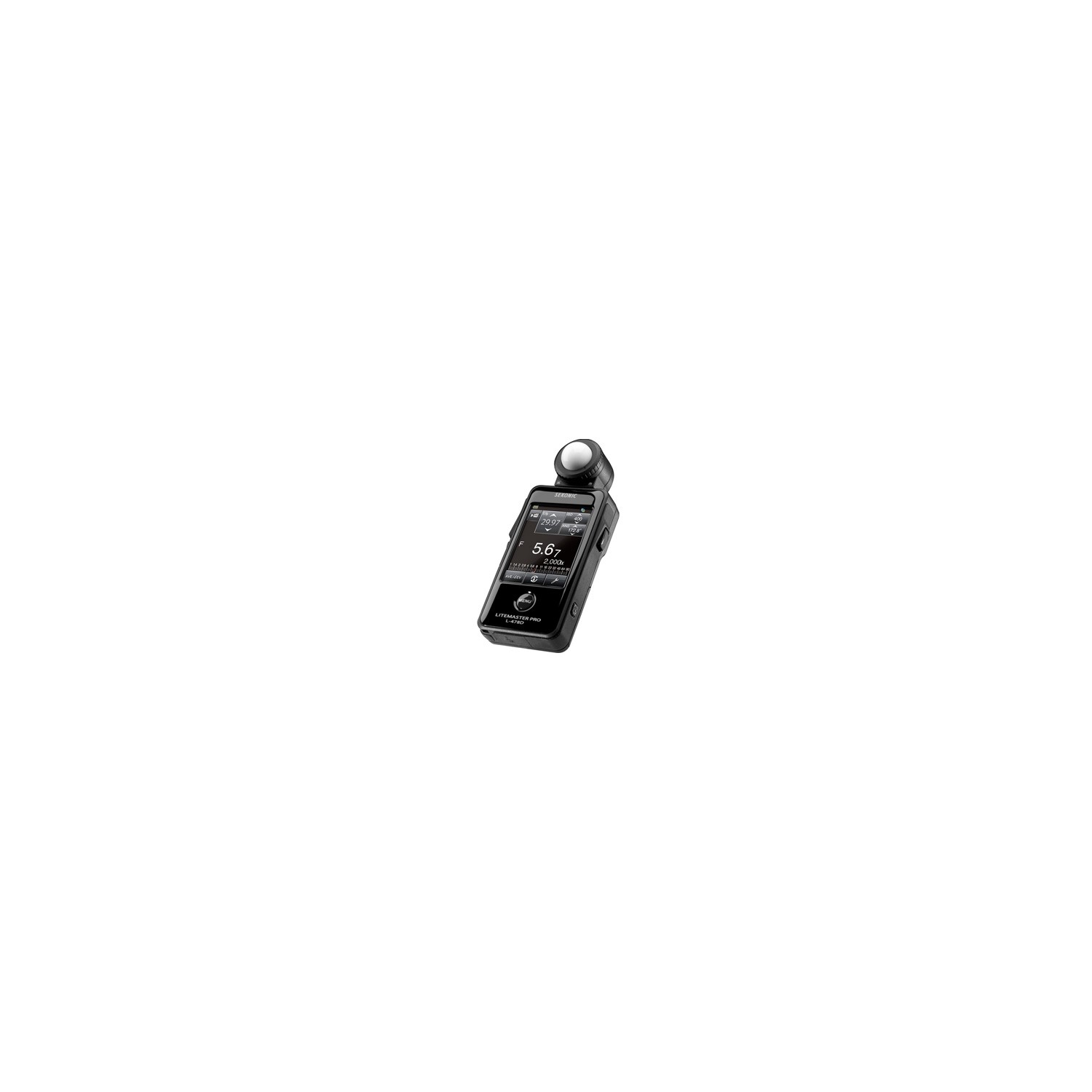

The Sekonic Litemaster Pro L-478D Light Meter is the first flash meter featuring a color touch screen interface. The touch screen-based navigation lends itself to a highly intuitive and efficient workflow, allowing you to quickly modify exposure settings and navigate menus. This meter is also highly versatile and capable of measuring flash, incident and reflected light for still, HD video, or cine applications.
The L-478D can be customized or adapted to your own specifications; depending on the metering modes you use most often, you can hide certain modes to create a more streamlined menu system. Exposure constants include shutter speed, f/-number, ISO, shutter angle, and frame rate; and the exposure variable can be decided upon depending on the situation you are working in. Illuminance and luminance values can also be taken, which are measured in footcandles/lux or candela per square meter/foot-lamberts, respectively. For more fine-tuned results, you can create and input personal profiles, allowing the meter to display exposure settings in accordance with your specific camera's dynamic range and clipping points.
Color Touch Screen Interface and Design
The touch screen provides a more intuitive style of navigation and allows you to simply touch the settings you wish to adjust. Menu navigation is intuitive and the handling of various configurations becomes an expedited process.
Simple visual layout provides a clear view of your exposure setting and permits customization in regard to the information you wish to be displayed (including a choice of analog exposure scales (EV or f/-stops); 1, 1/2, or 1/3 step increments; the inclusion of 1/10 stops; and the option to hide metering modes you do not use frequently).
One physical menu button provides access to a more in-depth menu system that is then navigated through the touch screen. This menu allows for you to program exposure profiles and modify custom settings for your meter.
Measure and memory buttons are located on the side of the device for recording and initiating exposure readings. A PC sync terminal is located on the bottom of the device for direct, corded flash metering. A USB terminal is located on the side and provides a connection point to your computer for firmware updates and for loading exposure profiles to your meter. The attached light receptor features a retractable Lumisphere that can be rotated 90° clockwise or 180° counter-clockwise. It is also removable in order to facilitate the use of optional attachments.
Versatility Between Metering Methods
Ability to measure incident or flash light and display exposure readings as f/-numbers, shutter speeds, or ISO settings for use with still imaging, HD video, and cine uses. Exposure constants also include frame rate and shutter angle for a variety of motion uses.
Also capable of measuring illuminance as footcandles/lux or luminance as candela per square meter/foot-lamberts.
Flash metering can display the percentage of flash-to-ambient light within the scene for precise lighting ratios.
Comparative metering can be accomplished by using the AVE/EV function; allowing you to set a standard reading and have subsequent readings shown as the difference in exposure value.
Cinematic modes offer creative options for setting frame rates between 1 to 1000fps or shutter angles from 1° to 358°.
Filter compensation mode enables you to directly apply the effects of filters to your exposure reading. Up to four different filter factors can be applied at once, and up to 30 different filter factors can be
