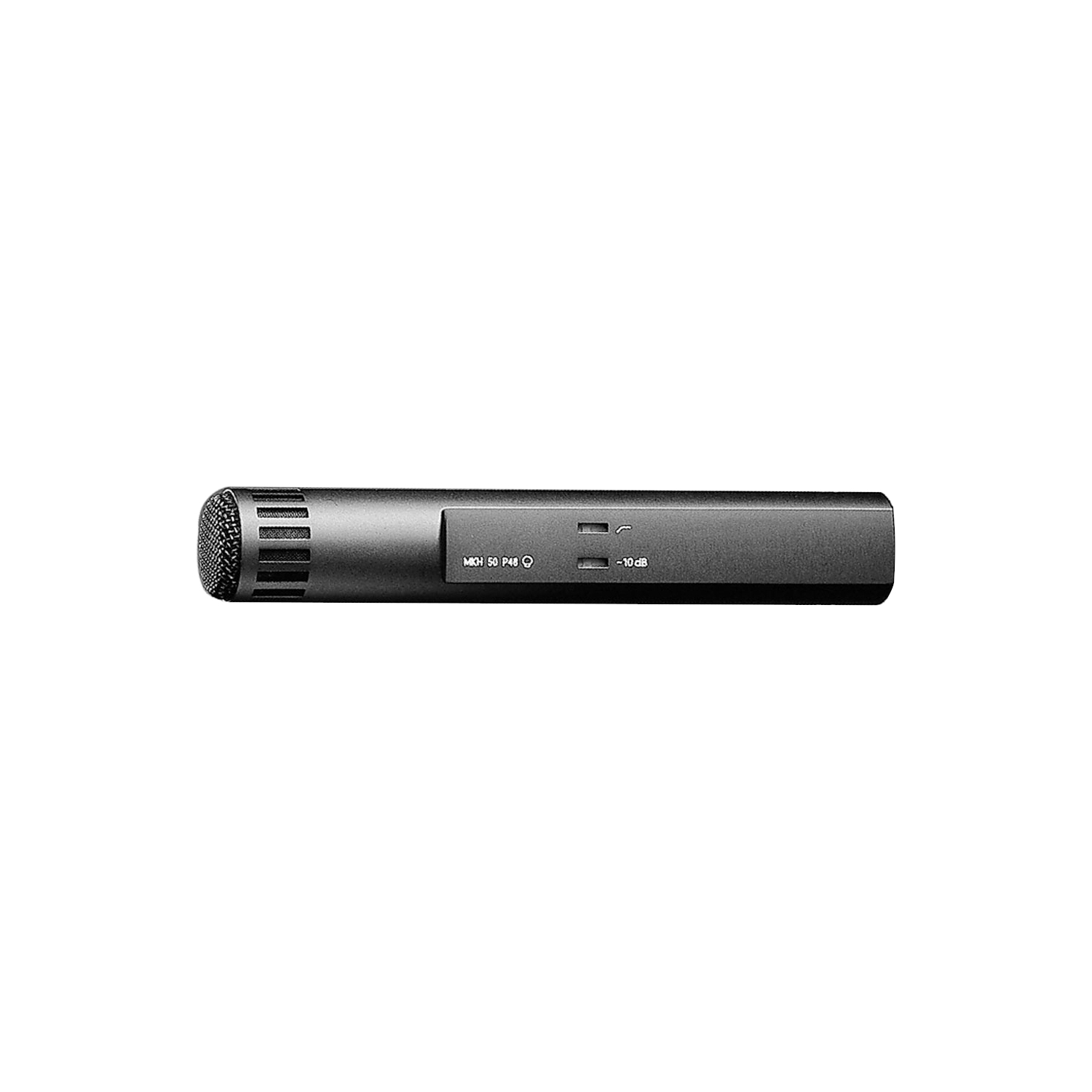

Sennheiser MKH 50 Super Cardioid Condenser Microphone

Super-cardioid microphone designed for use as a soloist's or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection. Frequency-independent directional characteristics.

The super-cardioid MKH 50 offers a higher attenuation of diffusefield and lateral sound than the cardioid microphone. It is principally designed for use as a soloist's or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection. The directional characteristics are frequency-independent.

Features

* High rejection of lateral sounds

* Exceptionally low inherent self-noise

* Transformerless and fully floating balanced output

* Symmetrical transducer technology ensures extremely low distortion

* Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 m

* Switchable pre-attenuation

* Black, anodised light metal body

In the Box

1 MKH 50

1 MZS 40 shock mount

1 MZW 41 windshield

Specifications

Dimensions: 25 x 153 mm

Frequency response (Microphone): 40 - 20000 Hz

Max. sound pressure level: 134 (142) dB / 1 kHz

Sensitivity in free field, no load (1kHz): 25 mV/Pa +- 1 dB

Nominal impedance: 150 Ω

Min. terminating impedance: 1000 Ω

Equivalent noise level: 12 (18) dB

Equivalent noise level weighted as per CCIR 468-3: 21 (27) dB

Current consumption: 2 mA

Battery: 48 +- 4 V Phantom
