The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.
FEATURES
* Lightweight headmic and compact bodypack transmitter
* Antenna-switching diversity reception
* Integrated antennas
* Automatic frequency management and synchronization via remote channel for easy setup
* Selectable UHF frequencies within a large bandwidth
* Up to 10 compatible channels
WHAT'S IN THE BOX?

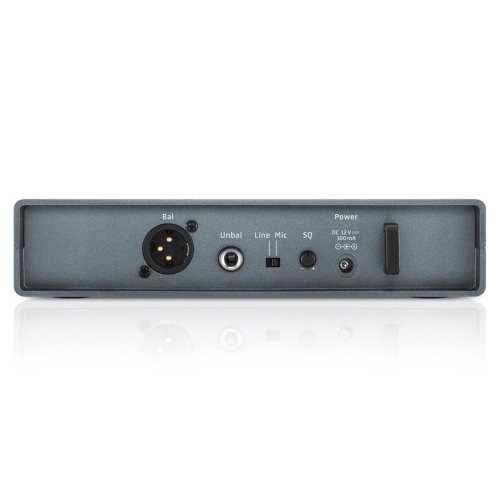

1 receiver EM-XSW 1

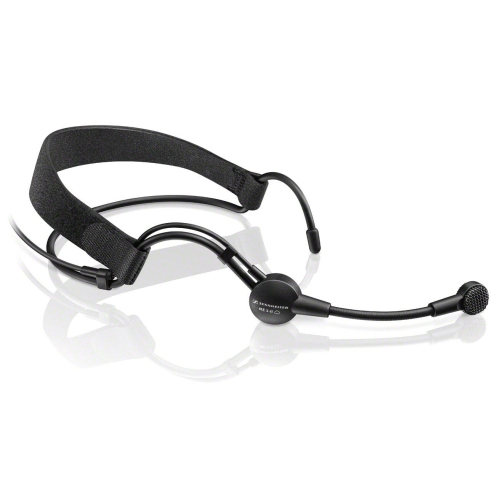

1 headset microphone ME 3-II

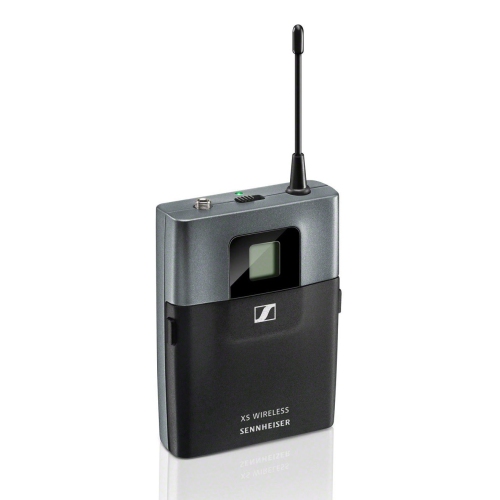

1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteries
TECHNICAL DATA
Receivers
Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 340g
Power supply: 12 V DC nom. / 300 mA
AF frequency response: 50 to 16,000 Hz (3 dB)
Transmitter
Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: Approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps
Microphone Condenser
THD, total harmonic distortion: = or equal to 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation: Wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Sensitivity: < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation: 150 dB
Squelch adjustable from: 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
