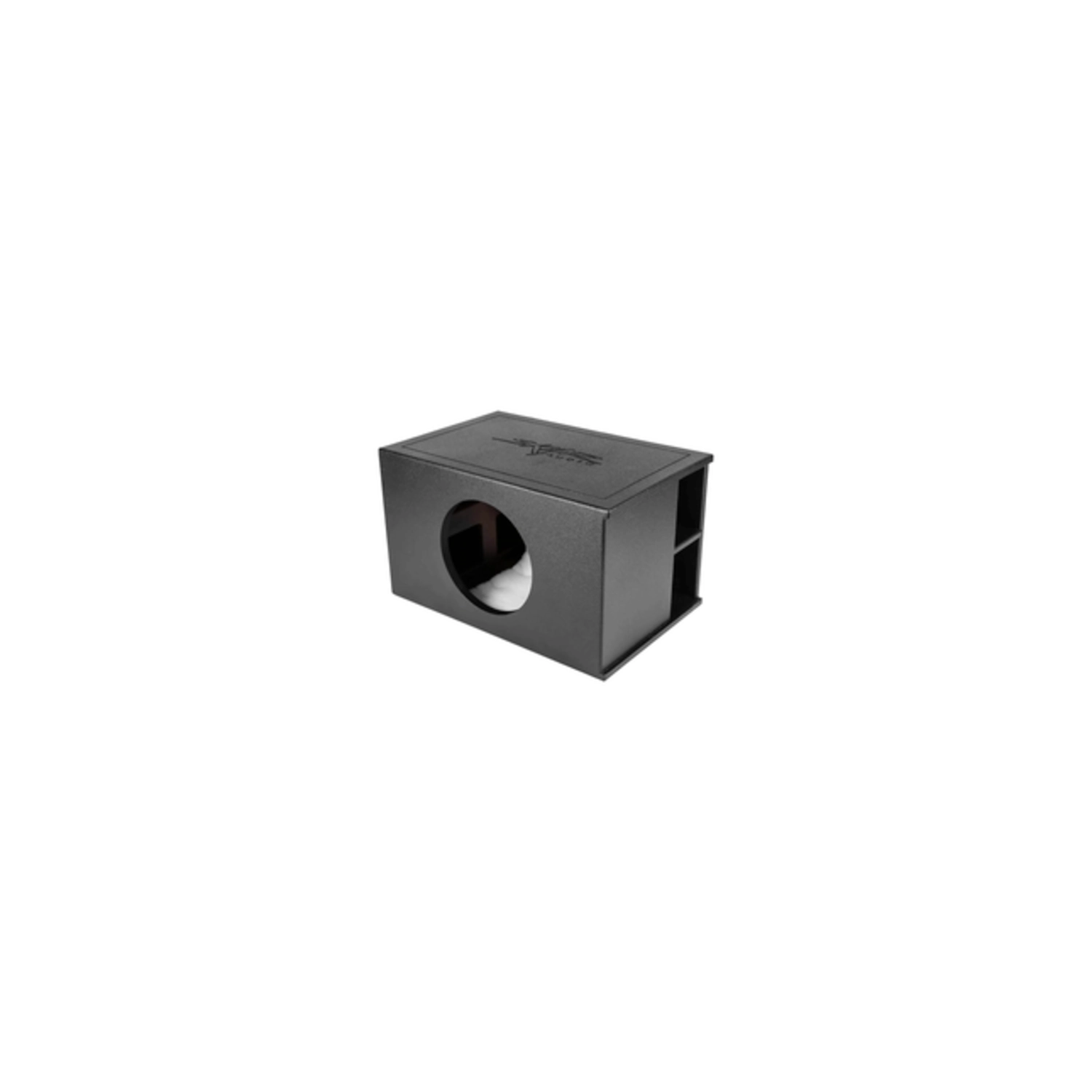

About: Skar Audio AR1X12V-SPL Single 12" 'SPL Series' Armor Coated Ported Subwoofer Enclosure
The Skar Audio AR1X12V-SPL is an armor coated, best in class, single 12", universal fit, 'SPL' grade, ported subwoofer enclosure. Our engineers developed this enclosure to offer the most demanding audiophiles a premium solution when looking to achieve maximum bass output from their sub-stage.
As it's name suggests, this enclosure is part of our SPL series of subwoofer enclosures, which are notably more performant than anything else on the market. Optimally tuned at 41 Hz, this ported enclosure utilizes an all new, rear, side port design which serves to increase bass output. The port was engineered strategically to maximize SPL output by routing air internally in a manner that maximizes pressure as it travels through the enclosure.
From the minute you open the packaging, it is evident how the quality of this enclosure stands in a league of it's own. Unparalleled in durability, it utilizes 1" MDF for the high-strength front baffle, with the remainder of the enclosure finished in 3/4" MDF. Every seam is carefully adjoined using high quality adhesives ensuring the enclosure is air tight. Thereafter, we line the internal walls of the enclosure with poly-fill to enhance the overall depth of sound it can reproduce.

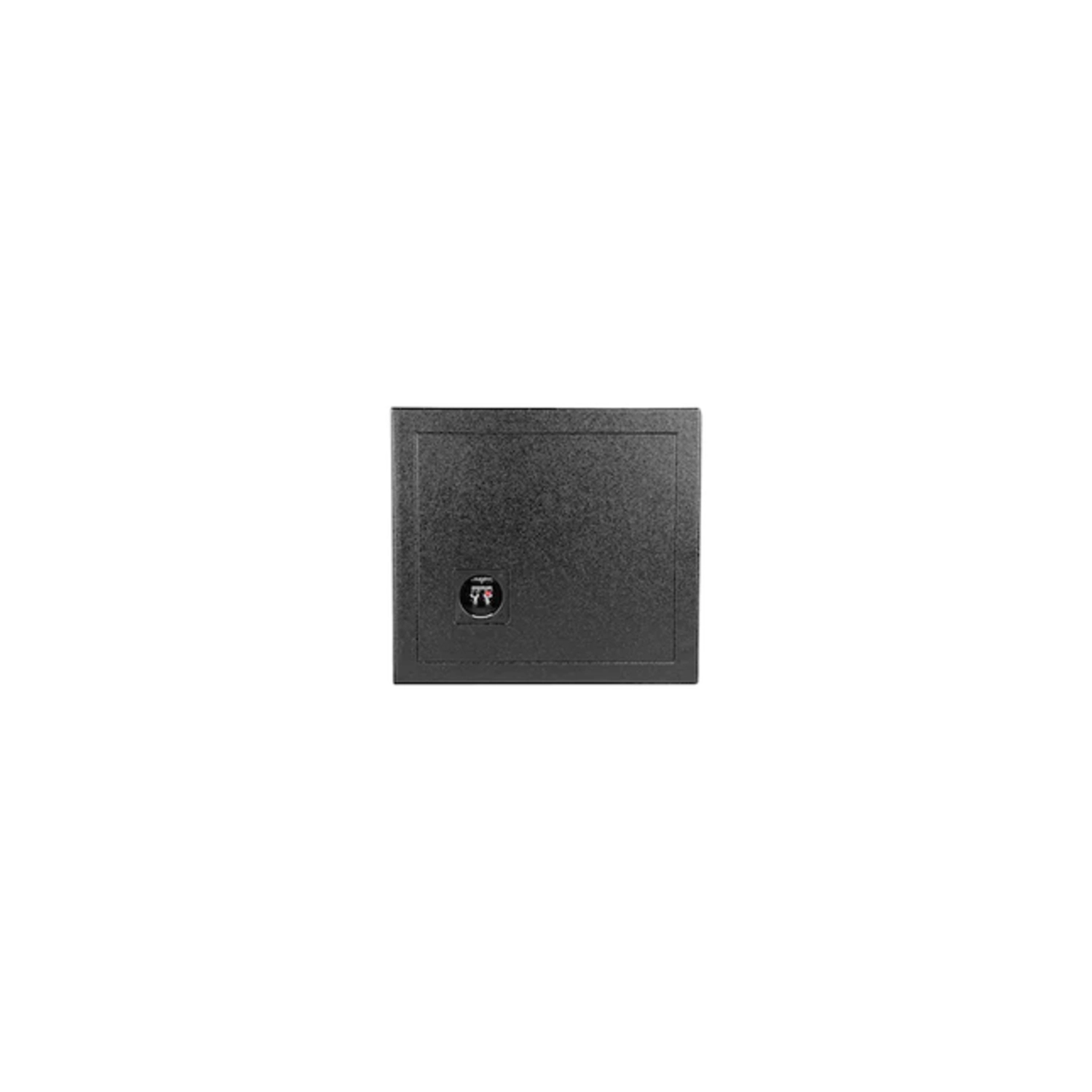

Finally, the enclosure is finished in a black, premium grade, armored coating that is visually stunning and also adds to it's extreme strength. In the rear of the enclosure is the push terminals for connecting your subwoofer, which is internally pre-wired with 12-gauge (OFC) speaker wire, making it easier than ever to wire up and install your subwoofer.
Product Highlights:
Mounting Depth: 13.8125"
Cut-Out Diameter: 11.20"
Tuning Frequency: 41 Hz
Total Gross Air Space (Volume): 2.65 ft3
Features:
Ultra SPL Model: Yes - (MegaBass Design/Larger Volume/Rear Side Port)
Wood Type: MDF
Fitment Type: Universal
Enclosure Type: Ported
Wood Thickness: 1" Front Baffle | Remainder 3/4"
Enclosure Finish: Armor Coated
Fits How Many Subs: 1
Enclosure Finish Color: Black
Subwoofer Compatibility Size: 12"
Internal Speaker Wire Leads Pre-soldered: 12 AWG
External Push Terminal Wire Gauge Opening: 8 AWG
Specifications:
Port Width: 2.50"
Number of Ports: 1
Total Box Volume: 2.65 Cubic Ft
Number of Subwoofer Chambers: 1
Tuning Frequency of Enclosure: 41 Hz
Number of Terminal Cup Connections: 1
Enclosure External Dimensions:
Depth: 17.75"
Height: 16.00"
Length: 27.25"
Subwoofer Mounting Parameters:
Subwoofer Hole Cut-out Diameter: 11.20"
Subwoofer Maximum Mounting Depth: 13.8125"
