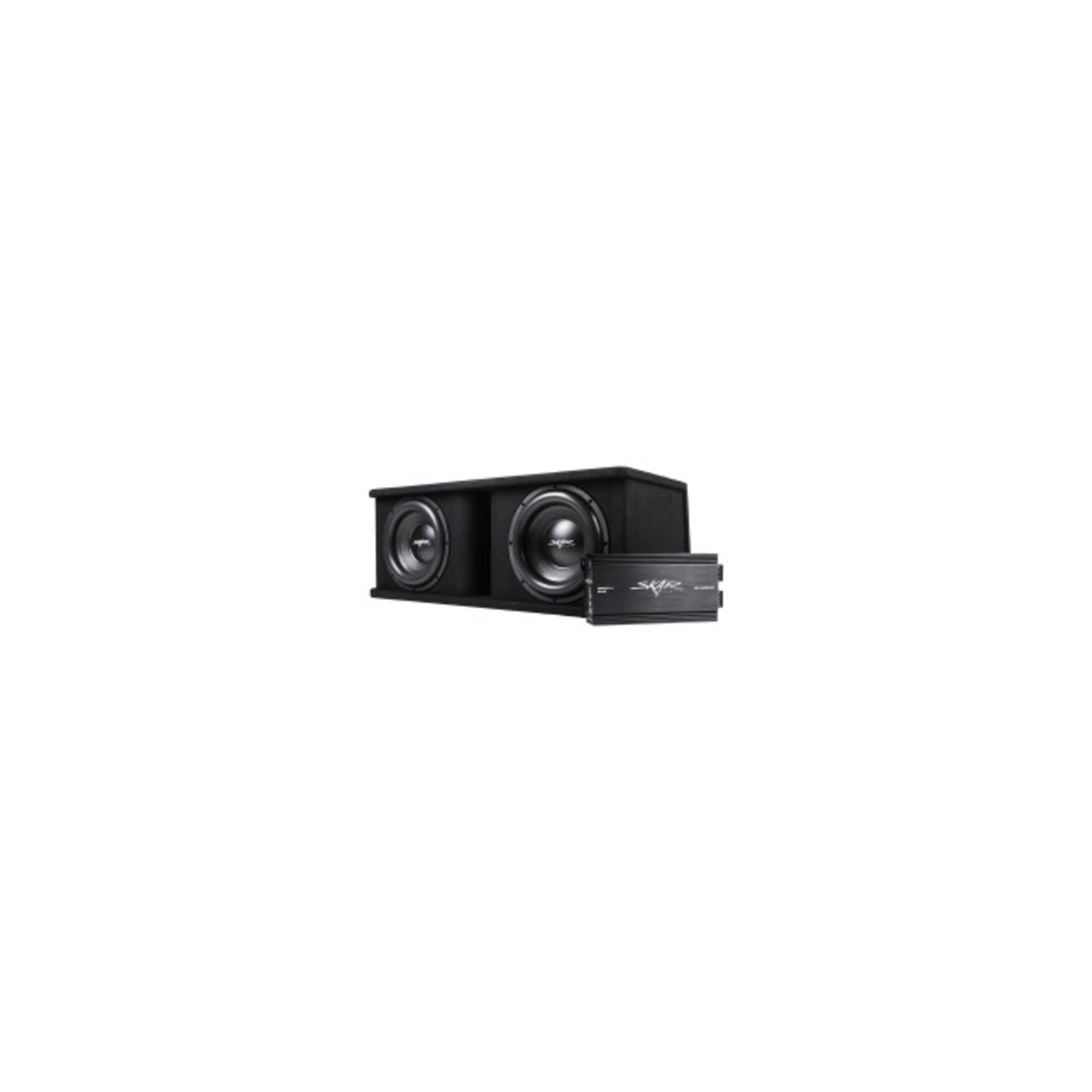

About: Skar Audio BNDLE-SDR-2X12D4 Dual 12" 2,400 Watt SDR Series Complete Subwoofer Package with Vented Enclosure and Amplifier
Skar Audio designed and put together this complete bass package to deliver powerful, deep, and tight bass in an all-in-one competition-grade system. This package features a SDR-2X12D4 dual 12" loaded ported subwoofer enclosure, a RP-1200.1D monoblock amplifier, as well as a Skar Audio 4 Gauge OFC Amplifier Wiring kit to install your new system. Everything you need to get exceptional bass in your vehicle today is included in this package.
The custom enclosure used in this package was engineered by Skar Audio specifically for the subwoofers that are loaded in it, ensuring perfect sound and compatibility. The enclosure features a unique kerf port and split chamber woofer design, allowing for extreme levels of bass output. Furthermore, the enclosure is finished in premium grade black carpet for a sleek appearance and features the Skar Audio logo in white on the top surface of the box.
The subwoofers come pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 4-ohm subwoofers are wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals (one terminal cup only.)
Product Highlights:
Included Amplifier: Skar Audio RP-1200.1D
Included Amp Kit: 4 Gauge OFC Complete Kit
Peak Power Handling: 2,400 Watts
Final Impedance Load: 1 Ω
Enclosure Configuration: Dual 12"
Features:
Type: Dual 12" Ported 2‚400W Peak Power Complete Loaded Subwoofer Enclosure Bundle
RMS Power: 1,200 Watts
Peak Power: 2,400 Watts
Subwoofer Size: 12"
Loaded Enclosure Model: SDR-2X12D4
SDR-12 D4 Subwoofer Specifications:
Height: 14.31"
Port Width: 1.85"
Enclosure Type: Dual - 12" Vented Wedge Style Enclosure
Enclosure Length: 37.75"
Enclosure Depth 1 (Bottom): 18.75"
Enclosure Depth 2 (Bottom): 16.77"
Wood Thickeness & Material: 5/8" MDF
Tuning Frequency of Enclosure: 32 Hz
Final Impedance Load at Terminal Cup: 1 Ω
RP-1200.1D Amplifier Specifications:
Fuse Rating: 100 Amp
Power Supply: High Speed MOSFET Power Supply
Amplifier Type: Class D Monoblock
Amplifier Width: 6.20"
Working Voltage: Working Voltage
Amplifier Height: 2.25"
Amplifier Length: 12.87"
Included Amplifier: RP-1200.1D
RMS Power at 1 Ohm: 1200 Watts x 1 Channel (14.4v)
Peak Power at 1 Ohm: 1600 Watts x 1 Channel (14.4v)
Power & Ground Input Size: 4 Gauge
Remote Bass Knob & Cable Included: Yes

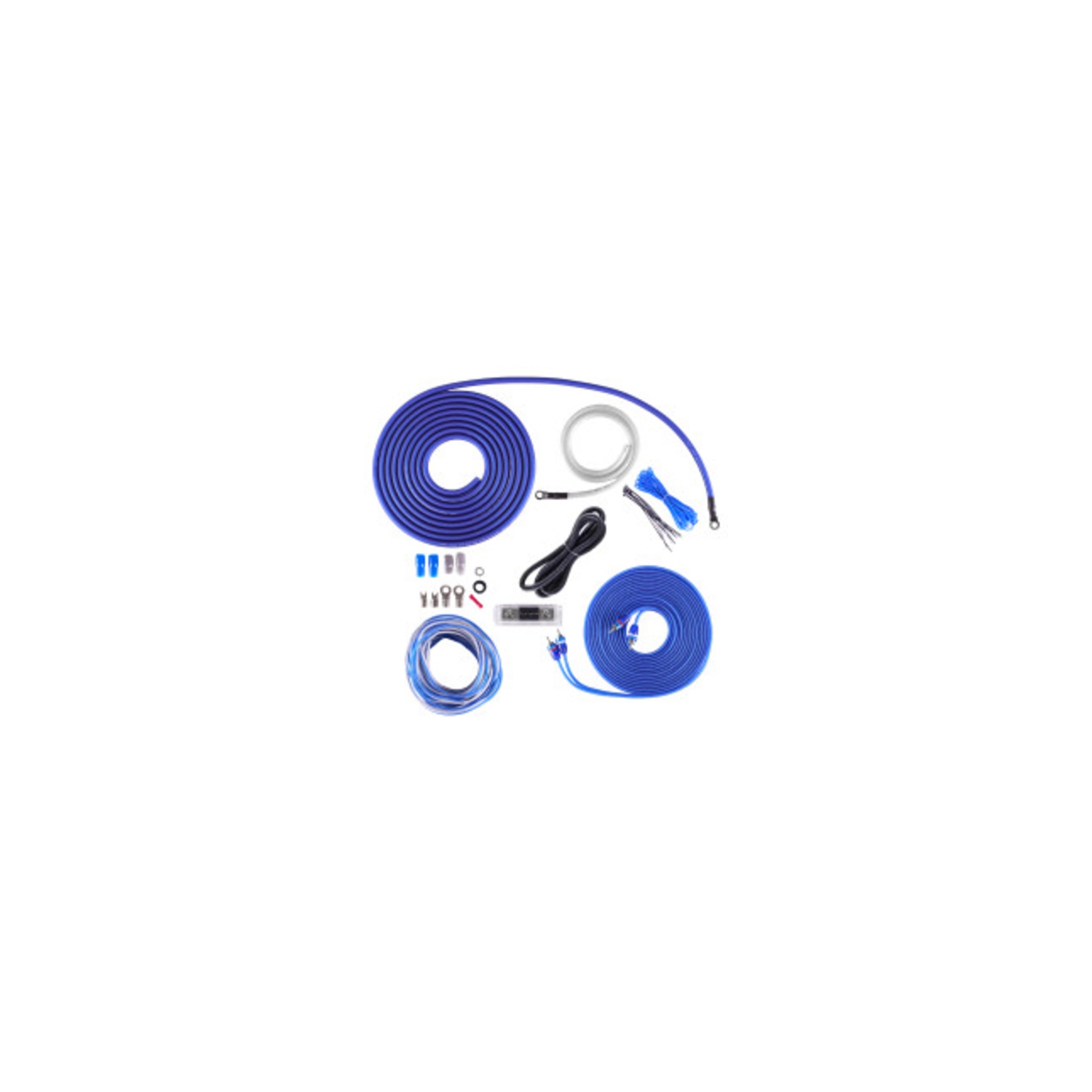

SKAR4ANL-OFC Amplifier Wiring Kit Specifications:
Wire Type: Oxygen Free Copper (OFC)
ANL Fuse Size: 120 Amp - Fuse Holder Included
Included Accessories: Ring/Ground Terminals & Vinyle Cable Ties
Power Wire Length & Type: 17 Ft - Matte Blue 4 AWG OFC Wire
Ground Wire Length & Type: 3 Ft - Matte White 4 AWG OFC Wire
Speaker Wire Length & Type: 20 Ft - Matte Blue/White 16 AWG OFC
RCA Interconnects Length & Type: 17 Ft - 2-Channel
Remote Turn-on Wire Length & Type: 17 Ft - Blue OFC Wire
