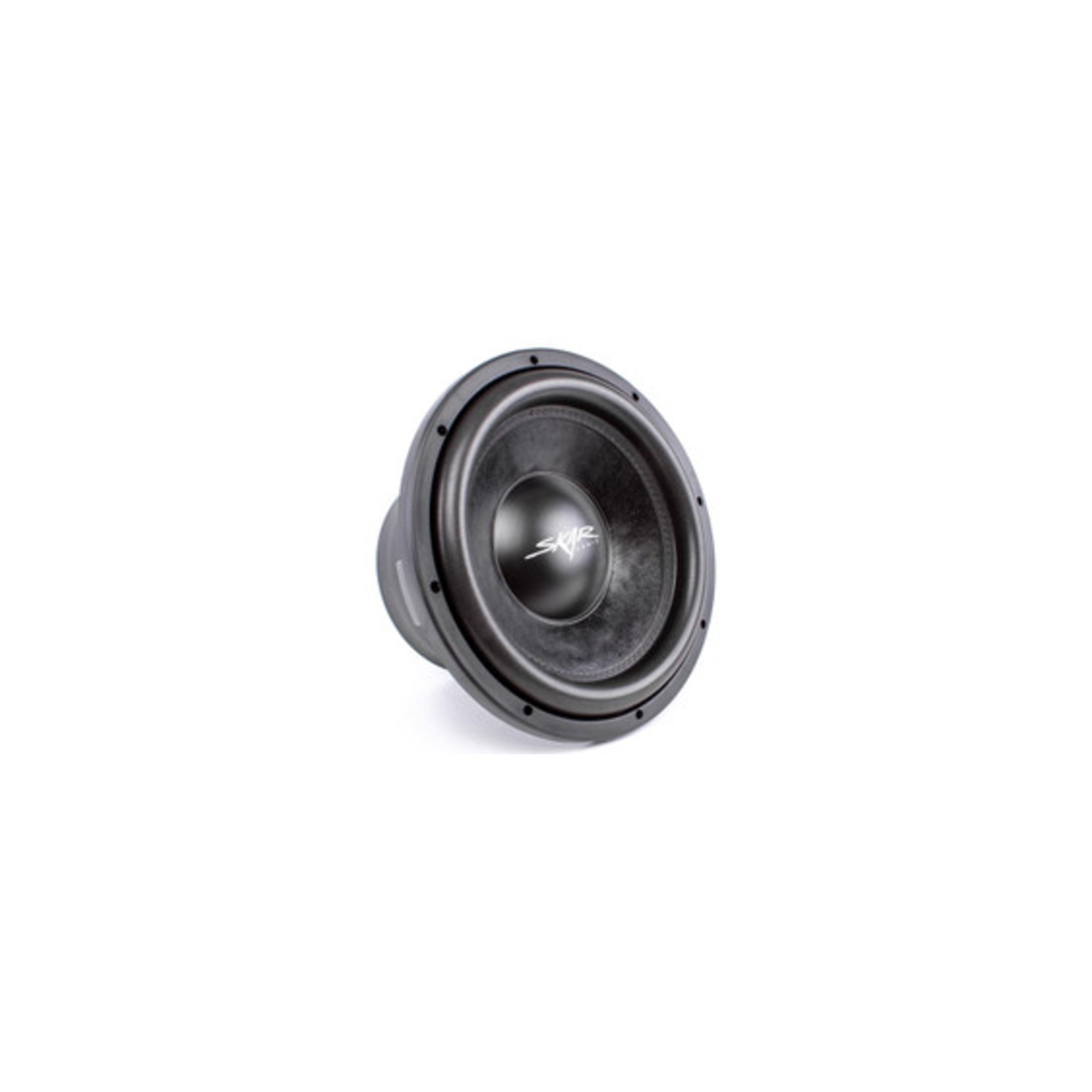

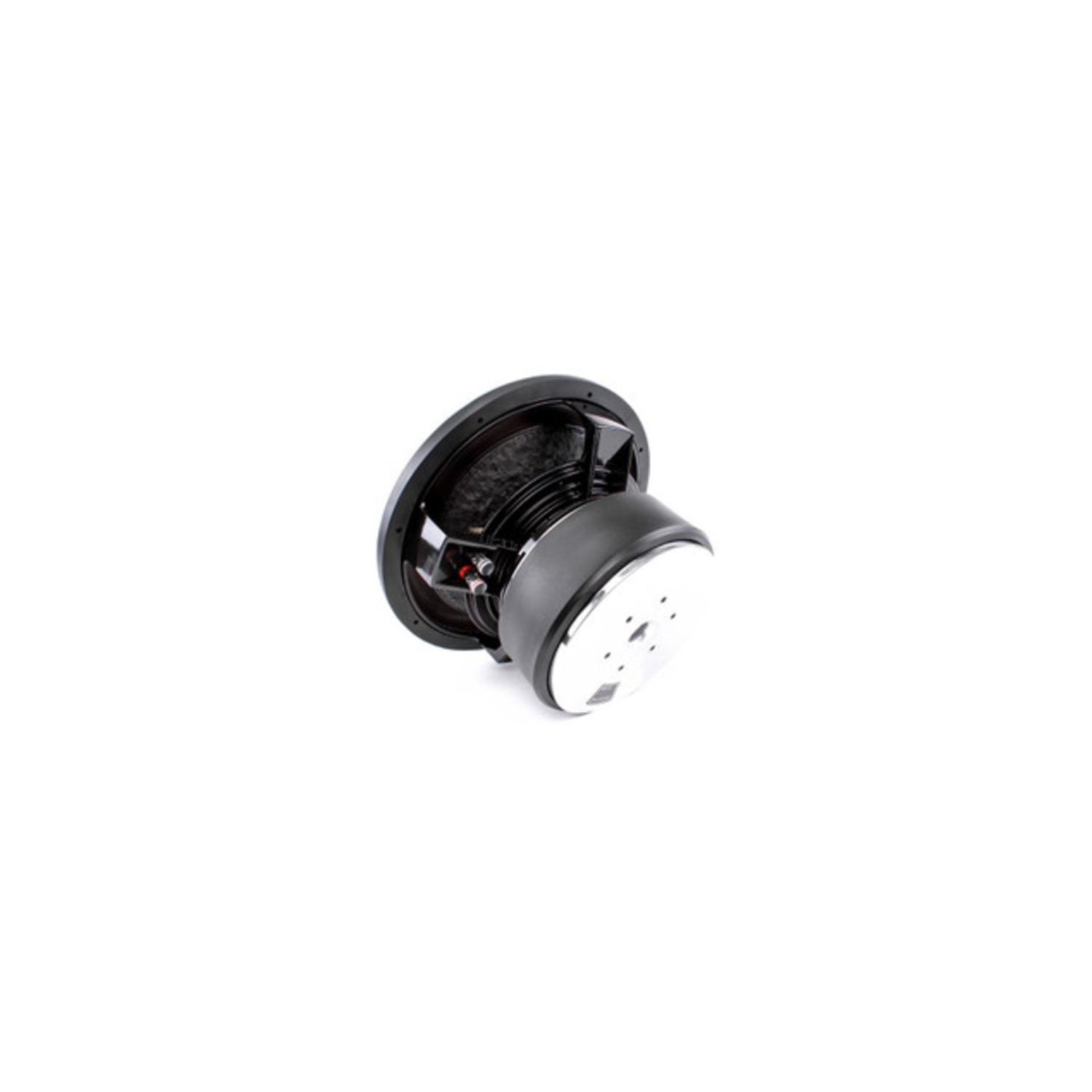

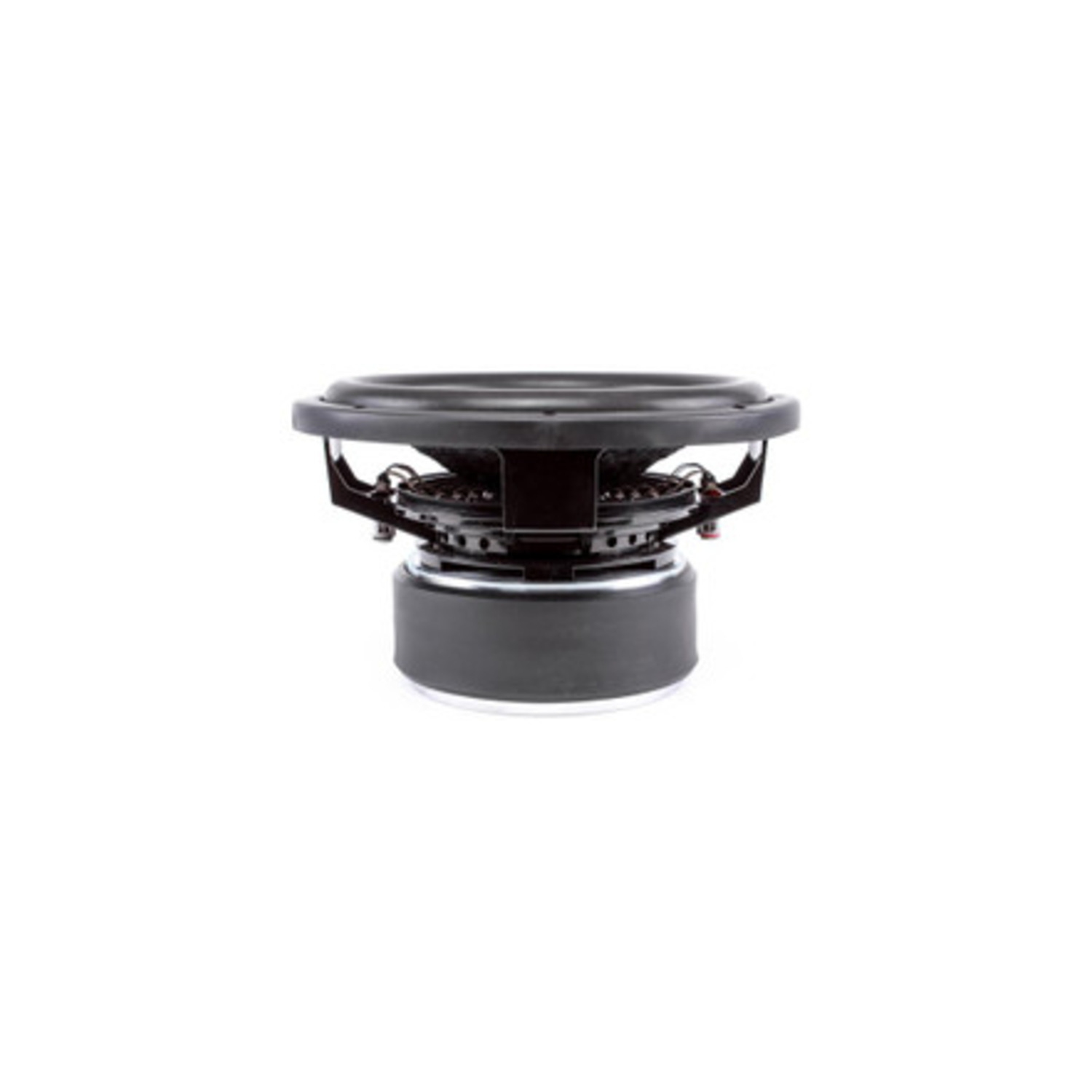

Skar Audio DDX-12 12" 1000W RMS Car Subwoofer - Dual 2 Ohm

The Skar Audio DDX-12 is a competition grade, 12-inch, car subwoofer. The DDX line-up was engineered by Skar Audio to be a SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. The DDX-12 is equipped with an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power. Conservatively rated at 1,500 watts peak power and 1,000 watts RMS power, this subwoofer was engineered to be extremely loud. Featuring a massive double stack 202 oz motor, 2.5" pure copper high temperature voice coil, and a competition grade pressed paper cone, stitched to the high roll foam surround, the DDX-12 comes equipped ready to handle serious amounts of power.

Specifications:

Size: 12"

Type: Car Subwoofer

Cone Type: Competition Grade Pressed Paper Cone

RMS Power: 1000 Watts

Peak Power: 1500 Watts

Surround Type: Stitched High Roll Foam Surround

Voice Coil Size: 2.50"

Magnet Slug Count: Double

Voice Coil Layers: 4

Voice Coil Material: Copper (Pure Copper)

Subwoofer Measurements:

Total Height: 7.53"

Mounting Depth: 6.58"

Magnet Diameter: 7.60"

Cut-out Diameter: 11.25"

Outside Diameter: 12.56"

Recommended Enclosure Specifications

Recommended Port Area: 32.0 in²

Recommended Ported Volume: 2.50 ft³

Recommended Sealed Volume: 1.75 ft³

Recommended Tuning Frequency: 38 Hz

Enclosure Disclaimer: Enclosure recommendations above do not include subwoofer, bracing, and port displacement
