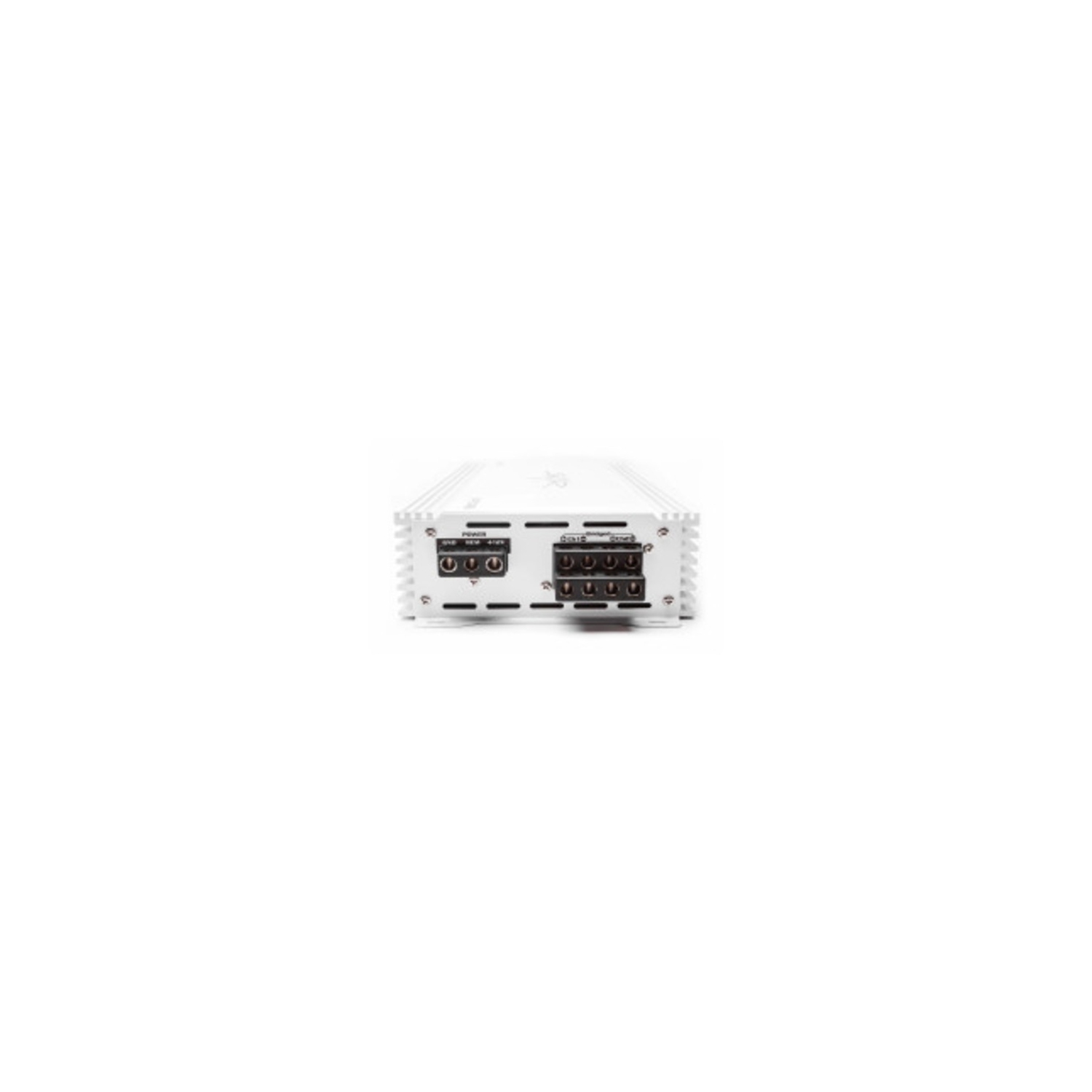

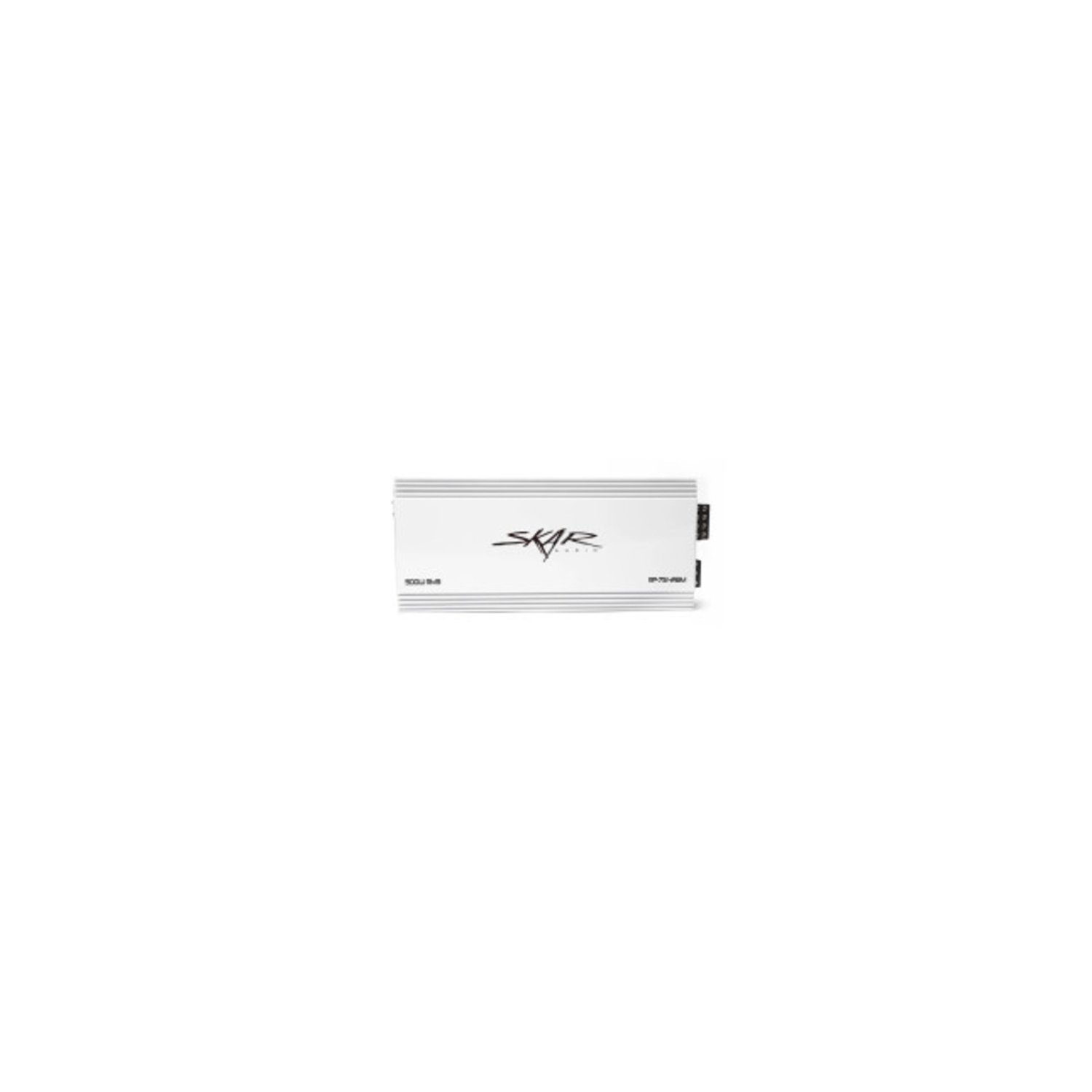

Skar Audio RP-75.4ABM 500 Watt 4-Channel Marine Amplifier

About: Skar Audio RP-75.4ABM 500 Watt 4-Channel Marine Amplifier

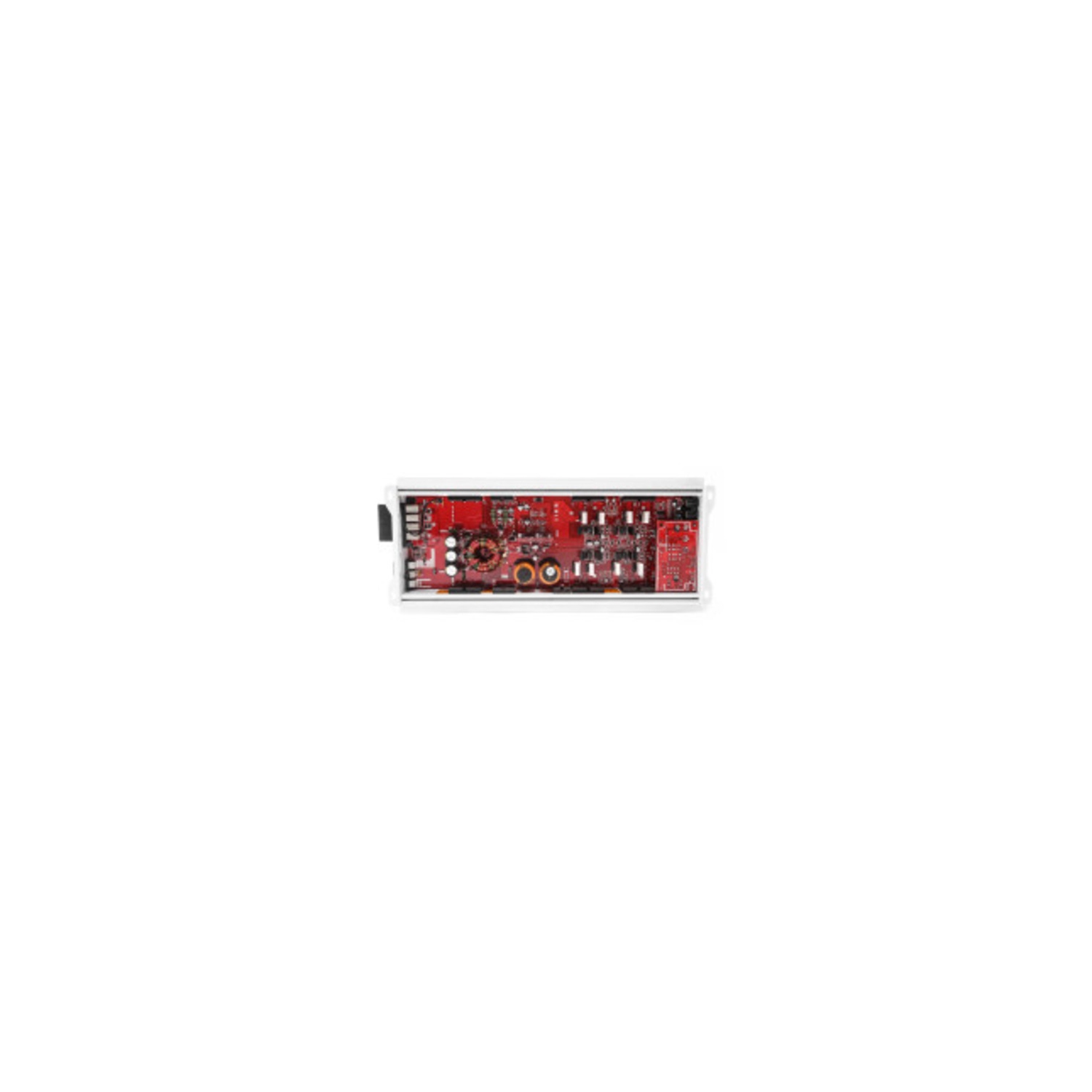

Skar Audio engineered the RP-75.4ABM marine amplifier to set a new standard in marine grade amplifier performance. This four-channel marine amplifier is 2-ohm stable and utilizes a wide array of premium internal components, such as its high speed MOSFET power supply as well as an advanced marine grade PCB board layout. Conservatively rated at 500 watts RMS power (125 watts x 4 channels), this amplifier will bring the speakers on your boat to life with unrivaled power output and sound clarity.

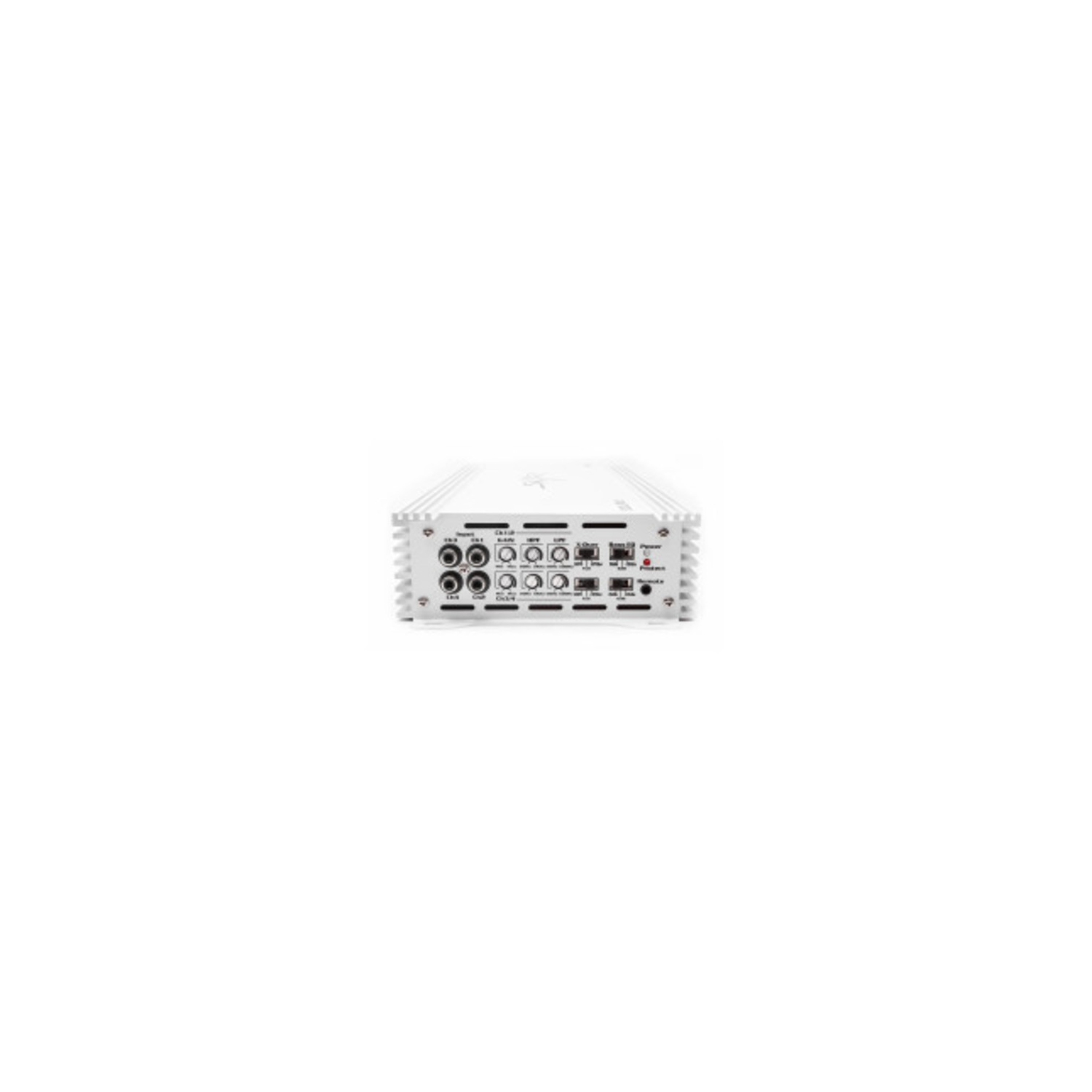

The RP-75.4ABM is extremely versatile as well with its compact physical design, which allows it to fit in a variety of tight or small locations on your boat. Also present on one side of the amplifier is a built-in user control panel that is fully adjustable - allowing you to dial in your sound exactly how you want it. Featuring adjustable controls for gain, high pass filter, low pass filter, a crossover switch, and more, you'll have full control over your listening experience.

In addition to all the above features, this model also features four-way protection circuitry, which will give the user the peace of mind knowing they are protected against damage to the amplifier for various reasons - including electrical shortage, overheating, low voltage, and more. Our marine amplifiers feature a special marine coating internally that allow them to withstand the harshest conditions for long lasting use.

Specifications:

Type: Multi-channel Marine Amplifier

Class: A/B

Bridgeable: Yes

Strappable: No

Power Handling:

RMS Power at 2 Ohms: 125 Watts x 4 Channels (14.4v)

RMS Power at 4 Ohms: 75 Watts x 4 Channels (14.4v)

RMS Power at 4 Ohms (Bridged): 250 Watts x 2 Channels (14.4v)

Efficiency at 4 Ohms: 0.65

Fuse Rating: 60 Amp

MOSFET Type: High Speed MOSFET Power Supply

Damping Factor: 150<

Bass EQ (Boost): Yes (0‚+6 dB‚+12 dB)

Output Channels: 4

RCA Line Output: No

Turn-On Circuit: Soft Turn-on Circuit

Working Voltage: 8.5V - 16V

Tri-Mode Capable: Yes

Frequency Response: 20Hz - 20kHz

Built-in Crossovers: HPF / Full-Range / LPF

Protection Built-in: Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC)

Power & Ground Inputs: 8 Gauge

Signal-to-Noise Ratio: 105 dB

Low Level Input (Gain): 6V - 0.2mV

Low Pass Filter (Variable): 50Hz - 500Hz

High Pass Filter (Variable): 20Hz - 5kHz

Power & Protection Indicators: Yes - LED Indicators

Remote Bass Knob & Cable Included: No

Dimensions (L x W x H): 14.87" x 6.20" x 2.25"
