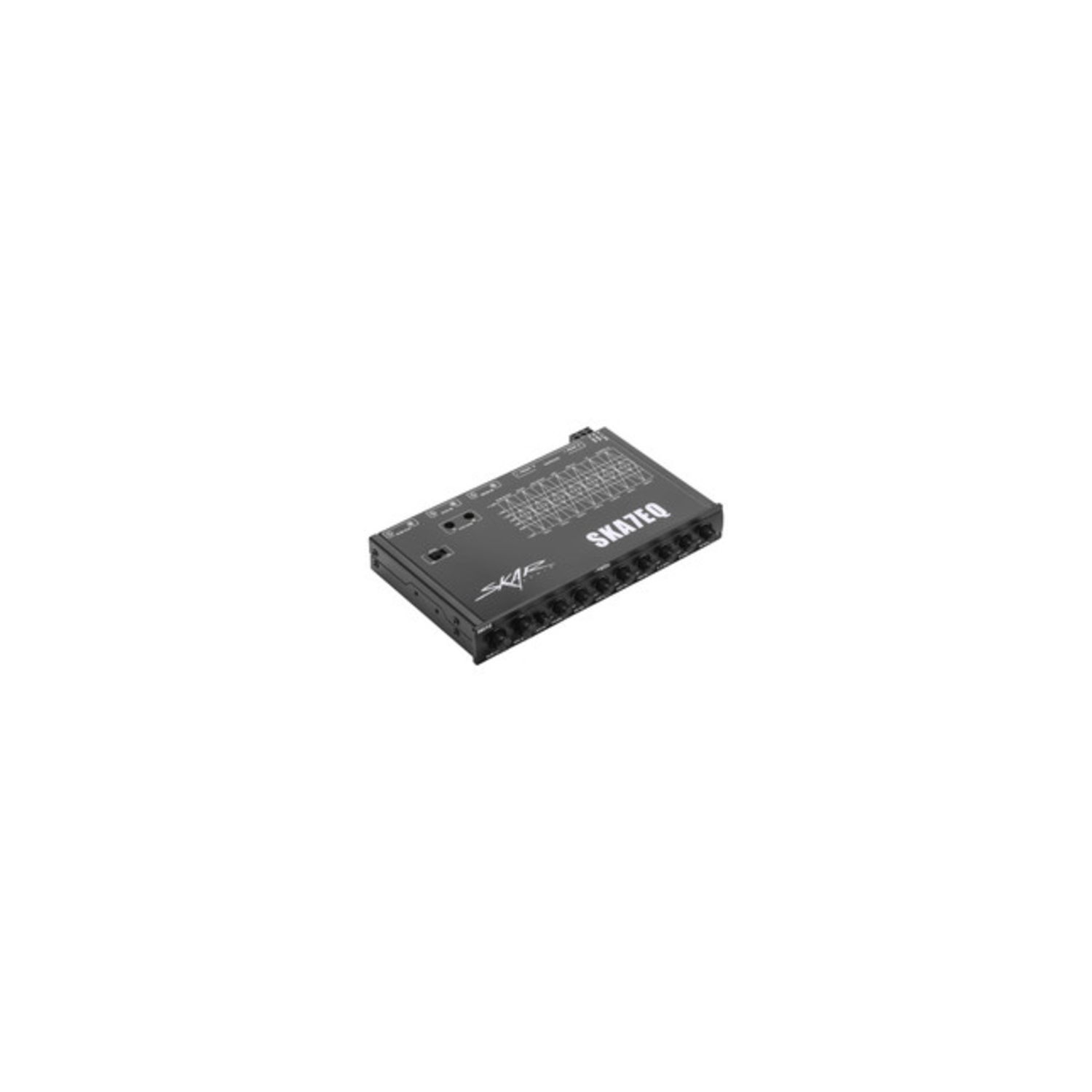

Skar Audio SKA7EQ 7 Band 1/2 DIN Pre-Amp Car Audio Graphic Equalizer

About: Skar Audio SKA7EQ 7 Band 1/2 DIN Pre-Amp Car Audio Graphic Equalizer

Skar Audio engineered the SKA7EQ 7 band 1/2 DIN car audio graphic equalizer so that you can finally take full control over your car audio listening experience, dialing the sound into perfection.

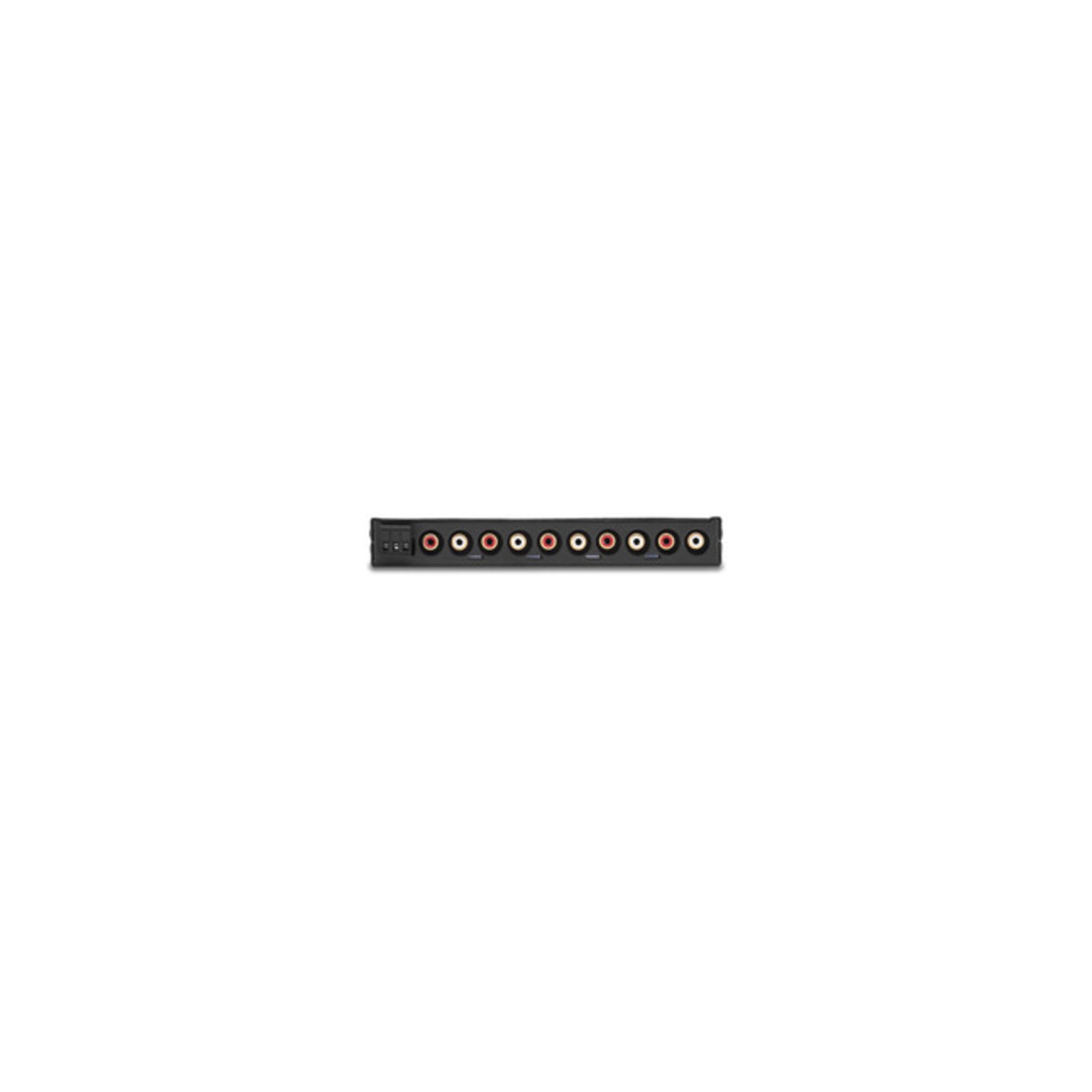

Featuring two sets of RCA inputs (main and a selectable auxiliary input), this EQ takes your input signal and allows you to modify and adjust the sound to your liking. The output signal is then delivered via the high voltage (up to 7V max) pre-amp RCA outputs for the Front, Rear, and Subwoofer channels (the subwoofer out-put channel features an independent volume control knob on the front of the unit as well).

Specifications:

Skar Audio SKA7EQ 7 Band 1/2 DIN Graphic Car Stereo Equalizer

Adjustable Frequency Bands: 50Hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz, 16kHz

Fully Adjustable -12 dB to +12 dB EQ Bands

Balanced RCA Main Input (Rear)

RCA Auxiliary Input with Variable Gain Adjustment w/ Aux Input Selectable Switch

6-Channel (7 Volt) RCA Outputs (Front, Rear, and Subwoofer)

Gold Plated RCA Contacts for Enhanced Signal Transfer

Master and Subwoofer Volume Controls

Adjustable Fader Control

Low Pass Frequency Switch (60 Hz / 120 Hz)

Signal-to-Noise Ratio: 100dB

THD: 0.0005%

Line Driver Built-In: Yes

Ground Loop Isolation Circuit

Operating Voltage: 11V-15V

20dB Headroom Eliminated Signal Overload

Size: 1/2 DIN

Includes Installation Brackets and Hardware

Dimensions: 7.00" W x 4.25" D x 1.00" H
