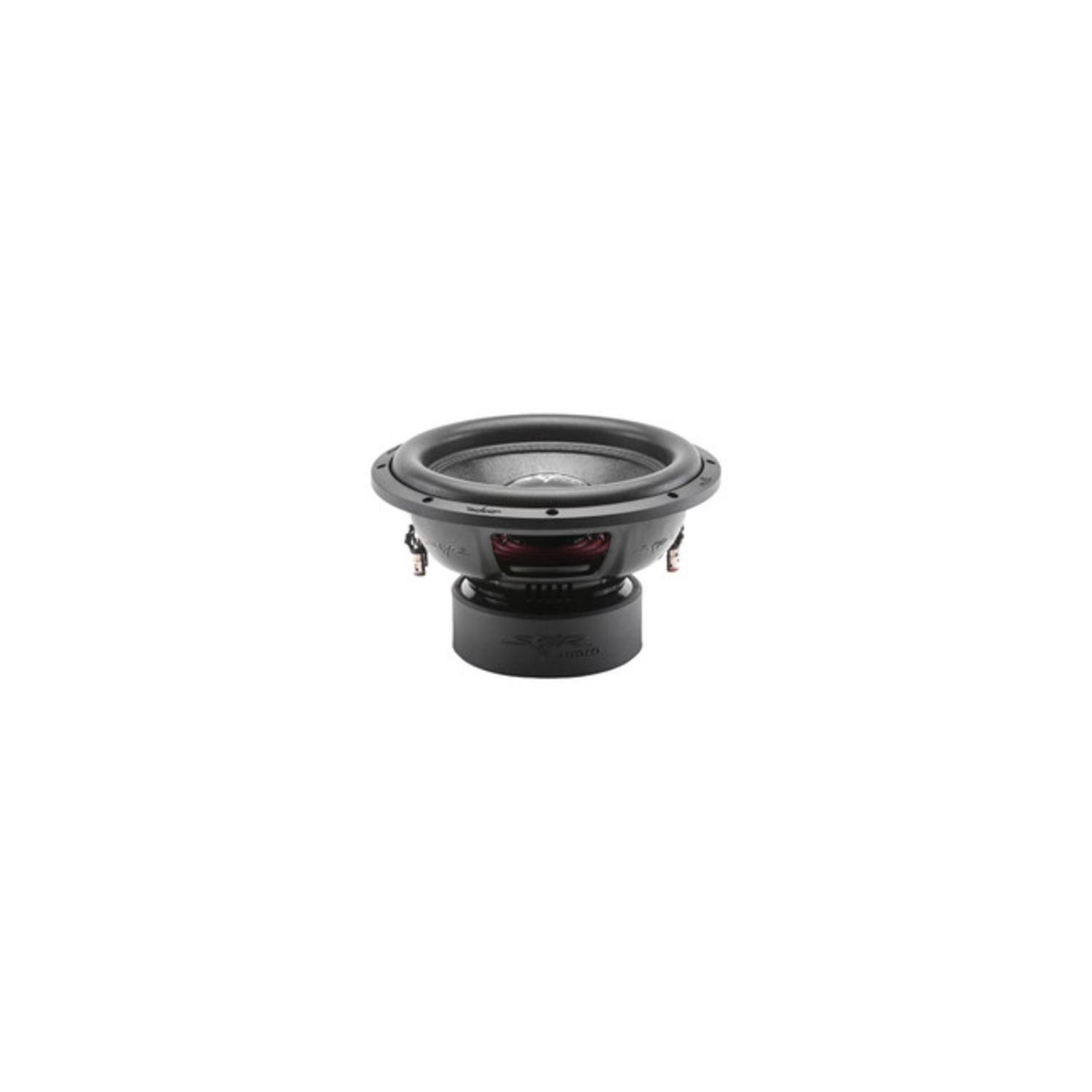

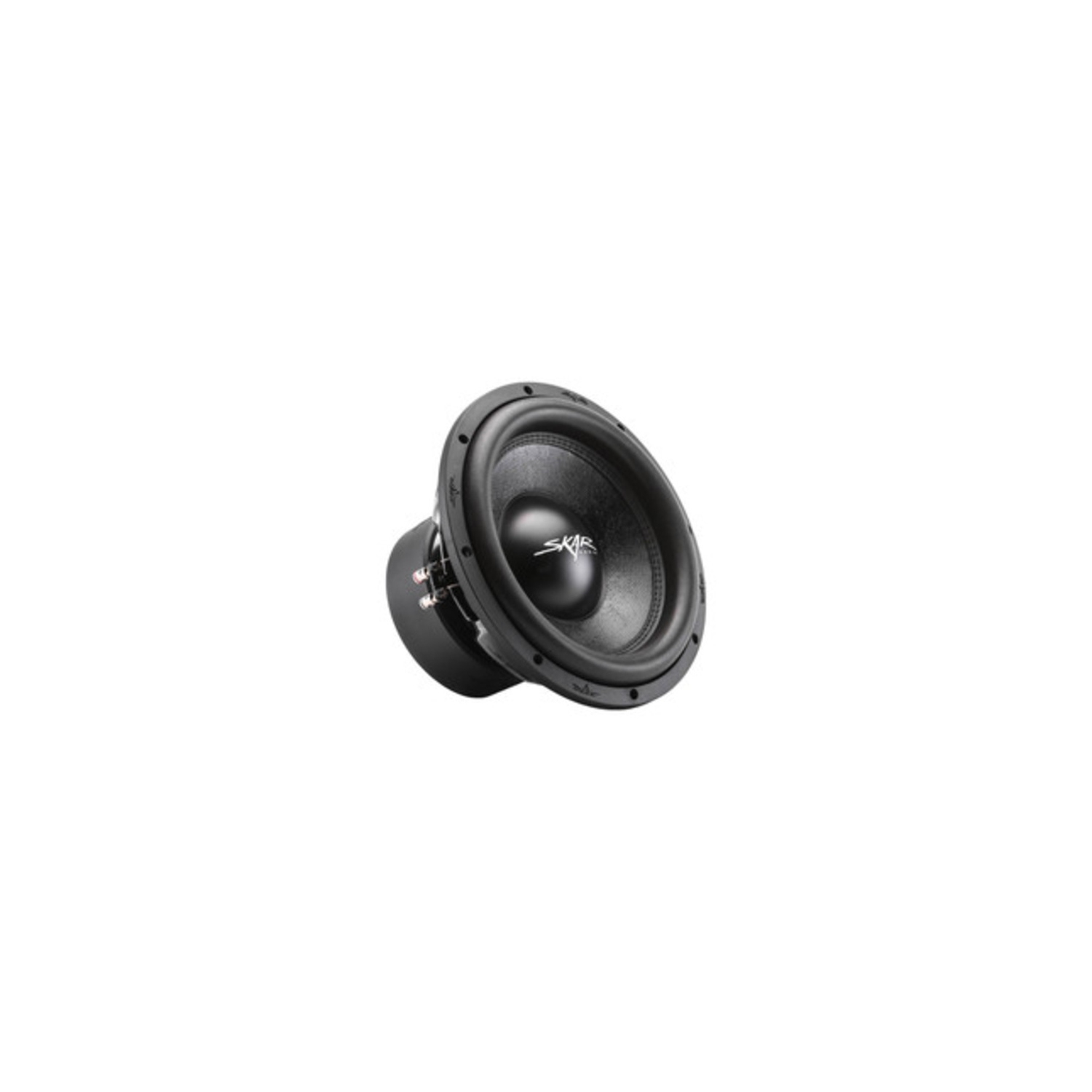

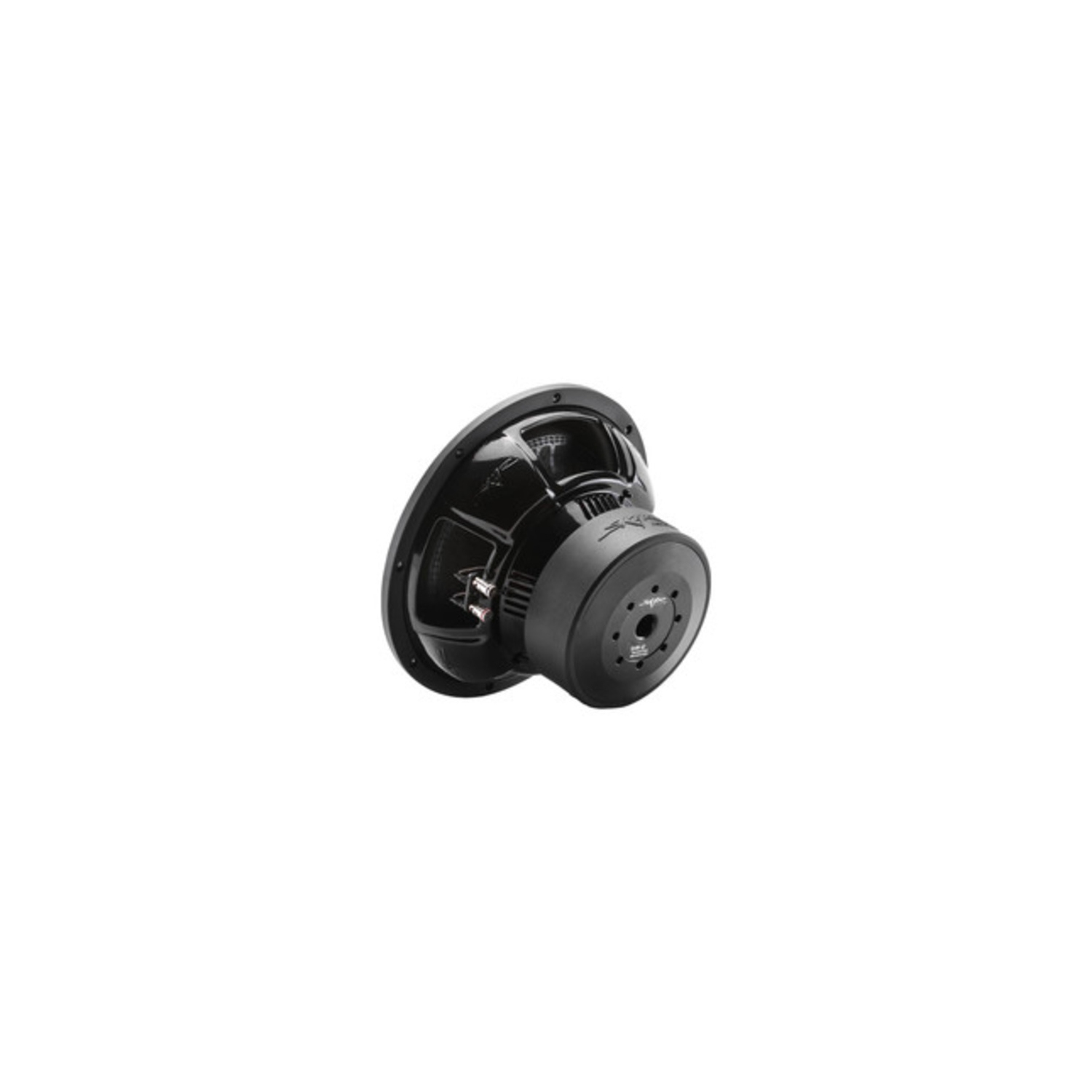

Skar Audio SVR-12 12" 800W RMS Car Subwoofer - Dual 2 Ohm

About: Skar Audio SVR-12 12" 800W RMS Car Subwoofer

The Skar Audio SVR-12 12-inch car subwoofer delivers hard hitting bass in a compact, powerful package. The SVR-12 was engineered and built with performance in mind. It starts with a unique 2.6" 4-layer high-temperature copper voice coil, allowing it to have a conservative peak power rating of 1,600 watts. The Skar Audio stamped steel basket featured on the SVR-12 utilizes an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power.

The SVR-12 is equipped with a double-stacked 153 oz ferrite motor, which delivers the driving force behind the ultra-responsive, breathtaking lows this subwoofer produces. The suspension design of the SVR series features the Skar Audio signature red, single-layer spider, which connects to the coil former with premium stitched lead wires. Furthermore, the SVR-12 comes with a high foam surround stitched to a competition grade pressed paper cone. The advanced design features in the SVR series help to deliver powerful bass with uncompromising accuracy, that place this subwoofer in an elevated class of its own.

Product Highlights:

Power Handling:

RMS Power Handling: 800 Watts

Peak Power Handling: 1,600 Watts

Voice Coil Size: 2.6"

Specifications:

Peak Power: 1,600 Watts

RMS Power: 800 Watts

Competition Grade Pressed Paper Cone

High Roll Foam Surround

Advanced Air Flow Cooling System

2.6" High Temperature Copper Voice Coil

Motor Weight: 153 oz

Frequency Response: 22 - 300 Hz

Sensitivity: 86.1 dB

Subwoofer Measurements:

Cut-Out Diameter: 11.40"

Mounting Depth: 6.50"

Total Height: 7.75"

Outside Diameter: 12.50"

Magnet Diameter: 6.93"

Recommended Enclosure Specifications:

Recommended Sealed Volume: 1.00 ~ 1.35 ft³

Recommended Ported Volume: 1.75 ~ 2.00 ft³

Recommended Port Area: 21.875 in²

Recommended Tuning Frequency: 34 Hz

Enclosure recommendations above do not include subwoofer, bracing, and port displacement
