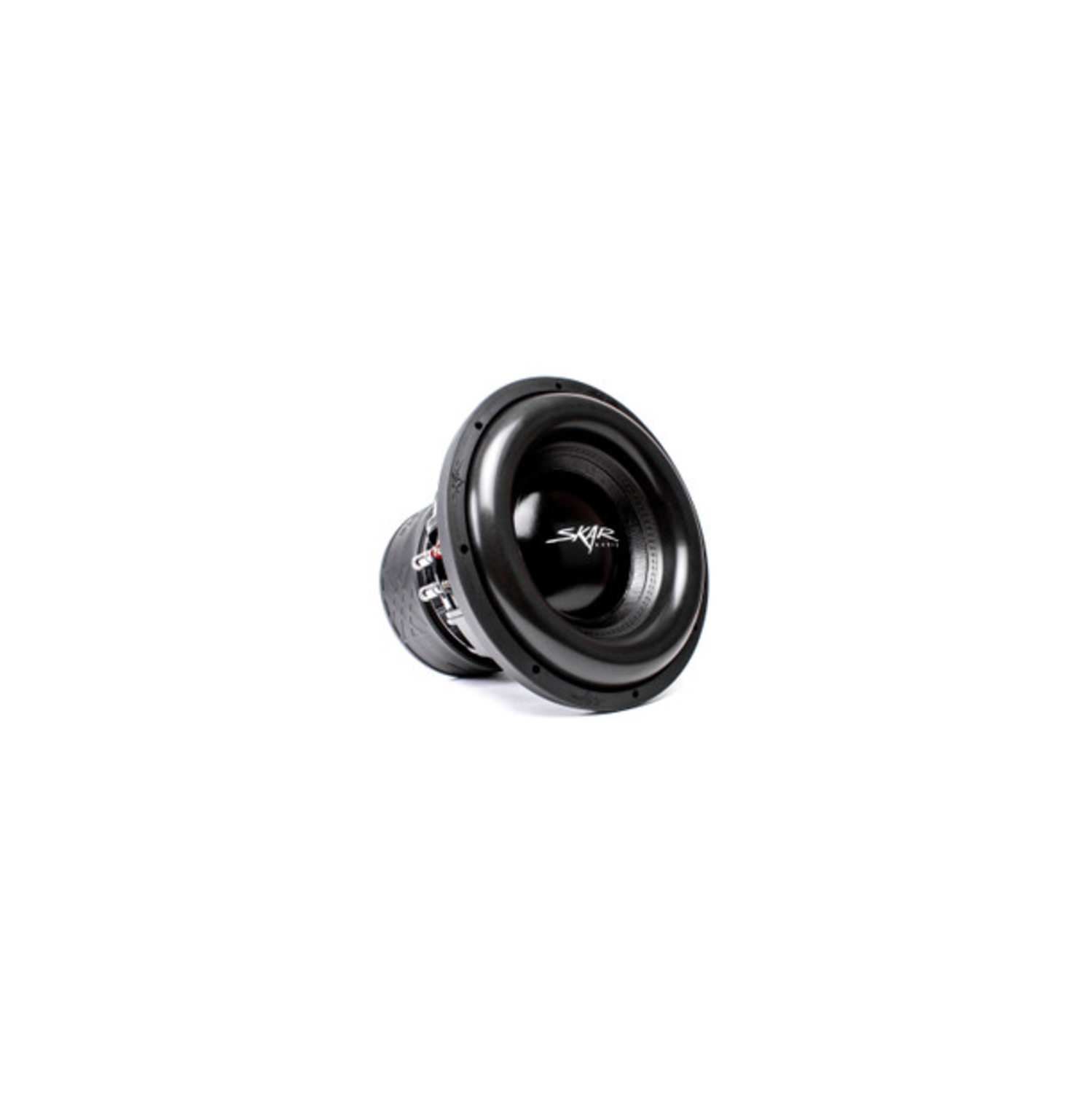

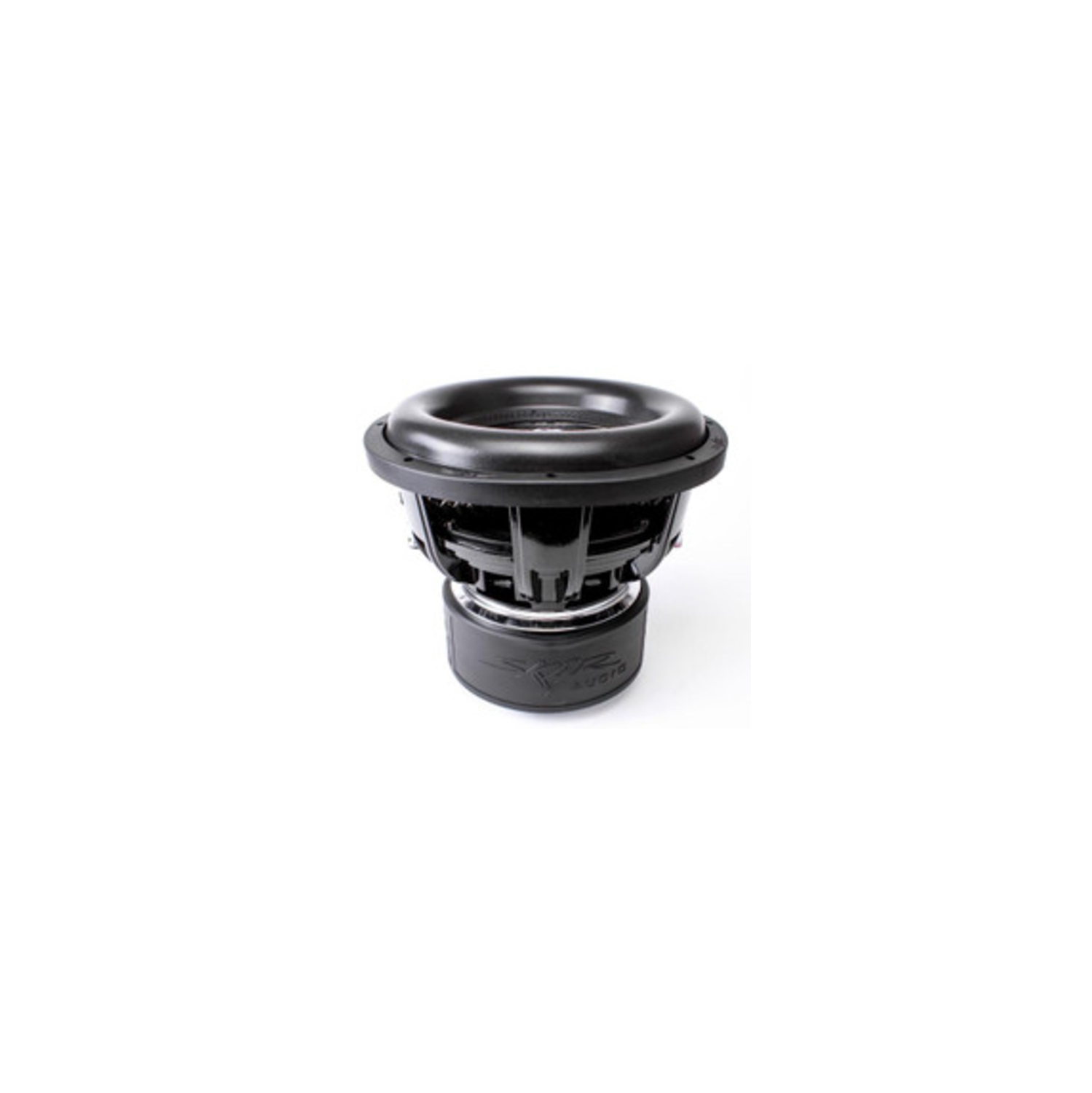

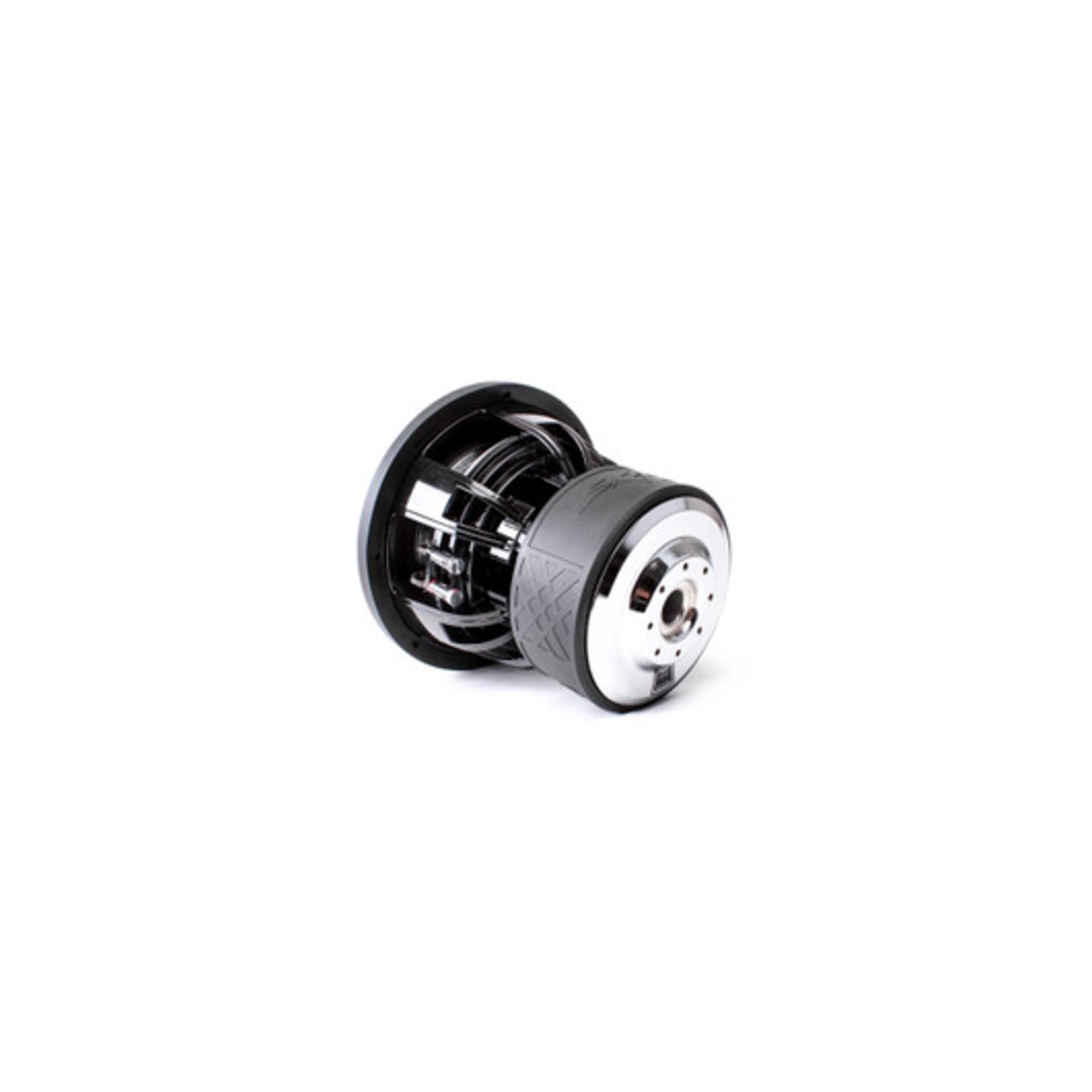

Skar Audio ZVX-12v2 12" 1500W RMS Car Subwoofer - Dual 2 Ohm

The Skar Audio ZVX-12v2 D2 12-inch dual 2-ohm subwoofer is an ultimate powerhouse driver, unrivaled in performance and reliability. The ZVX-12v2 offers the perfect combination of size and power, conservatively boasting a 3,000 watt max power rating. This 12-inch SPL subwoofer was engineered to withstand brutal everyday use while performing efficiently at the highest levels of output power.

The ZVXv2 series utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which deliver the riveting lows this subwoofer can produce. Combine those features with its high roll foam surround and competition grade paper cone, and it becomes evident why the ZVX is a favorite among both everyday users and those using the ZVX in competition.

Product Highlights:

Voice Coil Size: 3.0"

RMS Power Handling: 1,500 Watts

Peak Power Handling: 3,000 Watts

Specifications:

Size: 12"

Type: Car Subwoofer

Cone Type: Competition Grade Pressed Paper Cone

RMS Power: 1500 Watts

Peak Power: 3000 Watts

Surround Type: Stitched High Roll Foam Surround

Voice Coil Size: 3.00"

Magnet Slug Count: Triple

Voice Coil Layers: 8

Voice Coil Material: Black Coated Copper (CCAW)

Subwoofer Measurements:

Total Height: 11.39"

Mounting Depth: 9.89"

Magnet Diameter: 7.85"

Cut-out Diameter: 11.25"

Outside Diameter: 12.62"

Recommended Enclosure Specifications:

Recommended Port Area: 38.0 in²

Recommended Ported Volume: 3.00 ft³

Recommended Sealed Volume: Not Recommended

Recommended Tuning Frequency: 34 Hz

Enclosure Disclaimer: Enclosure recommendations above do not include subwoofer, bracing, and port displacement
