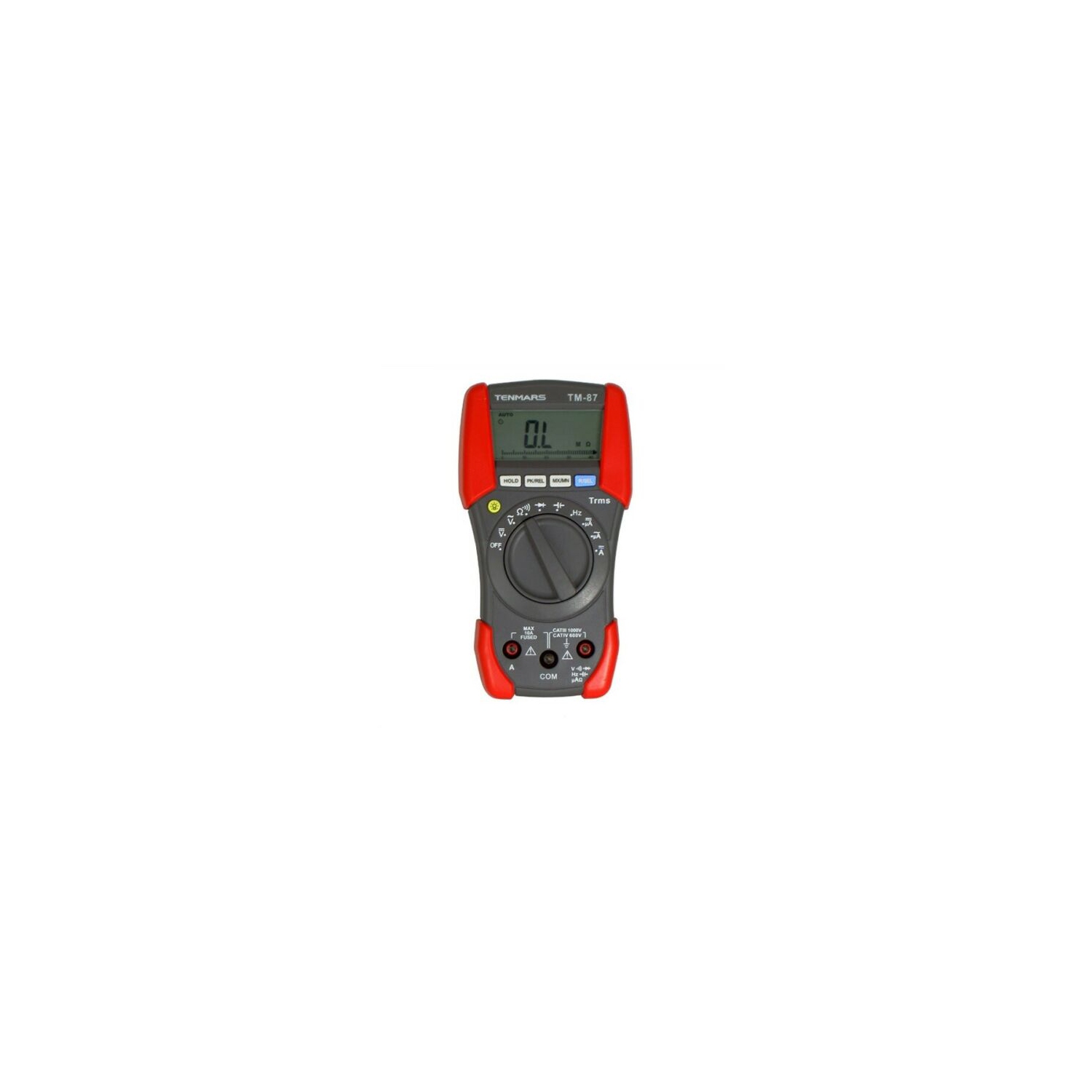

TM-87 Digital Multimeter: True RMS Measures AC/DC Voltage/Current Resistance

Features:

- CAT IV 600V

- LCD Backlit Display, with maximum reading of 3999

- Analog Bargraph Display: True Rms

- Auto power off (15 minutes)

- ACV, DCV, ACA, DCA, Resistance, Diode, Frequency, Capacitance, Duty Cycle, Continuity, Range Hold, Data Hold, REL

Specifications:

- Overvoltage Category: CAT IV 600V, CAT III 1000V

- Sampling Rate: 2.5 times/second

- Backlit: Yes

- Bargraph: Yes

- DC Voltage: 0.1mV to 1000V ±(0.5% of rdg + 2 dgts)

- AC Voltage: 0.001V to 1000V ±(1.3% of rdg + 5 dgt)

- DC Current: 0.1µA to 10A ±(1.0% of rdg + 3 dgt)

- AC Current: 0.1µA to 10A ±(1.5% of rdg + 5 dgt)

- Resistance/Accuracy: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ; ±(1.0% of rdg + 2 dgt)

- Protection: 1000Vrms

- Continuity Buzzer: Yes

- Diode Test: Test voltage 1.5 volts

- Frequency: 1.0Hz to 100KHz

- Capacitance/Accuracy: 4nF, 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF, ±(1.0% of rdg + 5 dgt)

- Range Hold: Yes

- Data Hold: Yes

- Min/Max: Yes

- Peak Hold: Yes

- REL (Zero): Yes

- Accessories: Carrying case, Test Leads, Operating Manual, Battery
