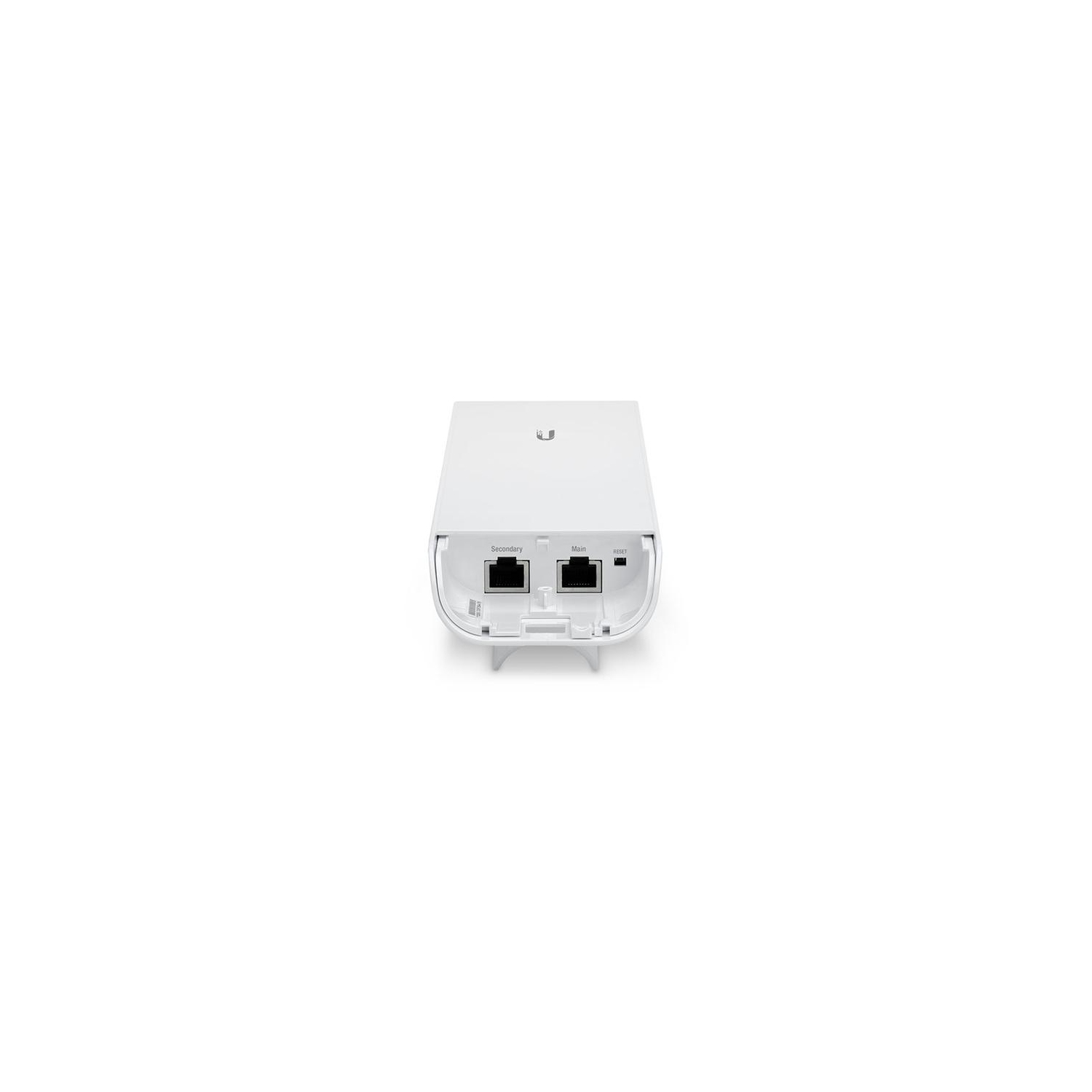

Ubiquiti NanoStation M2 2.4-GHz 11-dBi Antenna - International Model

Benefits

• Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running airMAX sector antenna's and Rocket M2's.

• Next-Gen Antenna Design: 11dBi dual-polarity gain with optimized cross-polarity isolation in a compact form-factor.

• Dual Ethernet Connectivity: A secondary Ethernet port with software enabled POE output for seamless IP Video integration.

• Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.

• 802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID)

• Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the NanoStation M2 can be mounted and adjusted in any direction in a 90 degree angle through the use the NanoBracket. The NanoBracket is sold separately

Technical Specifications

• Processor Specs: Atheros MIPS 24KC, 400MHz

• Frequency: 2.4Ghz Channels 1-11 (Channels 12-14 available in INTL version, contact sales@balticnetworks.com for ordering information)

• Wireless: 2Ghz Atheros, 27dBm Adjustable down to 8dBm.,AES Encryption

• Memory Information: 32MB SDRAM, 8MB Flash

• Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough

• Mount and mounting strap (NanoBracket is optional, sold separately)

• Operating Temperature: -30C to +80C

• Power Method: Passive PoE

• Power Consumption: 8 Watts

• Power supply included: Power Injector 110-240VAC 24VDC .5A US-style plug

• Size: 29.4 cm x 8 cm x 3cm, Weight: .4kg

• Approvals: FCC Part 15.247, IC RS210, CE
