Ubiquiti Network - U Fiber, Nano

Technical Specifications

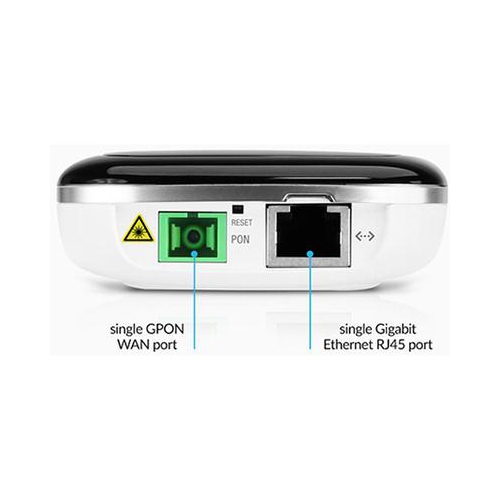

· Networking Interface Speeds: (1) GPON WAN, ITU G.984; 2.488 Gbps Downstream; 1.244 Gbps Upstream; (1) GbE LAN, 10/100/1000 Mbps

· Management Interface: In-Band Ethernet/PON

· Normal Optical Power Range: TX (Class B+): 1.5 dBm to 5 dBm, RX: -8 dBm to -28 dBm

· Power Method: Passive PoE (Pins +4, 5; -7, 8), Dying Gasp Support

· Power Supply: PoE Adapter: 24V, 0.3A (Included)

· Max. Power Consumption: 7W

· Supported Voltage Range: 20V to 28V

· Processor Specs: MIPS-32, 240 MHz

· Memory Information: 128 MB DDR3

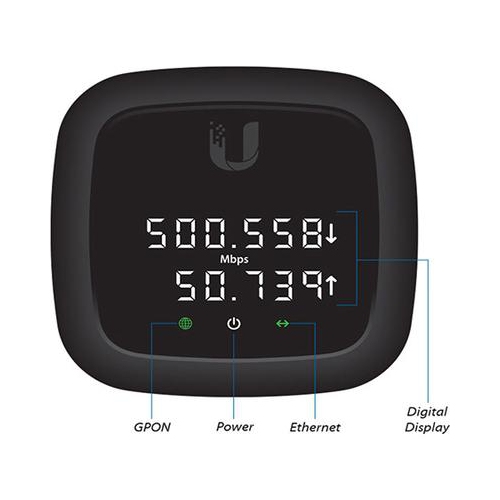

· Buttons: (1) Display Information, (1) Reset

· Operating Temperature: -10 to 45 Deg C (14 to 113 Deg F)

· Certifications: CE, FCC, IC
