VEVOR 1/4 HP 4 CFM AC Vacuum Pump and Gauge Set, Single Stage Rotary Vane HVAC Air Vacuum Pump A/C Refrigerant Kit Manifold Gauge Set, with Hose Carry Bag,Applicable to R134a,R410a

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

· Manifold Gauge

The manifold gauge contains the commonly used refrigerant scale, which is convenient for measuring various equipment.

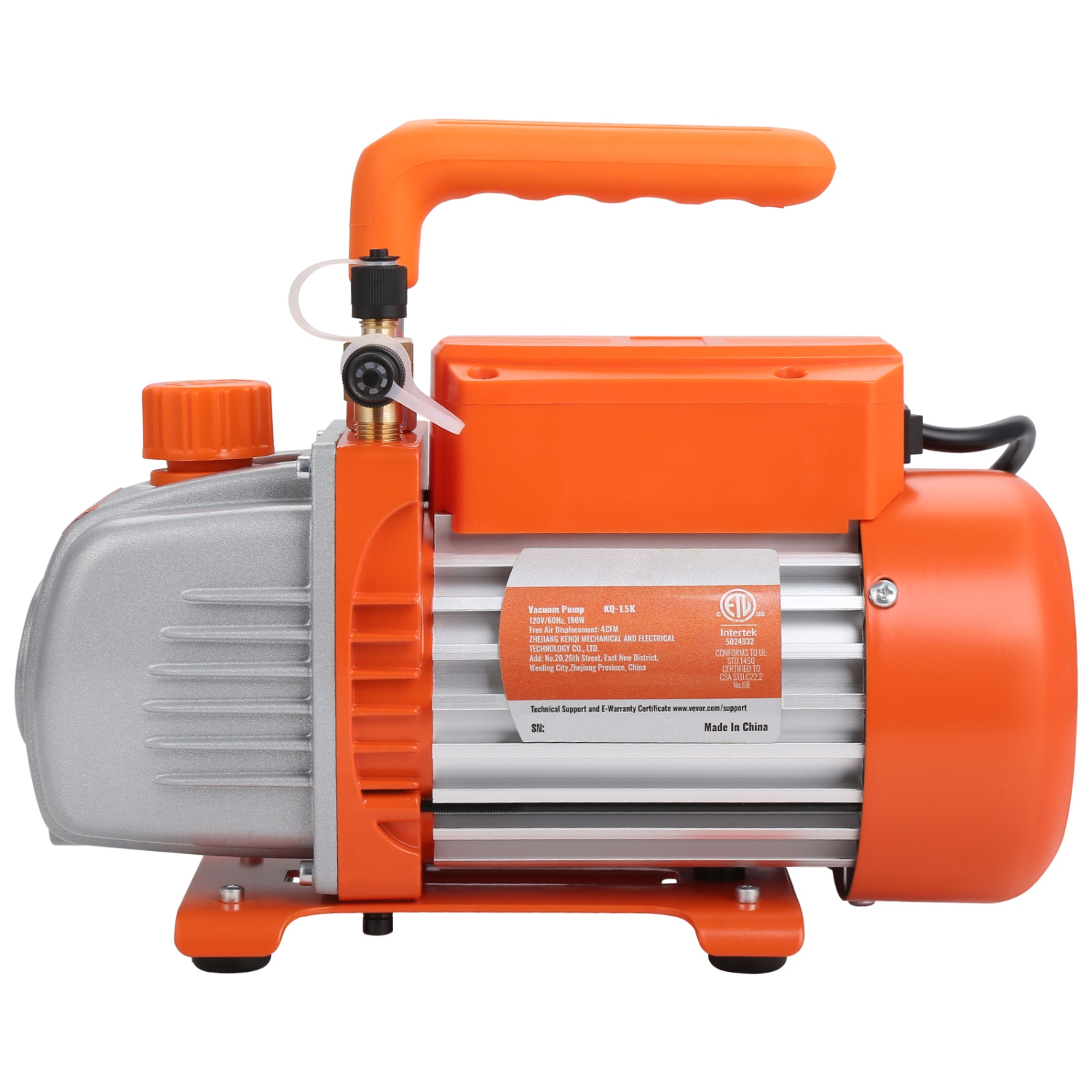

· Vacuum Pump Body

The ac vacuum pump automotive obtains vacuum by pumping out gas, and the pump chamber is better sealed.

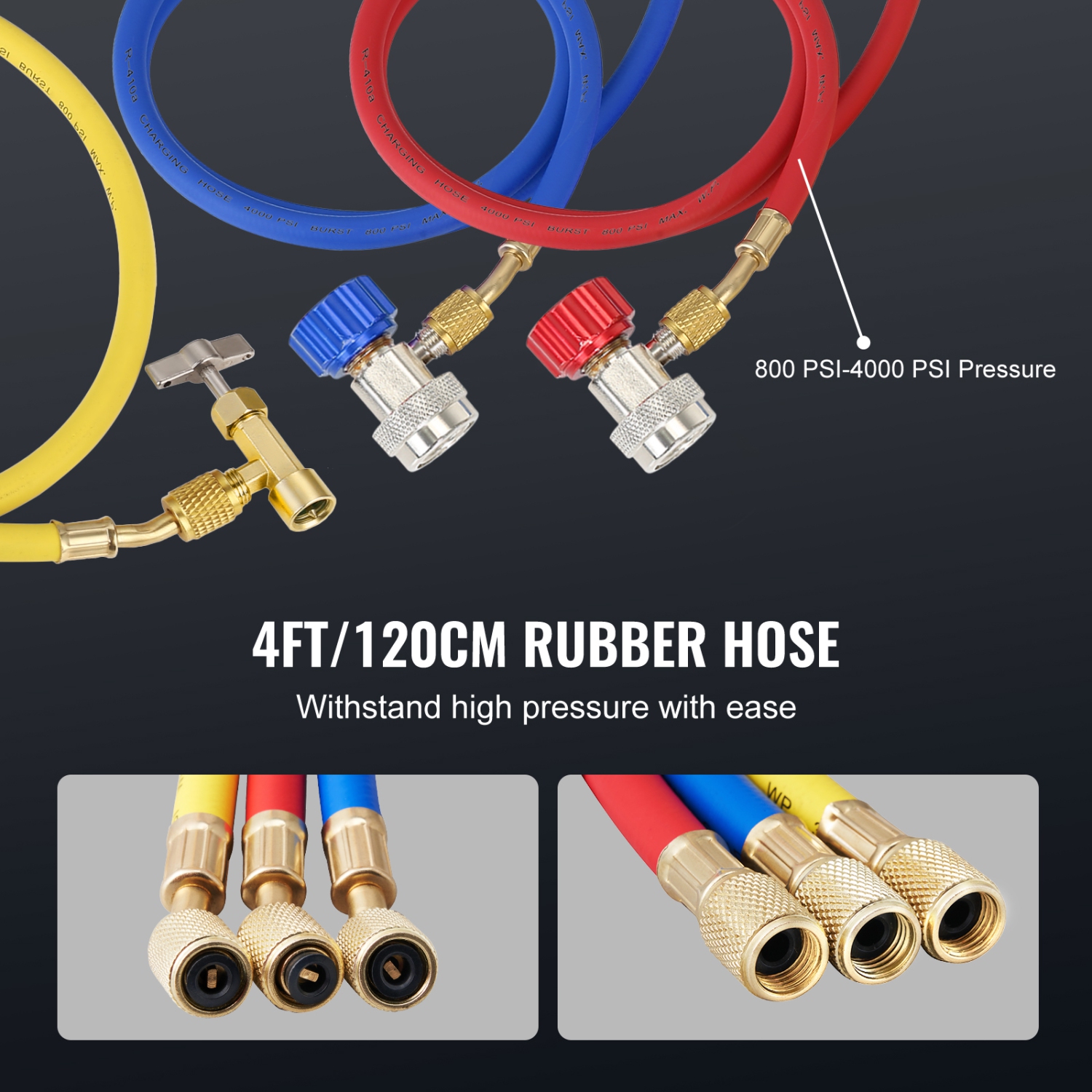

· Three-Color Hose

The hose features a leak-proof seal design with a working pressure of 800-4000 PSI for outstanding durability.

· Pure Copper Motor

The HVAC vacuum pump adopts high speed with a large torque design at low heat and low noise.

· Fast Heat Dissipation

T-type heat sink help dissipate heat well, and the motor is designed with overheat protection to run securely.

· Wide Application

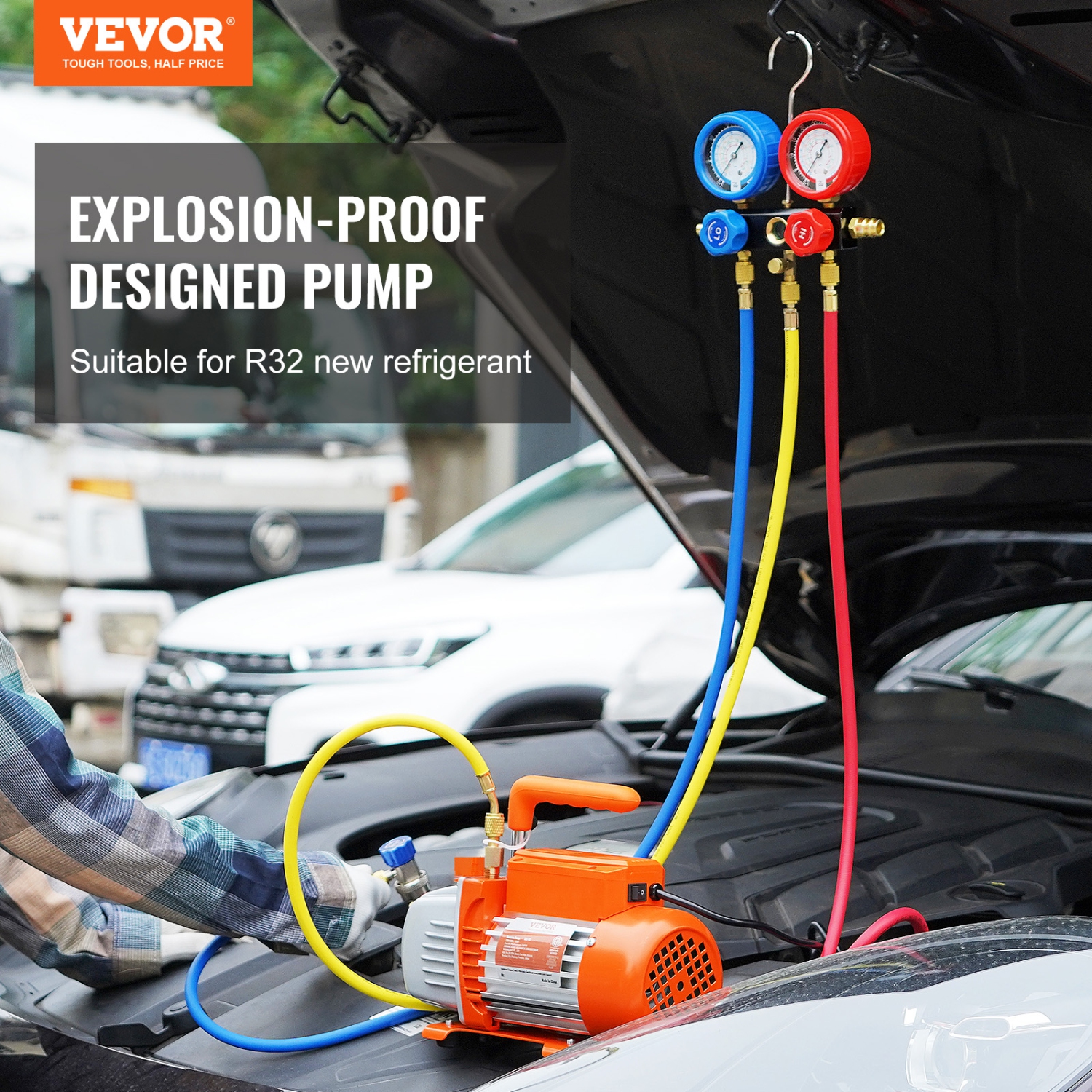

This vacuum pump and manifold gauge set is ideal for automotive refrigeration maintenance and central air-conditioning refrigeration maintenance.

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Item Model Number: TW-1.5K(R32)

Free Air Displacement: 4 CFM

Ultimate Vacuum: 40 microns

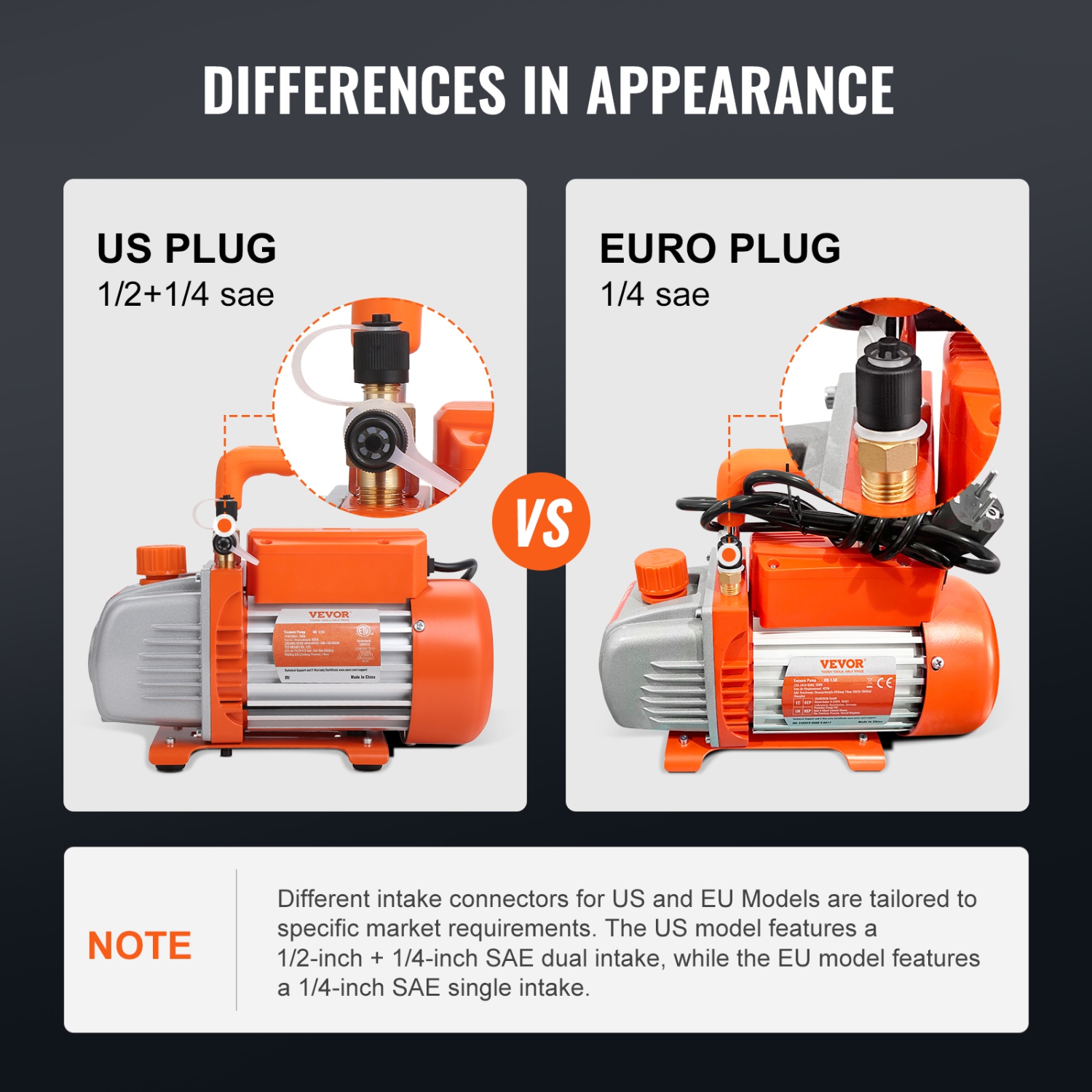

Intake Fitting: 1/4"SAE male; 1/2"ACME male

Speed: 1720PRM

Voltage/Frequency: 120V/60 Hz

Power: 180W, 1/4HP

Oil Capacity: 200 ml

Net Weight: 17.6 lbs/8 kg

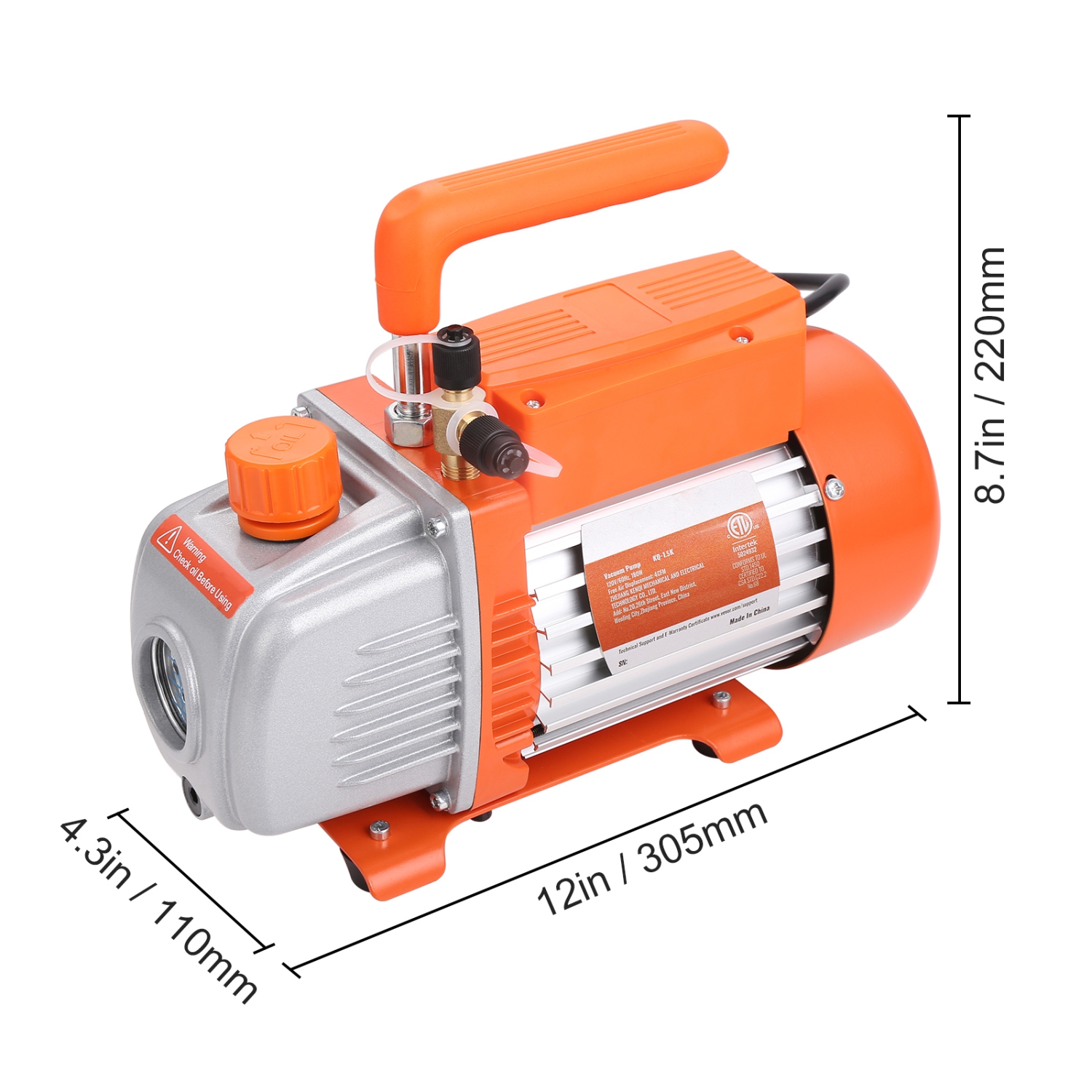

Item Dimensions: 12 x 4.3 x 8.7 in/305 x 110 x 220 mm

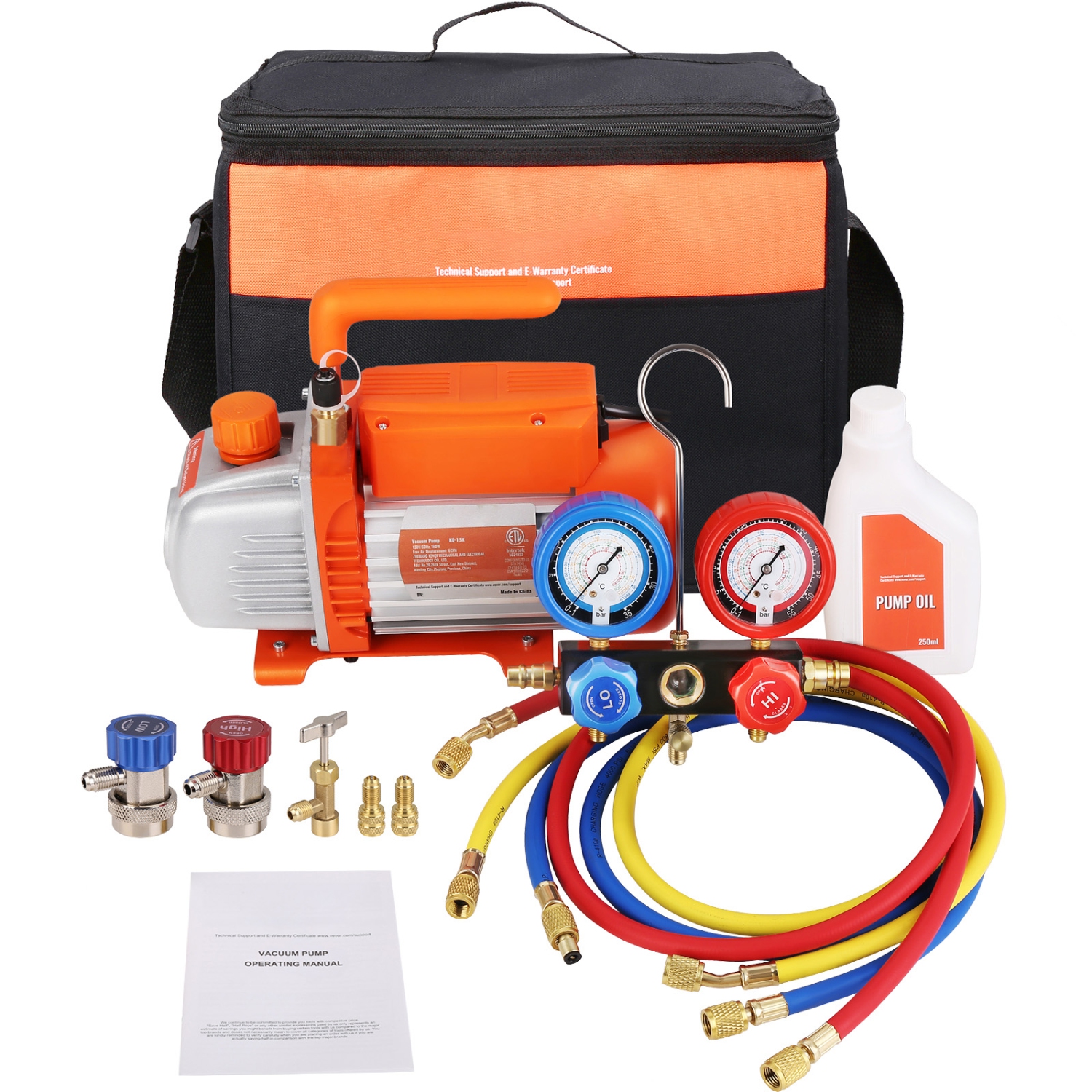

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

1 x Vacuum Pump

1 x Manifold Gauge Set

1 x Three Colors Hose

2 x R410A Adapter

1 x R134a Quick Coupler

1 x Bottle Opener

1 x Carry Bag

1 x 250 ml Oil Bottle

1 x User Manual

· High-Performance Vacuum Pump: Single-stage pump is designed for a higher and more stable ultimate vacuum. It passes A2L explosion-proof test for reliable performance and efficient operation and maintains the air conditioning system. Free Air Displacement: 4 CFM, Ultimate Vacuum: 40 microns, Intake Fitting: 1/4"SAE male and 1/2"ACME male, Speed: 1720PRM, Voltage/Frequency: 120V/60 Hz, Power: 180W, Oil Capacity: 200 ml.

· Premium Manifold Gauge Set: The manifold gauge is designed to measure pressure in refrigeration equipment and ensure accurate readings. The rubber-wrapped design is drop-proof and more durable. It contains common refrigerant scales for easy use in a variety of refrigeration equipment.

· High Strength 3-Color Hose: The hose is made of rubber and has a leak-proof seal design that is flexible, durable, and not easily damaged. 800-4000 PSI working pressure, ideal for high-pressure refrigerant refrigeration systems such as R32.

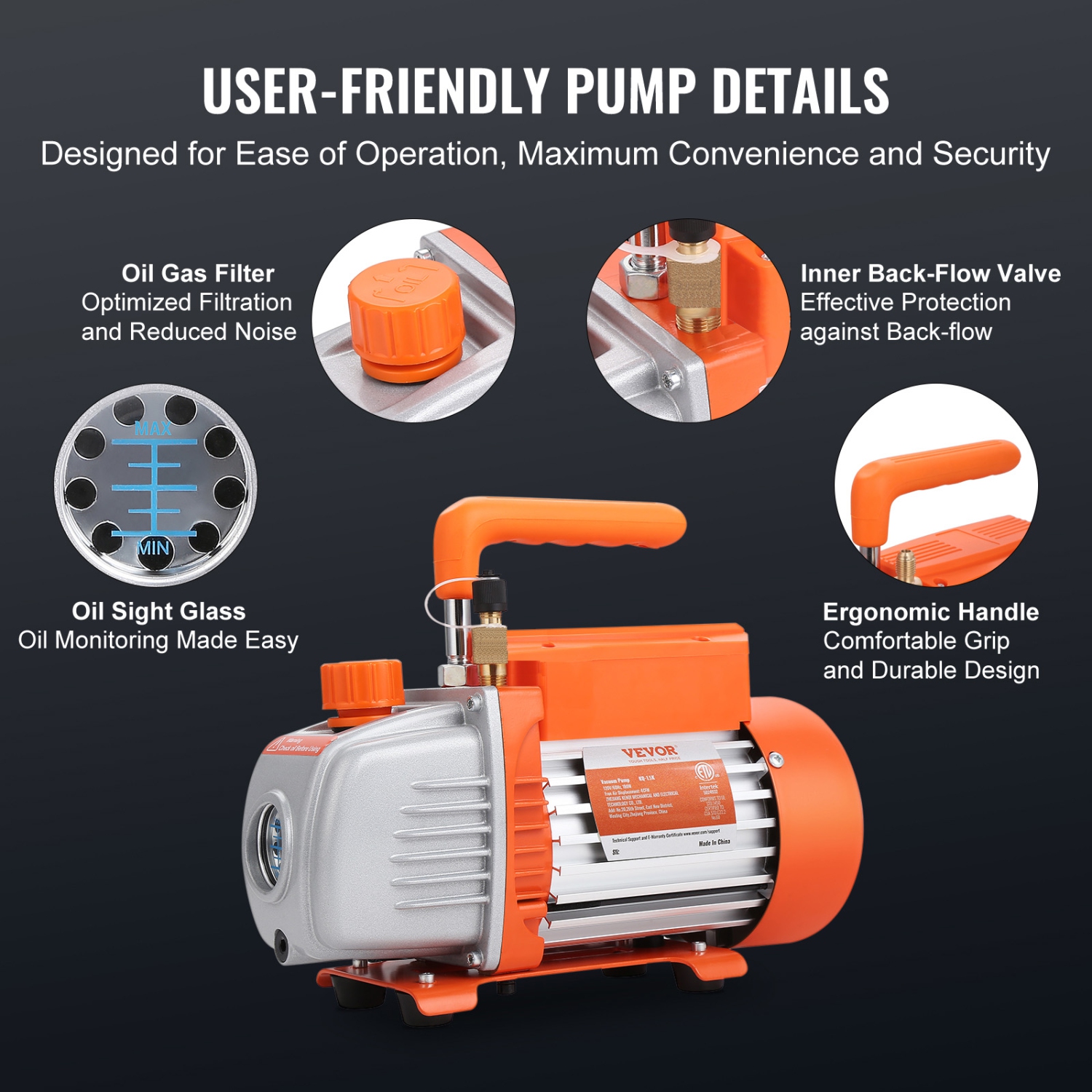

· Comfortable & Portable Design: Get ready to experience complete comfort! The T-shaped heat sink helps dissipate heat effectively. With the bonus of a sight glass and oil level scale, you can easily monitor the status of your oil level and lubricating oil, ensuring timely maintenance. The ergonomic handle is shaped to fit your hand for easy lifting and holding.
