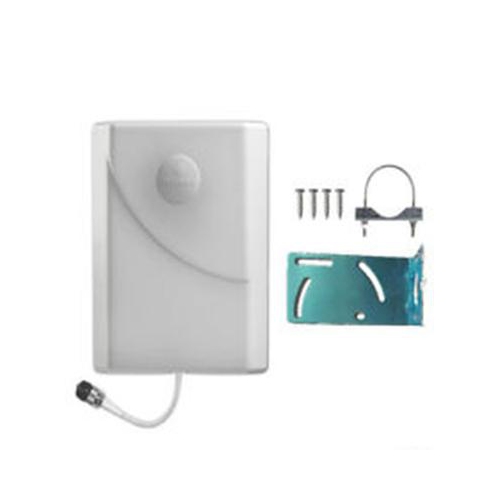

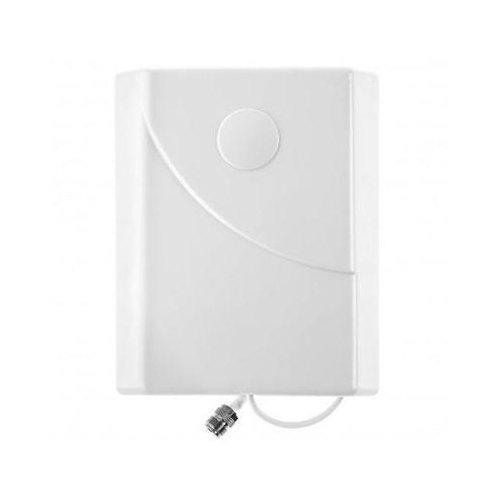

weBoost Pole Mount Panel Building Antenna - 700-2700 MHz - 75 Ohm F-Female

Benefits

• Designed to be used as an outdoor, pole-mount directional antenna

• Works with 75 Ohm amplifiers and accessories

• Fixed installations

• Built-in ground plane

• Up to +10.6 dB Gain

• Works well on all major North american frequencies

• Used as a directional antenna so targeting a specific area will improve the system's boosting performance

• It will project enhanced signal to the front of the antenna and, to limited effect, the sides

• Weather resistant

Technical Specifications

• Frequency: 700-800 MHz = 5.2 dB; 824-894 MHz = 4.4 dB; 880-960 MHz = 4.2 dB; 1710-1880 MHz = 10.1 dB; 1850-1990 MHz = 10.6 dB; 2110-2170 MHz = 8.2 dB

• Radiation: Directional

• Impedance: 75 Ohms

• Beamwidth Horizontal Plane: 70/60 Deg

• Beamwidth Vertical Plane: 50/45 Deg

• Connectors: F-Female
