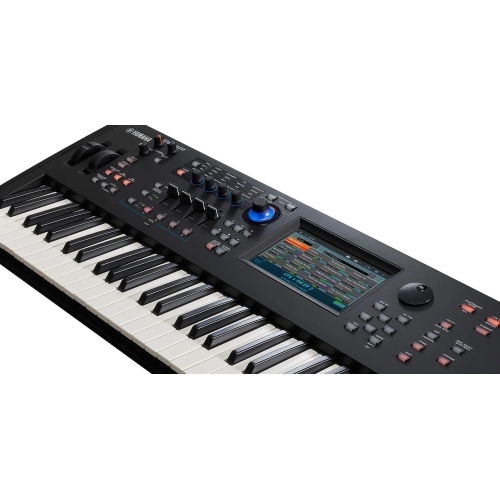

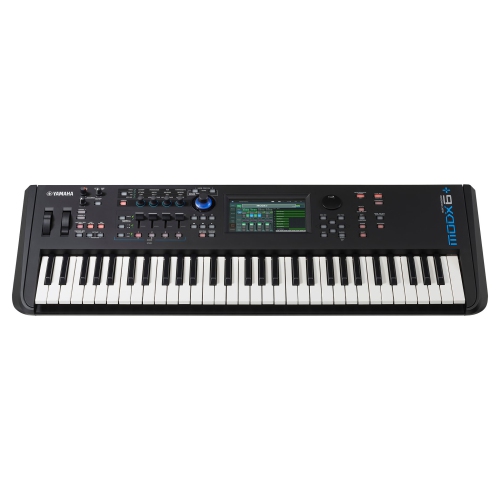

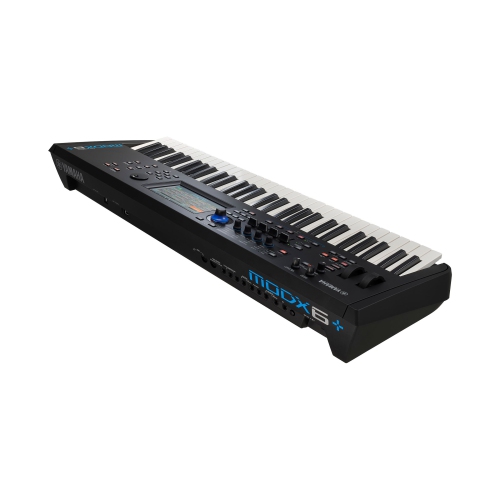

Yamaha MODX6+ 61-Key Semi Weighted Synthesizer

MODX6+ is a compact, lightweight, 61-key synthesizer designed for keyboardists to create deep sounds that stand out on every stage, studio or stream.

MODX+ is powered by the same innovative technologies found in Yamaha's flagship MONTAGE synthesizer including the AWM2 (Advanced Wave Memory 2) sample and synthesis engine and a pure FM-X (Frequency Modulation) synth engine for amazing sound playback and complex sound design.

MODX+ Motion Control brings the sophisticated automation of music production to live performances by giving you simultaneous control of up to 128 parameters. So you can shape live sound like a conductor commands an orchestra.

SOUND

Sound is the most important element of any instrument. MODX+ makes all elements of your music sound amazing. MODX+ uses the same technology that powers the flagship MONTAGE: 128 notes of AWM2 (Advanced Wave Memory 2) sample and synthesis polyphony for stunning emulative acoustic instruments, synth sounds and drums. MODX+ also features 128 notes of FM-X (Frequency Modulation) polyphony - a unique, expressive, highly-programmable synthesis technology for dynamic, electro-modern music creation.

CONTROL

Every artist wants to find their own sound. Motion Control is designed to bring the sophisticated automation of music production to real-time live performances. All to help you create inspired music that stands out on every stage, studio or stream.

MOBILITY

Designed for musicians on the go, MODX+ is compact, lightweight and mobile.

AWM2

The AWM2 (Advanced Wave Memory 2) engine is exclusive to Yamaha synthesizers and offers much more than just sample playback. Each of the 16 AWM2 Parts feature eight programmable synthesizers with 18 different filter types, amplitude, pitch and filter envelope generators, nine LFOs, 3-band EQ and a dedicated dual insert effect with Virtual Circuitry Modeling.

FM-X

Everything you love about the iconic DX7 meets the latest Yamaha innovations. FM-X produces classic '80s or cutting-edge EDM synthesizer sound with incredible dynamic range, power and fidelity. MODX+ goes well beyond the capabilities of the original DX7 with an 8-operator FM architecture, 128-note polyphony, many filter types and more. All with Motion Control for ever-evolving and changing textures to create sounds no one has ever heard before.

SMART MORPH

Smart Morph enables morphing between FM-X sounds. Its sophisticated A.I. algorithm creates an interactive morphing map from up to eight FM-X sounds. You can "play" this map from the touchscreen or use the Super Knob to move between two points. The result is a staggering number of interesting and interactive new sounds.

256-NOTE TOTAL POLYPHONY

MODX+ features 128-note stereo AWM2 polyphony and 128-notes of FM-X polyphony. Due to the unique architecture of MODX+ and MONTAGE, this polyphony is always available without latency or compromising other features.

INTEGRATED FLASH

Save your music in a flash. MODX+ includes 1.75GB of non-volatile, low latency user flash memory with high speed reading/writing for your own custom samples or synth libraries from here.

EFFECTS

MODX+ is packed with DSP innovation, power and sound quality to bring you everything from high-definition reverbs to detailed Virtual Circuit Modeling (VCM) effects. Get EDM sound with effects like Beat Repeat, Vinyl Break or Bit Crusher. Use the Spiralizer effect to create the auditory illusion of tone continuously rising or falling in pitch.

Add a compressor with sidechain for a modern "ducking" effect. Or go retro with vintage effects like Analog Delay, VCM Phaser or a variety of Amp Simulators.

Piano players will feel like they're in heaven, or some other incredible performance space, with piano-focused effects like Damper Resonance and HD reverbs for a super-realistic piano experience.

A/D Input

A stereo A/D input allows you to bring external sources like analog synthesizers, vocals and other instruments into the MODX+ motion control system. Which means MODX+ control goes well beyond simple onboard effect processing. Control individual parameters with the physical controls or have MODX+ provide "invisible hands" using Motion Control. Add the Vocoder, Envelope Follower and Auto Beat Sync and it's like the A/D input on MODX+ becomes an instrument unto itself.

SIDECHAIN

Sidechain is a popular effect in modern dance music where a pad or other sustain part is "keyed" to the kick drum. When the kick drum plays, it ducks down the sustained part creating a "pumping" rhythmic effect.

COMPATIBILITY

Out of the box, MODX+ gives you access to sounds made by Yamaha's world- class sound designers and artists, including sounds from the MOTIF series as well as the legendary DX7. You'll have a massive sound library at your fingertips.

DAW INTEGRATION

MODX+ Connect is a convenient tool which lets you transfer data between your computer and the MODX+. Song data created on the MODX+ can be transferred to your computer and the Performance data edited on the MODX+ can be saved as a file (.X7B) on the computer.

MODX+ Connect, based on Steinberg's VST3 technology, works as a VST3 plug-in with the Cubase series. The MODX+ Connect works the same as other VST instrument software, allowing you to save the edited settings of the MODX+, or use them for another project.

MODX+ Connect also works as an AU plug-in. For AU compatible DAW software, refer to the separate Release Notes.

It can also be used as standalone software.

MULTI-CHANNEL USB AUDIO INTERFACE

As expected for modern computer-based music production, MODX+ features a professional 4-in/10-out, multi-channel USB audio interface. Coupled with two A/D inputs, MODX+ is a perfect centerpiece for any professional recording studio or live computer rig.

A single-cable connection replaces the need for an external audio interface. iOS compatible

LIGHTWEIGHT

The 61-note MODX6+ weighs in at 14.6 lbs.

Soft Case (sold separately)

The premium soft case for MODX+ is protective, lightweight and stylish. Not just a mere "gig bag", the MODX+ soft case is manufactured with top-notch nylon, high quality zippers, pockets for pedals and cables and a luxurious inside that will keep your MODX+ protected and looking great for years to come.

MODX6+ SPECIFICATIONS

Dimensions (W x H x D): 937mm (36-7/8") x 134mm (5-1/4") x 331mm (13-1/16")

Weight: 6.6 kg (14 lbs 9 oz)

Keyboard: 61 key Semi-weighted Keyboard with initial touch

Aftertouch: No

Tone Generator: Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms

Maximum Polyphony:

AWM2: 128 (max.; stereo/mono waveforms)

FM-X: 128 (max.)

Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part

Wave: Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB

Performance: 2,227

Filters: 18 types

Effects:

Reverb x 12 types

Variation x 88 types

Insertion (A, B) x 88 types*2

Master Effect x 26 types *2

A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates)

Master EQ (5 bands)

1st part EQ (3 bands)

2nd part EQ (2 bands)

Controllers:

Master Volume

AD Input Gain knob

USB Volume

Pitch Bend wheel

Modulation wheel

Control Sliders x 4

Knobs x 4

Super Knob

Data dial

Display: 7" TFT Colour Wide VGA LCD touch screen

Connectors:

[USB TO DEVICE]

[USB TO HOST]

MIDI [IN]/[OUT]

FOOT CONTROLLER [1]/[2]

FOOT SWITCH [ASSIGNABLE]/[SUSTAIN]

OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

[PHONES] (6.3 mm, standard stereo phone jack)

A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Power Consumption: 16 W (when using PA-150B AC adaptor)

Accessories: AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner's Manual, Cubase AI Download Information

Live Sets: Preset: 256 and more, User: 2,048

Performance Recorder

Note Capacity: Approx. 130,000 notes

Note Resolution: 480 ppq (parts per quarter note)

Storage Size: Approx. 520,000 notes (for Patterns) and approx. 520,000 notes (for Songs)

Tempo (BPM): 5 - 300

Songs: 128 songs

Tracks: 16 Sequence tracks

Recording type: Real time replace, Real time overdub, Real time punch in/out

Patterns: 128 patterns

Arpeggio: Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types

Sequence formats: MODX original format, SMF formats 0, 1
