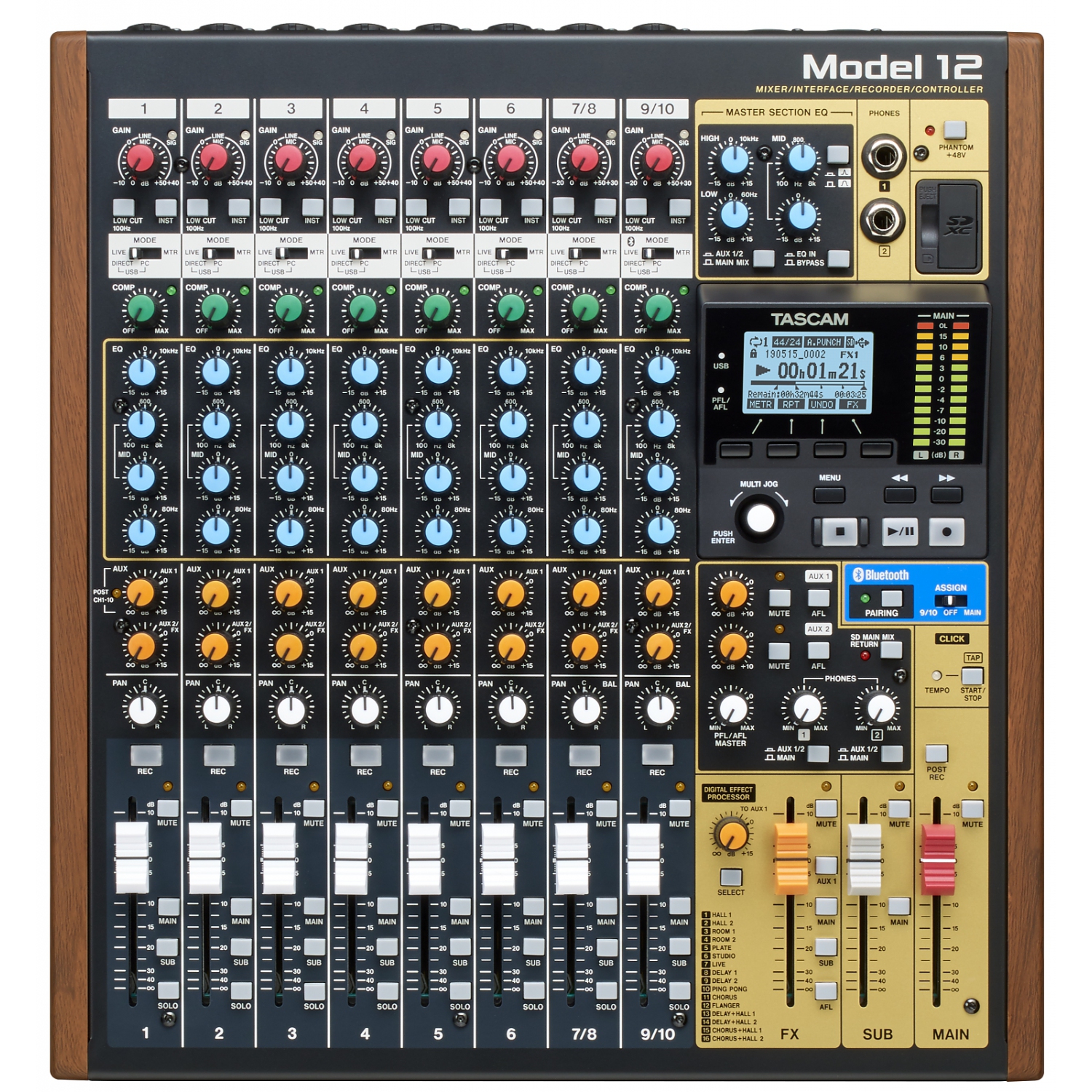

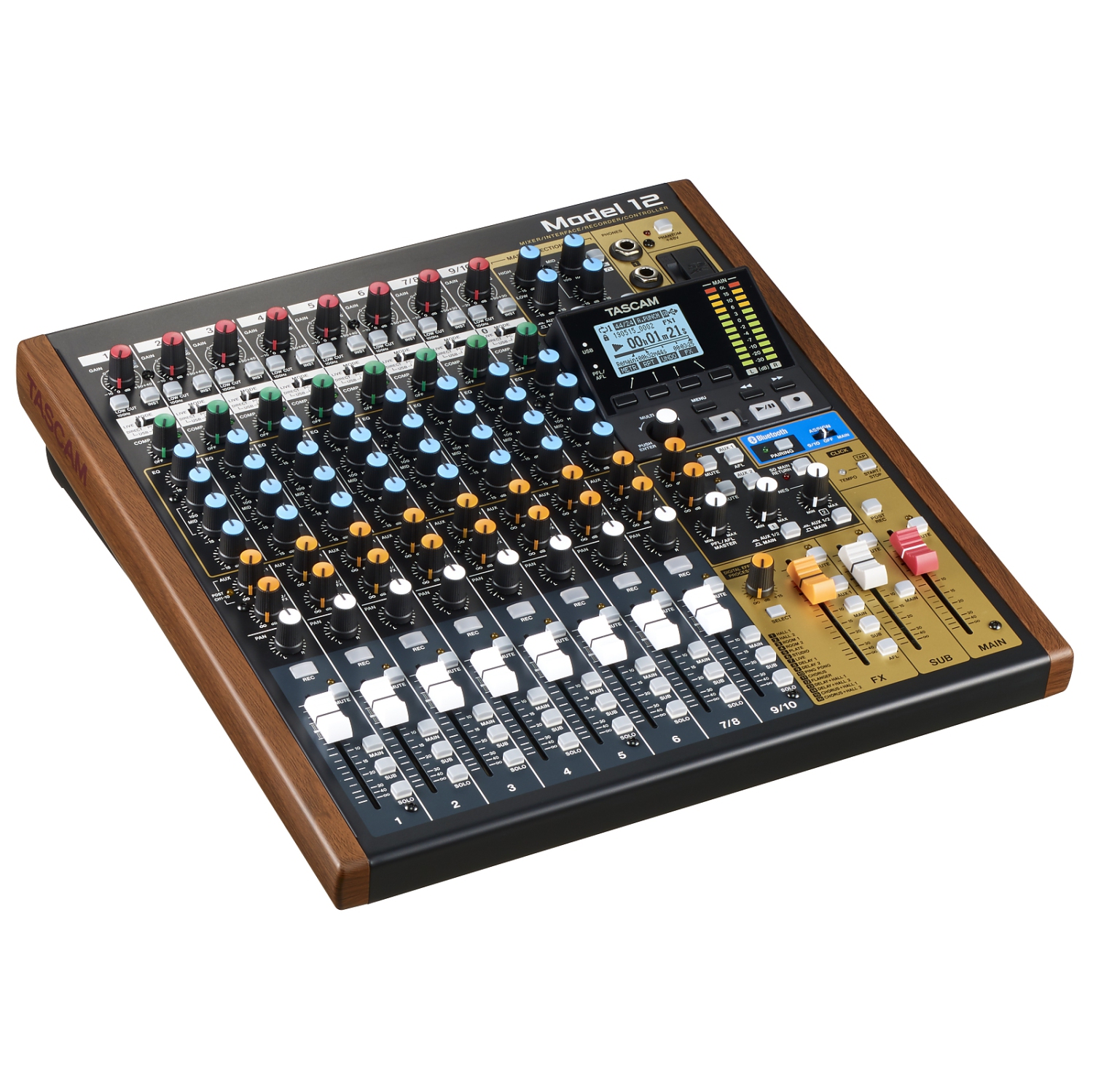

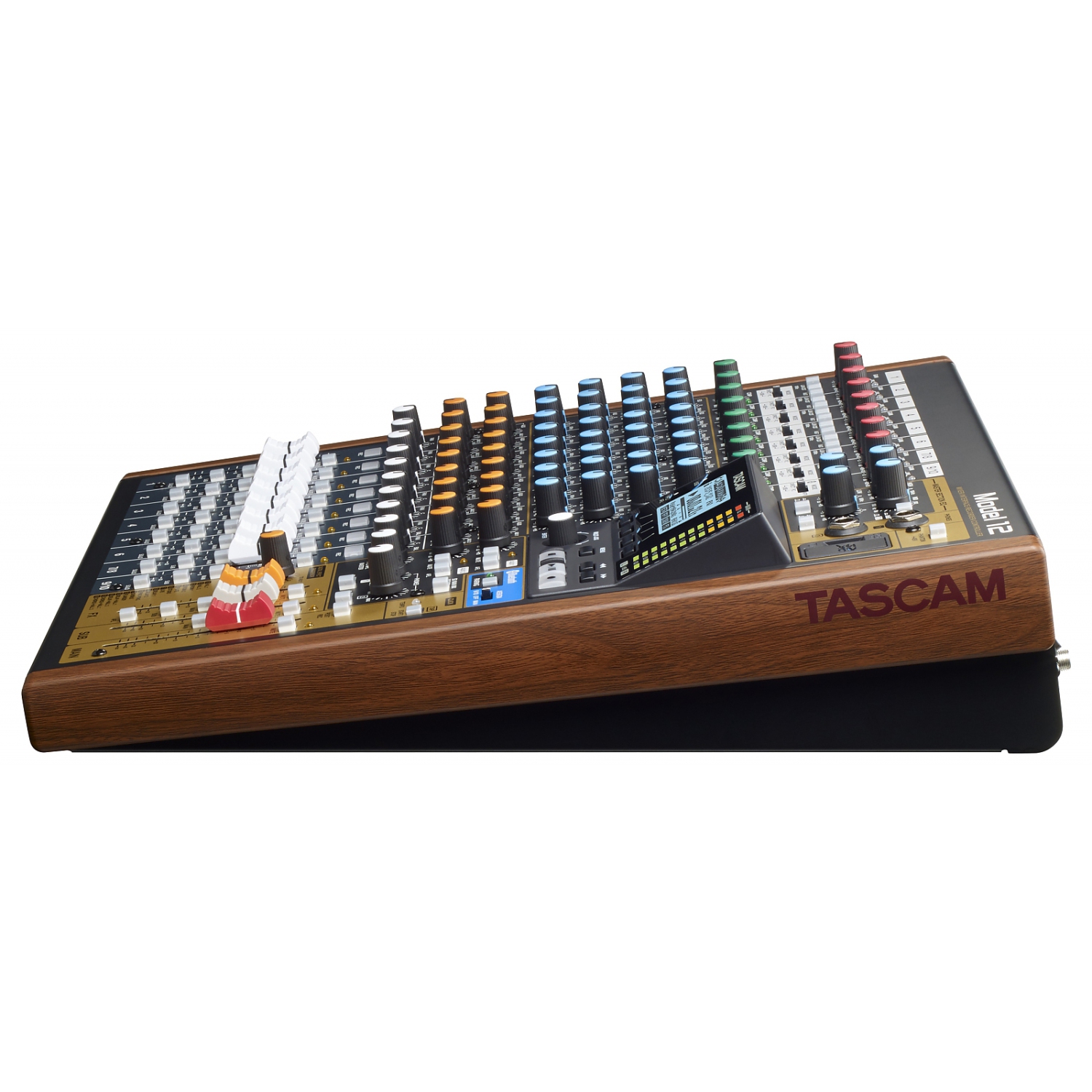

Tascam Model 12 Mixer / Interface / Recorder / Controller, 12x10 Channel

Model 12 Integrated Production Suite Mixer / Recorder / USB Interface for Music and Multimedia Creators

Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input.

Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.

12-Track Recording and 10-Track Playback

Tascam Model 12 12-track recording and 10-track playback

The Model 12's intuitive internal 12-track recorder creates WAV files of up to 24-bit/48 kHz audio quality directly to an SD card. Up to ten tracks can be played back simultaneously. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported from another Tascam Model Series mixer like the Model 12, Model 16 or Model 24. And, of course, it is possible to export tracks in WAV file format which can then be imported directly into a DAW for further editing or production.

All-in-One Audio Production From Recording to Mastering

The Model 12's seamless integrated workflow facilitates less focus on the technical and more on the creative part. The built-in multi-track recorder allows one-button recording and playback. And the comfortable, familiar feel of the 60-mm faders, one-knob compressor, three-band EQ, and high-quality Tascam effects enable fast and intuitive tweaking of mixes and tones.

Pristine Audio Quality

Tascam Ultra-HDDA mic preamps with an Equivalent Input Noise (EIN) of 128 dB ensure low noise and natural, high-grade sound quality. Apart from microphones and line-level sources, all inputs can also be used for direct connection of guitars, basses, and other high-impedance (Hi-Z) sound sources.

Compact Size With Plenty of Inputs

The compact Model 12 packs eight XLR microphone inputs (with switchable +48V phantom power), ten TRS line inputs, a 3.5-mm TRRS input (for a smartphone) and a Bluetooth 5.0 input to handle any small-format recording or live production environment.

FEATURES AT A GLANCE

* 10-channel mixer with built-in 12-track recorder and USB audio interface

Mixer features

* Ten analogue inputs on six mono and two stereo channels

- Eight mono mic inputs on XLR connectors with switchable phantom power (48 V)

- Ultra-HDDA microphone preamps on inputs 16

- Eight channels can be used with high-impedance instruments like electric guitars/basses

- Ten balanced line inputs (six mono, two stereo)

- Multi-purpose stereo channel for input from mobile devices via Bluetooth or TRRS smartphone connector (CH 9/10)

- Inserts on input channels 1 and 2

Mix-minus function on smartphone mini-jack input

* Two Aux outputs (monitor, effects) and two stereo outputs with independent master faders (Main, Sub)

* Monitoring can be selected between PFL (pre-fader), AFL (after-fader) and SIP (solo-in-place)

* Dedicated click output with tap tempo feature

* One-knob compressor for all input channels

* Three-band equalizer with sweepable mids for all input channels

* Switchable low-cut filter (100 Hz) on each channel

* Semi-parametric EQ with sweepable mid band for aux or main outputs

* Built-in Bluetooth receiver for wireless playback

* On-board effects processor

- 16 effects types

- Can be used on all input channels, aux busses, sub and main stereo bus

- Can be turned on/off by an optional footswitch (Tascam RC-1F)

* Compact 11 x 60mm faders

* 12-segment LED output level meters

* XLR balanced outputs for main stereo bus

* TRS balanced outputs for sub and aux outputs

* Two headphones outputs with separate level controls

Recorder features

* Tascam multi-track recording engine, uses SD cards as storage media (up to 512 GB)

* Up to 12 tracks (10 input channels + stereo mix) can be recorded without the need for a computer

* Recording/playback format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)

* Overdubbing, punch in/out recording

* Multi-track playback for advanced live performance

* Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments

Audio interface features

* USB audio interface for use with Windows (ASIO) and Mac (Core Audio) computers

* Transfer to computer: 12 channels (all 10 inputs + stereo mix)

* Transfer from computer: 10 channels, assignable to each channel input

* Audio resolution 44.1/48 kHz, 16/24 bit

* USB MIDI interface function

* Simple DAW control support via HUI/MCU protocol emulation

Other features

* MIDI input and output

* Support for MIDI timecode (MTC) and MIDI clock output with song position pointer (SPP)

* Simple and quick menu operation with multi-jog dial

SPECIFICATIONS

Recorder

Recording media

SD (512 MB 2 GB)

SDHC (432 GB)

SDXC (64512 GB)

File system: FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)

Recording file format: WAV (BWF, maximum file size: 2 GB)

Sampling frequency: 44.1 kHz, 48 kHz

Recordable channels: 12 channels max. (10 inputs + stereo mix)

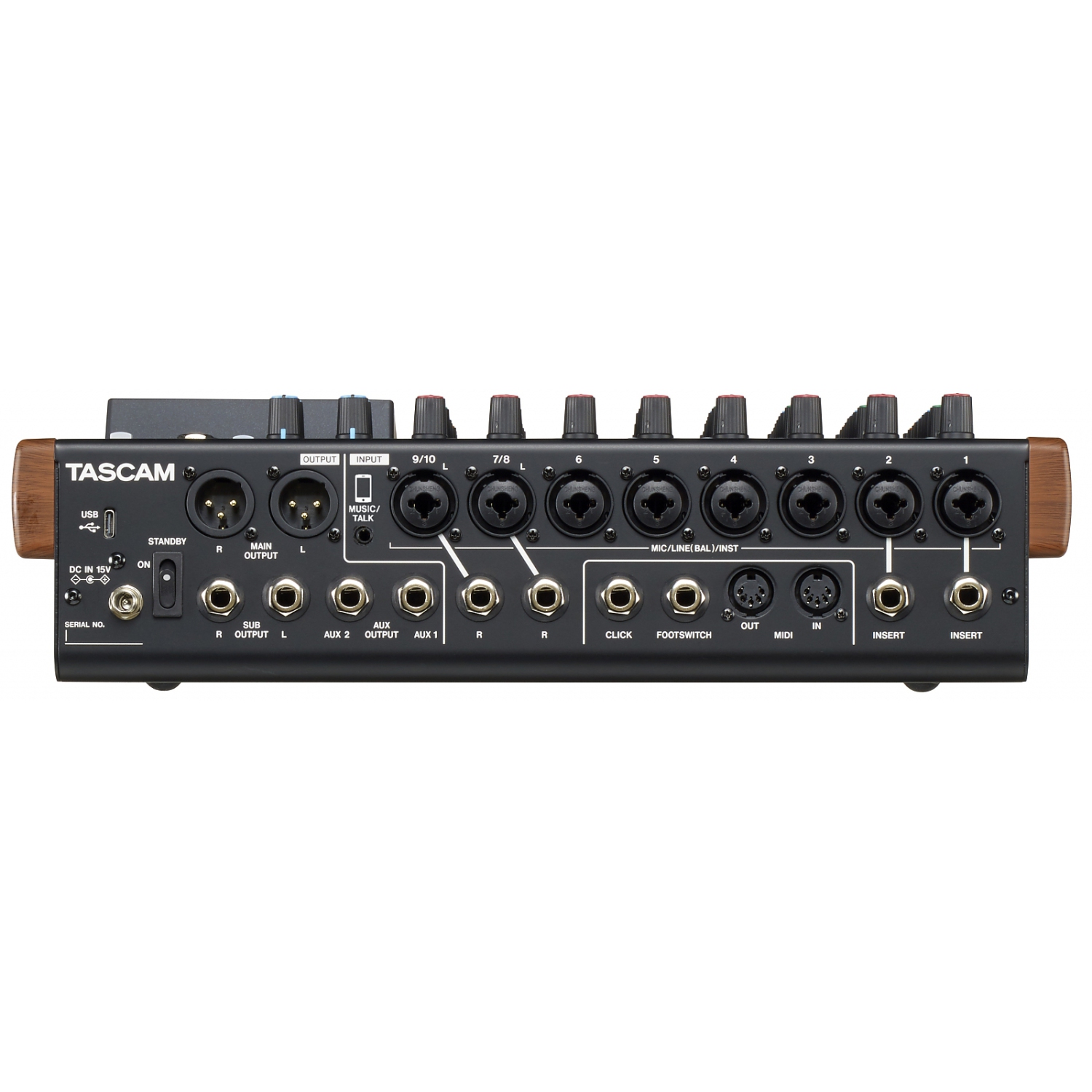

Audio inputs and outputs

Microphone inputs (CH 16, 7/8, 9/10): XLR-3-31, balanced

Line inputs (CH 110): 6.3-mm TRS phone jack, balanced

Instrument inputs (CH 16, 7, 9): 6.3-mm TS phone jack, unbalanced

Inserts (CH 12): 6.3-mm TRS phone jack

Music/Talk input (CH 9/10): 3.5-mm TRRS mini jack, unbalanced

Main output: XLR-3-32, balanced

Sub output, Aux output: 6.3-mm TRS, balanced

Phones output 1/2: 6.3-mm stereo phone jack

Footswitch connector: 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended)

EQ Bands

* 3-band EQ with Sweepable Mid Frequency, 100Hz Low-cut

* 3-band Master EQ

Audio performance

Residual output noise: 103 dBu

(MAIN OUT, MAIN fader at nom.)

Equivalent input noise (EIN): 128 dBu

(Mono input channel at 150 Ω, GAIN at max.)

Total harmonic distortion (THD+N): MAIN OUT, 1 kHz, GAIN at min., +2 dBu)

Frequency response: 20 Hz to 20 kHz, +0.1/0.15 dB (MIC IN-> MAIN OUT)

Channel crosstalk: 95 dB

(1 kHz, PAN fully counter-clockwise / fully clockwise)

Maximum gain:

74 dB (MIC to MAIN OUT)

50 dB (MIC to INSERT OUT)

74 dB (MIC to SUB OUT)

75 dB (MIC to AUX 1/2 OUT)

24 dB (USB/SD to MAIN OUT)

(all EQs flat, PAN fully counter-clockwise / fully clockwise)

Phantom Power: DC 48 V

Computer system requirements

Windows

Compatible computers: Windows-compatible computer with a USB 2.0 (or higher) port, Dual core, 2 GHz or faster

Macintosh

Compatible computers: Apple Mac computer with a USB 2.0 (or higher) port, Dual core, 2 GHz or faster

USB audio specifications

Sampling rate: 44.1 kHz, 48 kHz

Bit depth: 16 bit, 24 bit

Maximum number of audio channels: 12 inputs, 10 outputs

Bluetooth: Version 5.0

(approximate transmission distance: 10 m)

Power supply and other specifications

Power supply: Tascam AC adapter (included, input voltage AC 100240 V, 50/60 Hz)

Power consumption: 16 W

Dimensions (W D H, overall): 343 mm 360 mm 99 mm

Weight: 4.3 kg

Permissible operating temperature range: 535 C

Included items: AC adapter, Owners manual incl. warranty
