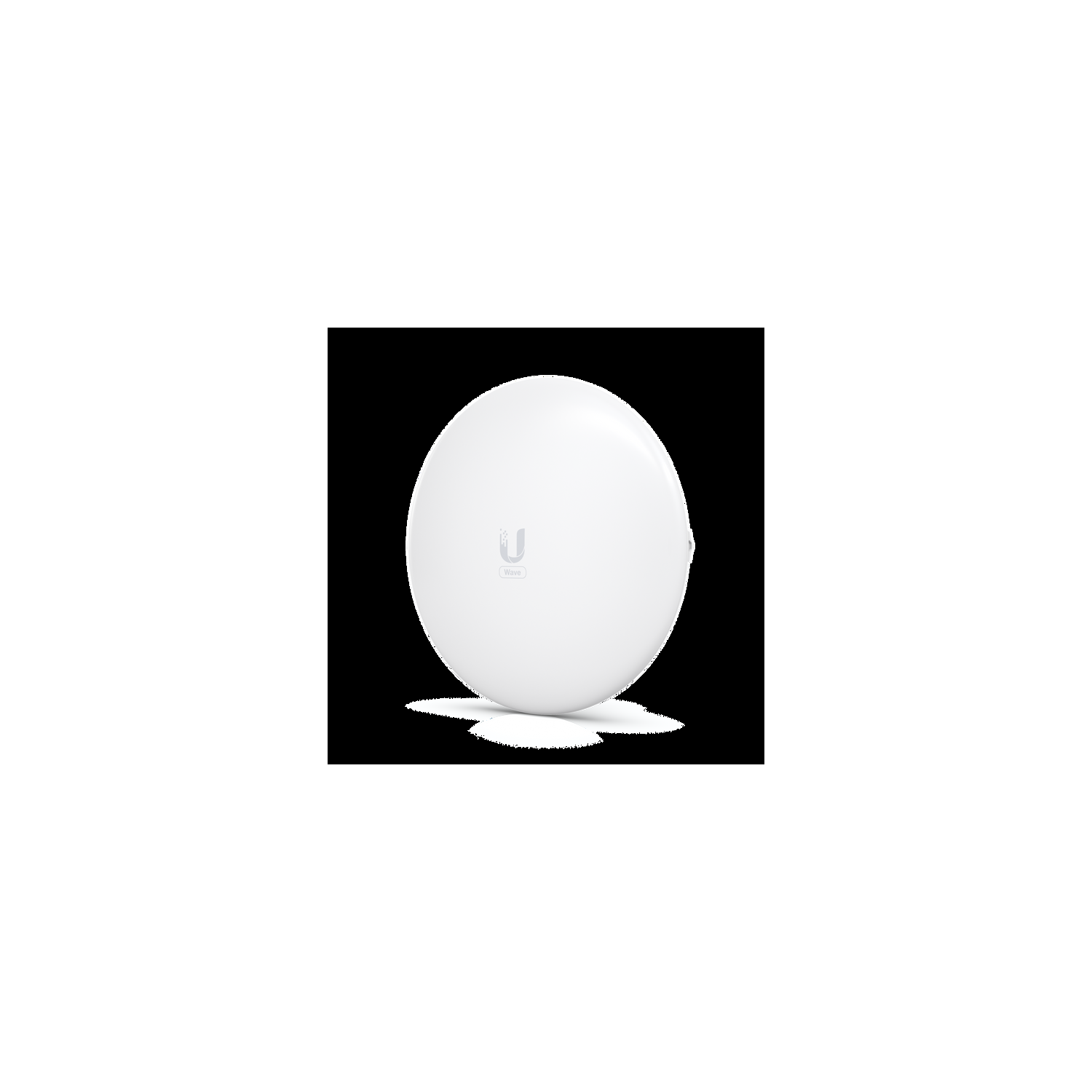

Ubiquiti UISP Wave Nano 60-GHz PtMP Station Powered by Wave Technology - White

Benefits:

• 5 GHz backup radio

• Router mode support

• Integrated GPS antenna

• Link planning support via ISP Design Center

• Managed with UISP application - Version 1.4.5 and later

Technical Specifications:

• Processor: Dual ARM® Cortex®-A53 cores at 1GHz

• Memory: DDR3L 512MB

• Networking interface: (1) GbE RJ45 port

• Max. power consumption: 18W

• Power method: 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-), 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

• Power supply: 48V DC, 0.65A gigabit PoE adapter (included), can be powered by a UISP Router or UISP Switch

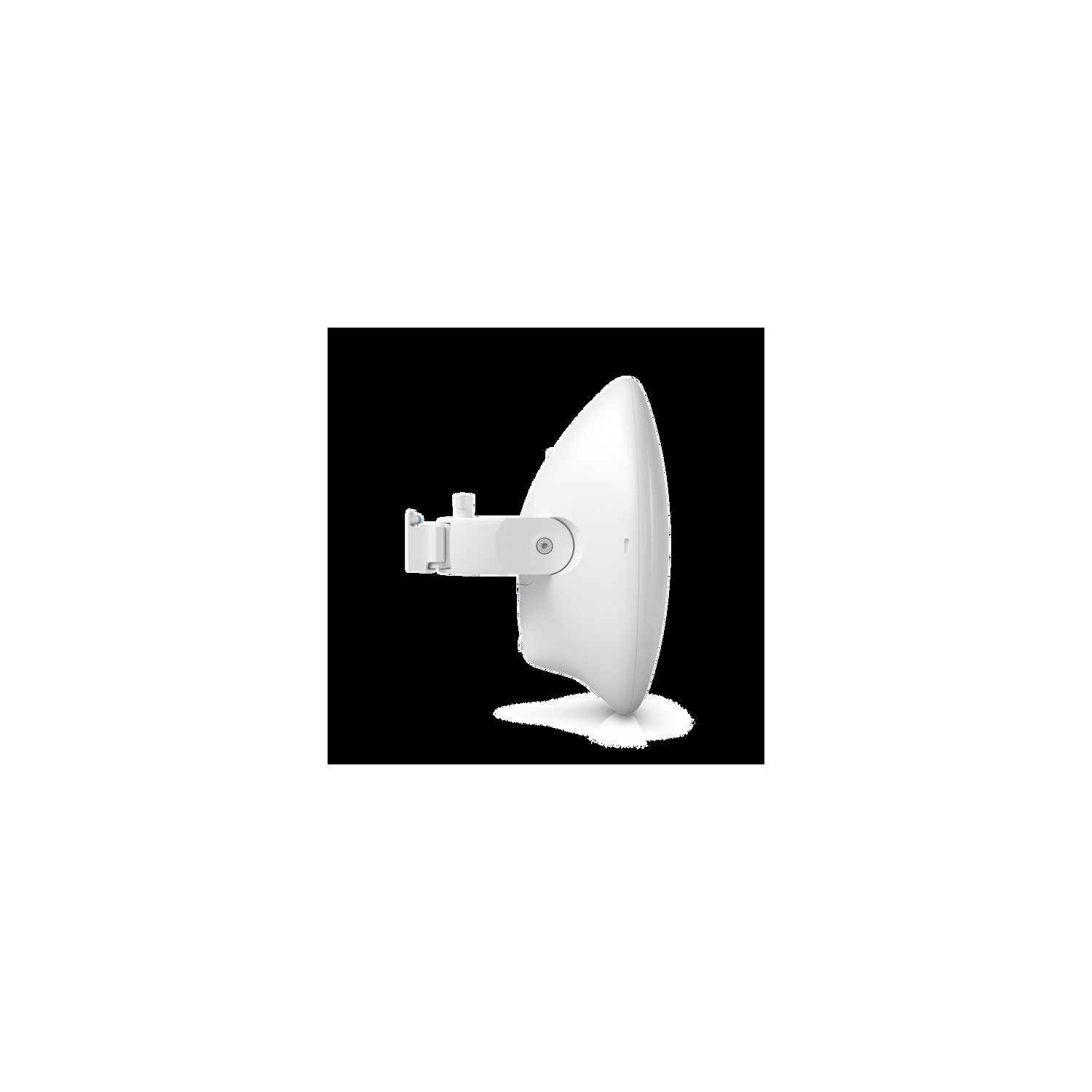

• Pole mount diameter: 25mm to 63.5mm (1" to 2.5") on pipe outer diameter

• Wind loading: 127 N at 200 km/h (28.6 lbf at 125 mph)

• Weatherproofing: IPX6

• Operating temperature: -40°C to 60°C (-40°F to 140°F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE
